P0335
DTC P0335: Crankshaft Position (CKP) Sensor Circuit MalfunctionWiring Diagram:
Wiring Diagram
DTC Detecting Condition / Trouble Area:
DTC Detecting Condition and Trouble Area
DTC Confirmation Procedure
NOTE: Check to make sure that the following condition is satisfied when using this "DTC Confirmation Procedure".
- Intake air temp.: -8 °C (18 °F) or higher
- Engine coolant temp.: -8 - 110 °C (18 - 230 °F)
- Altitude (barometric pressure): 2400 m, 8000 ft or less (560 mmHg (75 kPa) or more)
1. Connect scan tool to DLC with ignition switch OFF.
2. Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and run engine at idle speed for 10 sec.
3. Check DTC by using scan tool.
Step 1:

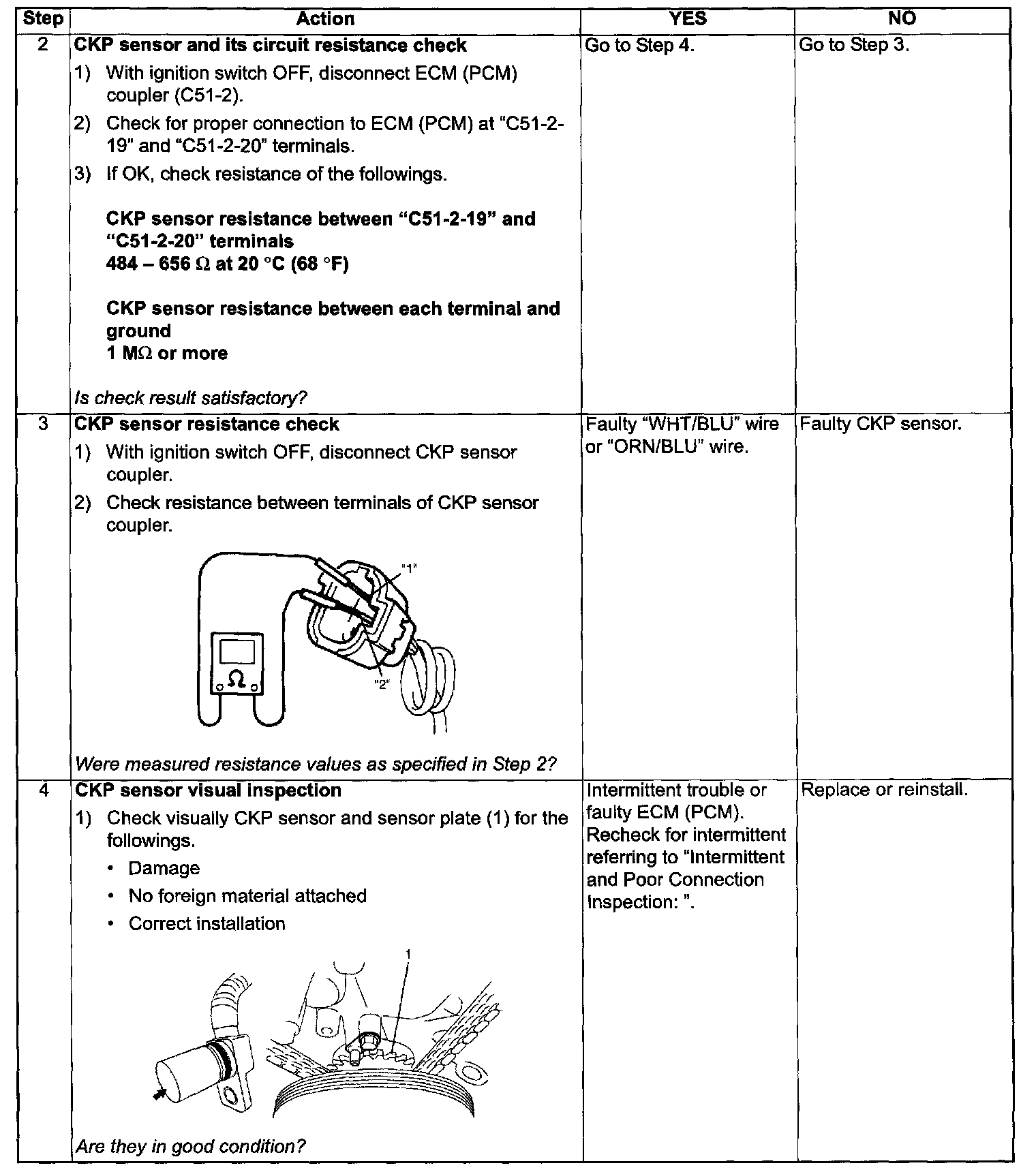

Step 2 - 4:
DTC Troubleshooting
