P0122
DTC P0122: Throttle Position (TP) Circuit Low InputWiring Diagram:
Wiring Diagram
DTC Detecting Condition / Trouble Code:
DTC Detecting Condition and Trouble Area
NOTE: Check to make sure that the following conditions are satisfied when using this "DTC Confirmation Procedure".
- Intake air temp.: -8 °C (18 °F) or higher
- Engine coolant temp.: -8 - 110 °C (18 - 230 °F)
- Altitude barometric pressure: 2400 m, 8000 ft or less (560 mmHg (75 kPa) or more)
DTC Confirmation Procedure
1. Connect scan tool to DLC with ignition switch OFF.
2. Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and run engine at idle speed for 10 sec. or more.
3. Check DTC by using scan tool.
Step 1 - 2:

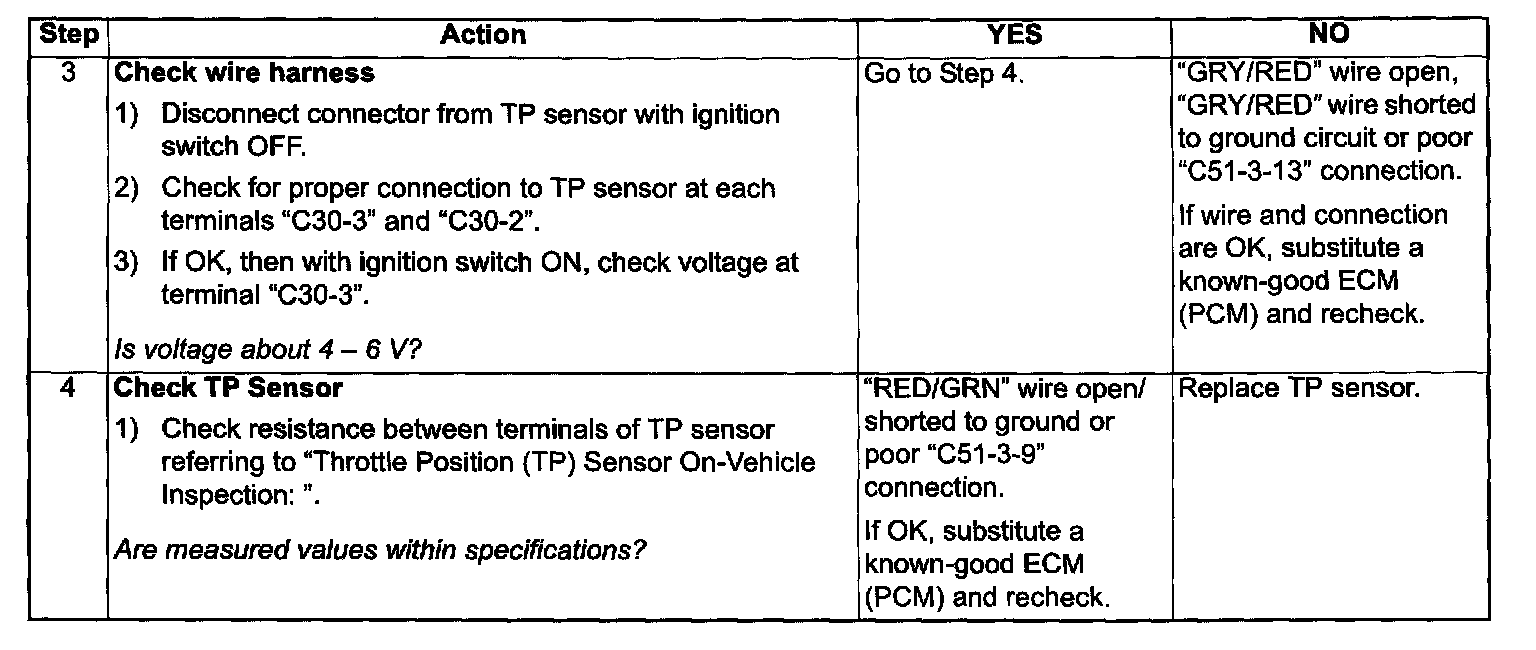

Step 3 - 4:
DTC Troubleshooting
