P0118

DTC P0118: Engine Coolant Temp. (ECT) Circuit High Input

Wiring Diagram:

Wiring Diagram

DTC Detecting Condition / Trouble Code:

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure
1. Connect scan tool to DLC with ignition switch OFF.
2. Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and run engine at idle speed for 10 sec. or more.
3. Check DTC by using scan tool.

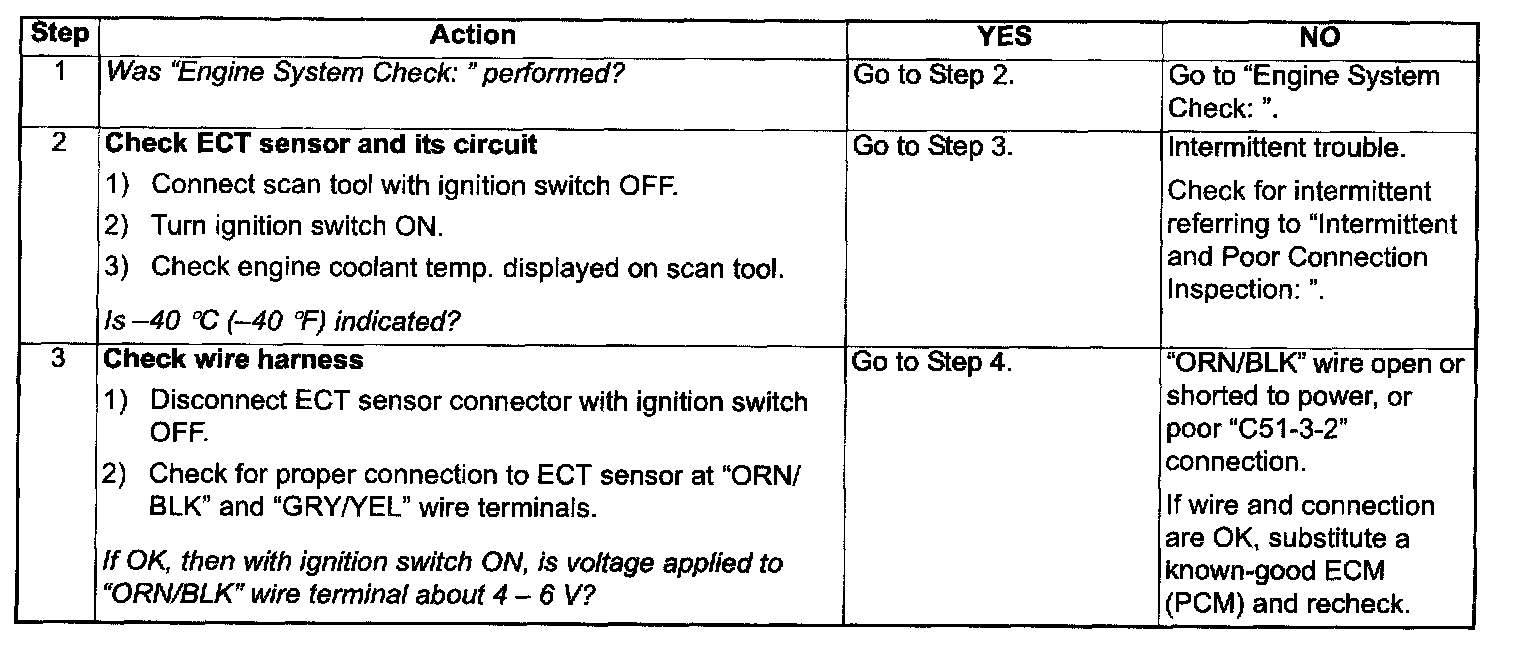

Step 1 - 3:

Step 4:

DTC Troubleshooting
