P0037

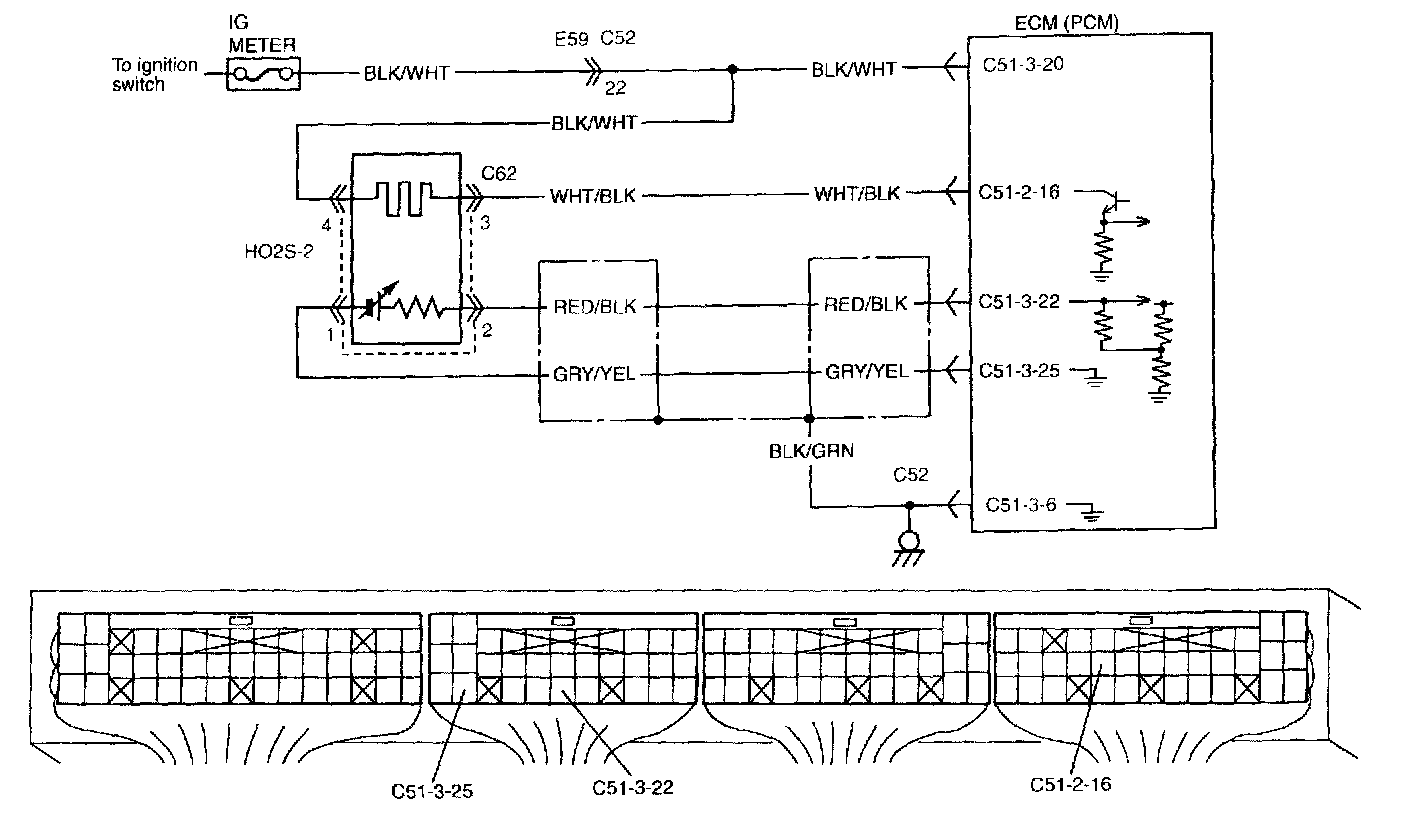

DTC P0037: HO2S-2 (Bank 1) Heater Circuit LowWiring Diagram:
Wiring Diagram
DTC Detecting Condition / Trouble Code:
DTC Detecting Condition and Trouble Area
DTC Confirmation Procedure
WARNING:
- When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
- Road test should be carried out with 2 persons, a driver and a tester, on a level road.
NOTE: Check to make sure that the following conditions are satisfied when using this "DTC Confirmation Procedure".
- Intake air temp.: -8 °C (18 °F) or higher
- Engine coolant temp.: -8 - 110 °C (18 - 230 °F)
- Altitude (barometric pressure): 2400 m, 8000 ft or less (560 mmHg (75 kPa) or more)
1. Connect scan tool with ignition switch OFF.
2. Turn ON ignition switch and clear DTC, pending DTC and freeze frame data in ECM memory by using scan tool and start engine.
3. Increase vehicle speed to 50 - 60 km/h (30 - 40 mph).
4. Keep driving above vehicle speed for 5 min. (Change of vehicle speed is permitted in this step).
5. Stop vehicle and check if pending DTC exists by using scan tool. If not, check if oxygen sensor heater monitoring test has completed by using scan tool. If not in both of above checks (i.e., no pending DTC and oxygen sensor heater monitoring test not completed), check vehicle conditions (environmental) and repeat Steps 3) through 5).

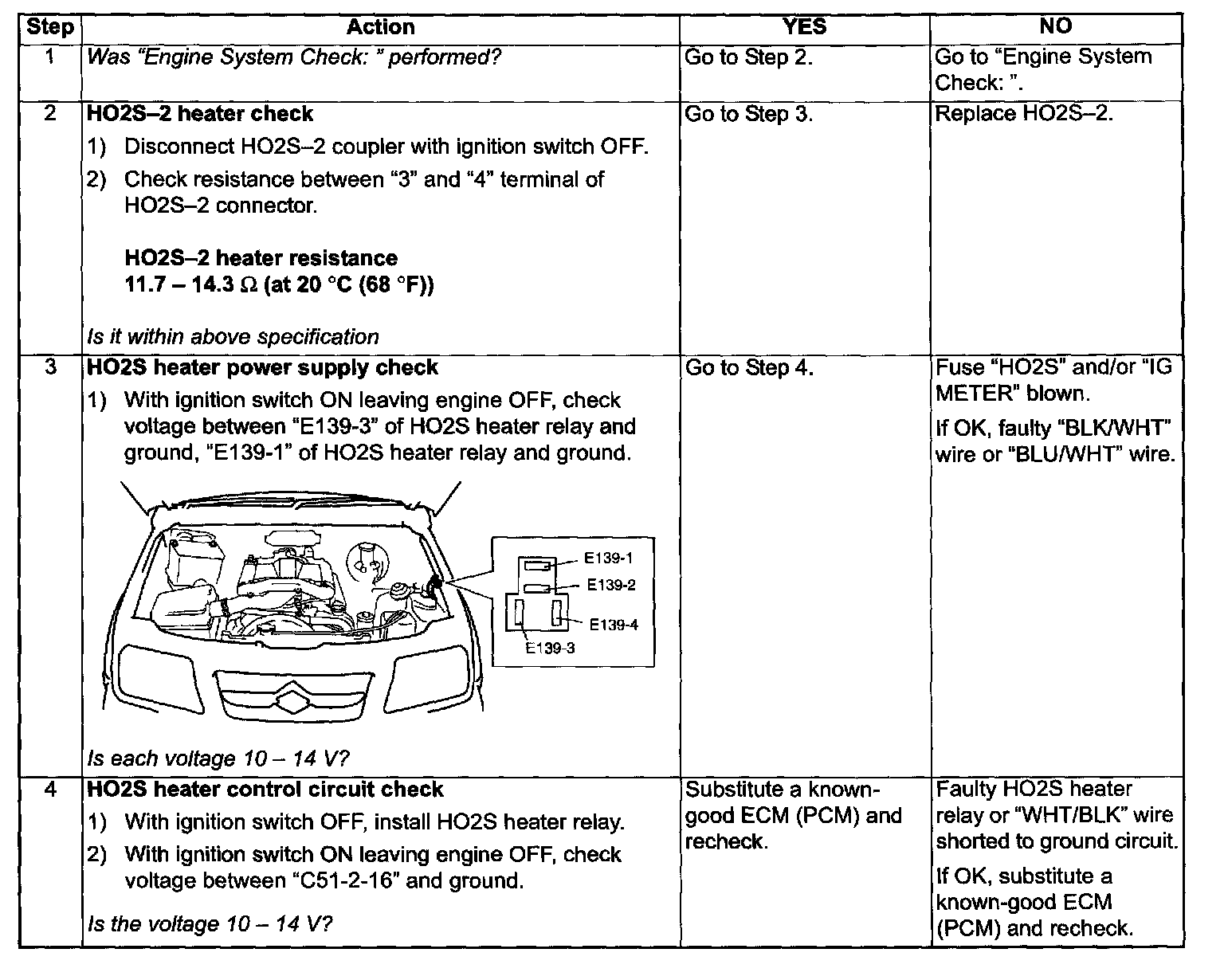

Step 1 - 4:
DTC Troubleshooting
