C1015

DTC C1015 (15): G Sensor Circuit and 4WD Lamp Circuit






DTC Detecting Condition
G sensor
While a vehicle is at stop or running, if the potential difference between the sensor signal terminal "E136-11" and the sensor ground terminal "E136-13" is not within the specified voltage value, or if the signal voltage while at a stop does not vary from that while running, this DTC is set.
Therefore, this DTC may be set when a vehicle is lifted up and its wheel(s) is turned. In such case, clear the DTC and check again. When G sensor is installed to 2WD vehicle, this DTC is set.

4WD lamp
When 4WD lamp circuit open or shorted, this DTC is set.

DTC Troubleshooting





Part 1 of 2

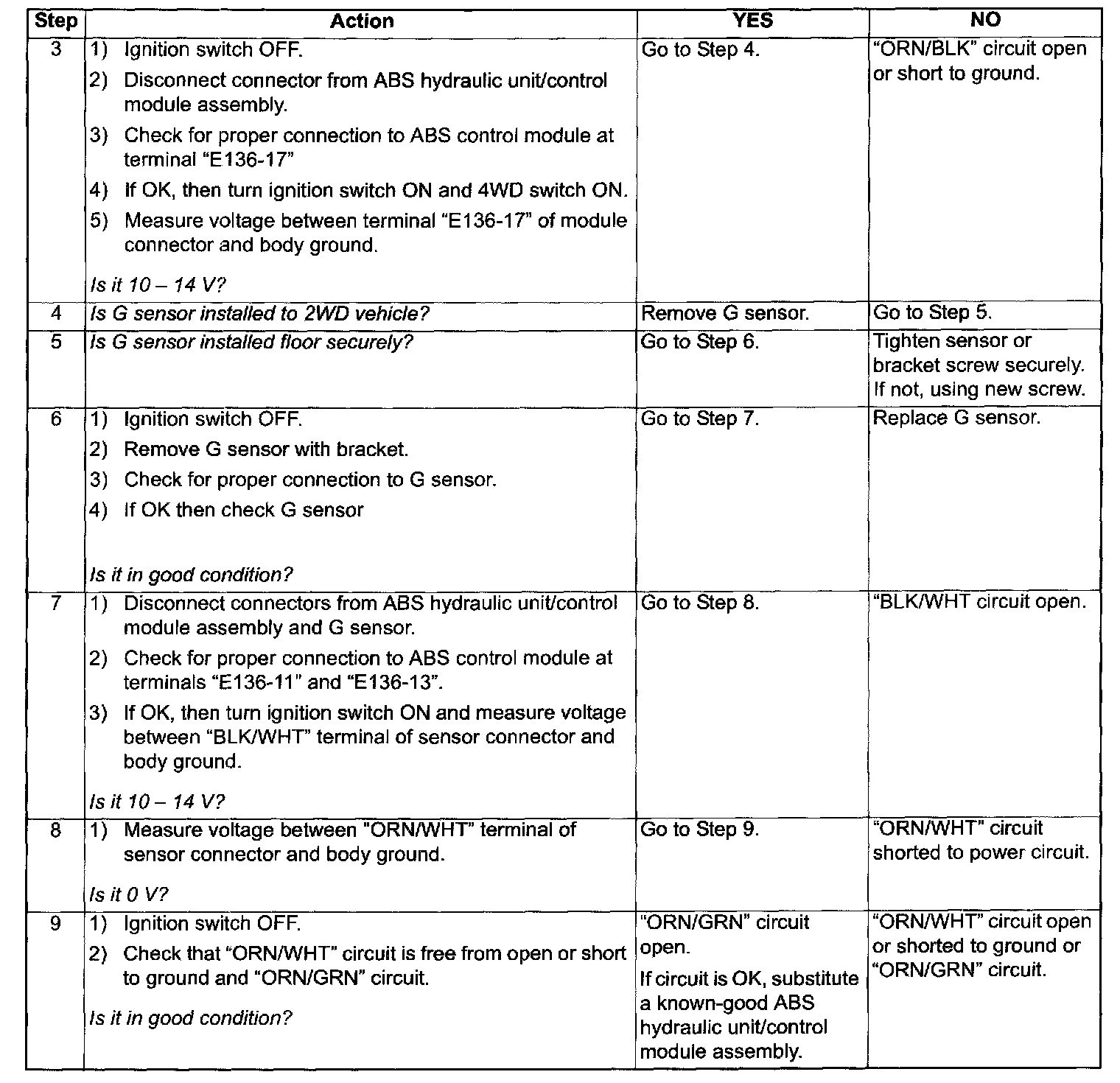

Part 2 of 2
