Description & Operation: Notes

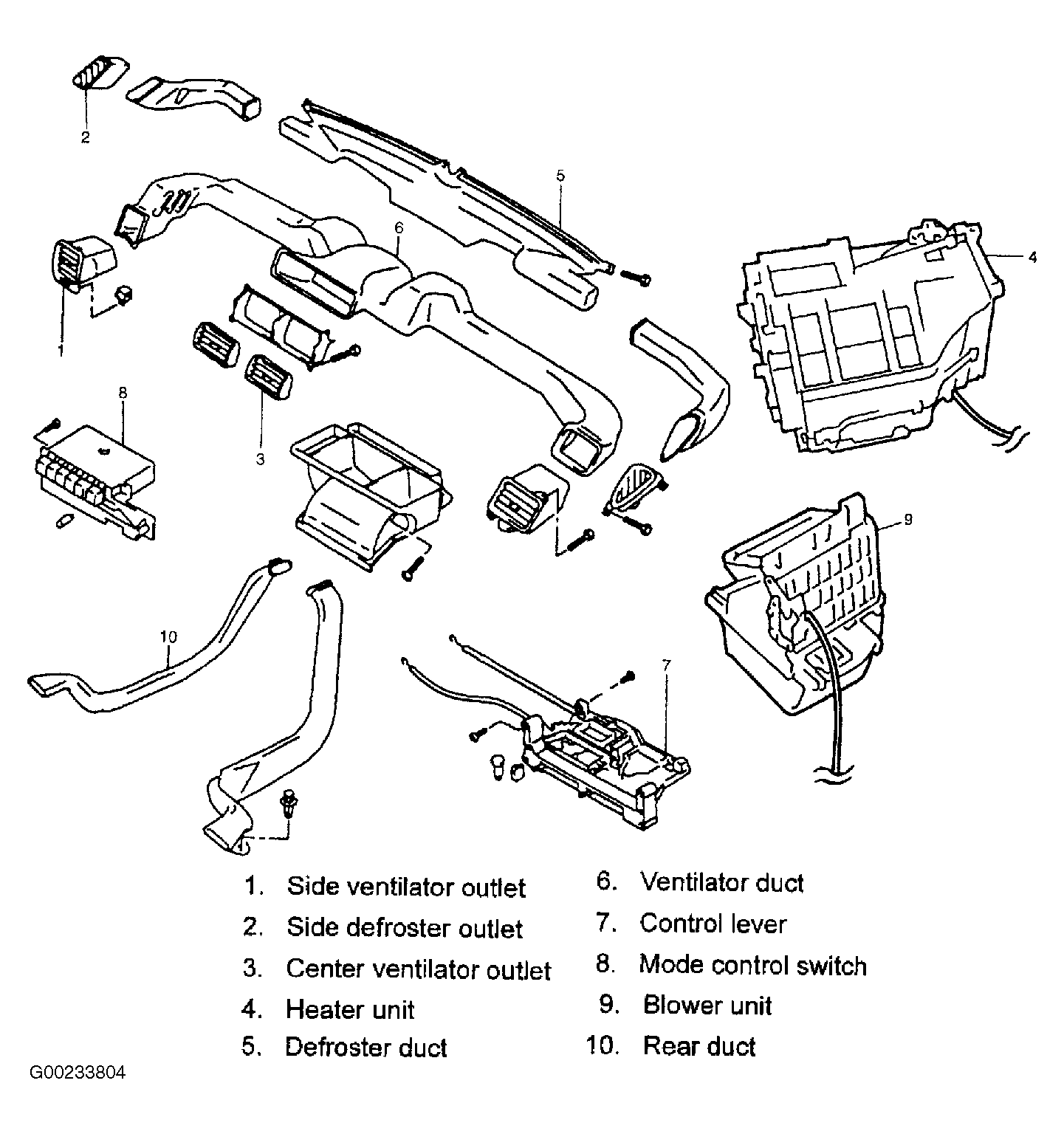

The heater is an "in and out" air selectable-type hot water heater, is so constructed that it is possible to assure an agreeable ventilation at all times by providing the ventilator air outlets at the center and both sides (right and left) of the instrument panel, the hot air outlet at a place close to the feet, and the defroster air outlets at places, right and left, along the windshield glass. See Figure.

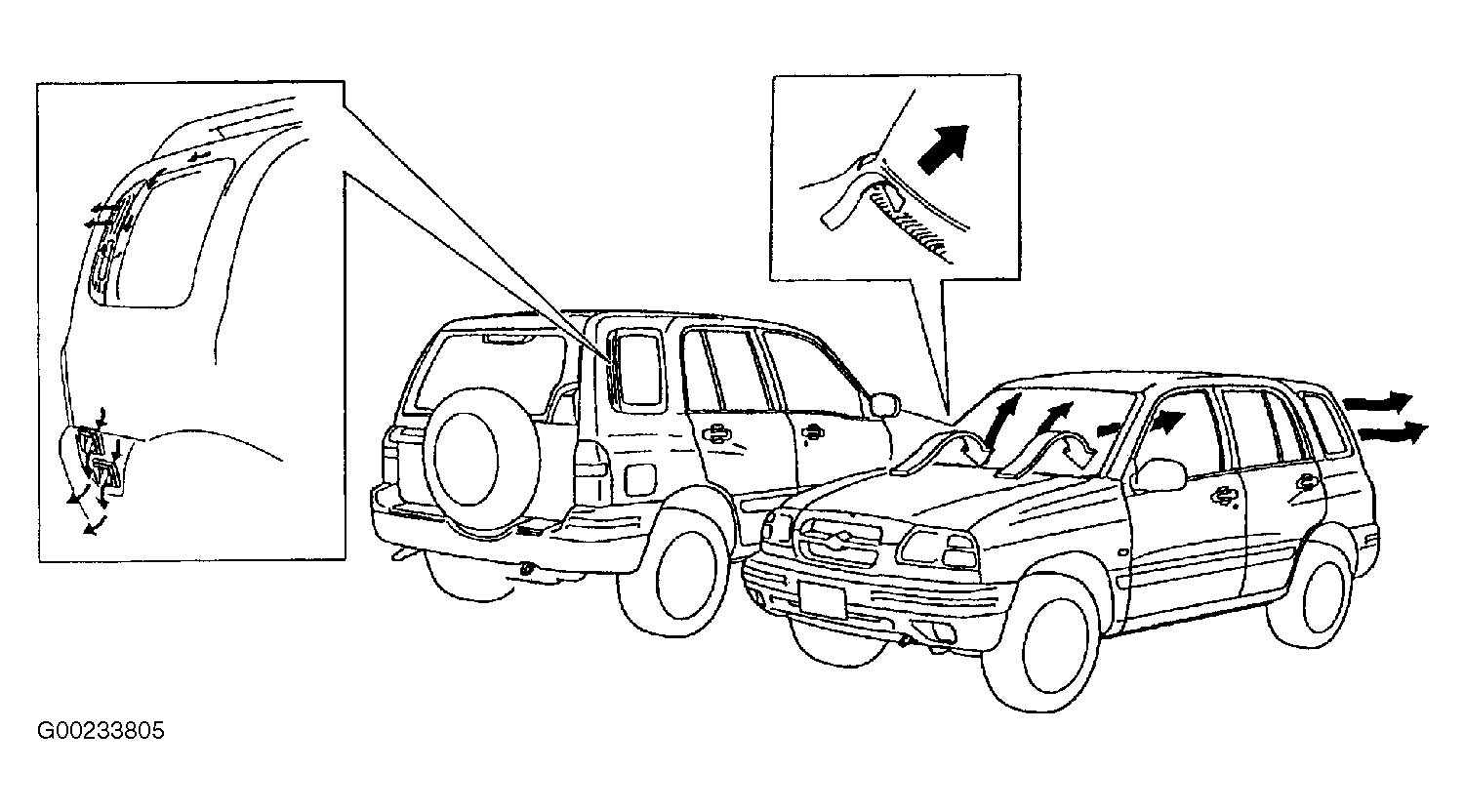

The body ventilation system of this vehicle has a fresh air intake located at the cowl top panel. When fresh air intake control lever is at FRESH AIR position, ventilating air is drawn into the interior from the cowl center garnish and drawn out from the ventilator outlet provided at each side body outer panel (both right and left side). See Figure.

System integrates heating and air conditioning. Fresh air is used for heater operation, and fresh air or recirculated air is used for air conditioner operation. System combines heated and cooled air in proportion to temperature settings on A/C-heater control panel. System components include condenser, receiver-drier, compressor, evaporator, system protection devices and refrigerant lines.
