Removal & Installation
WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

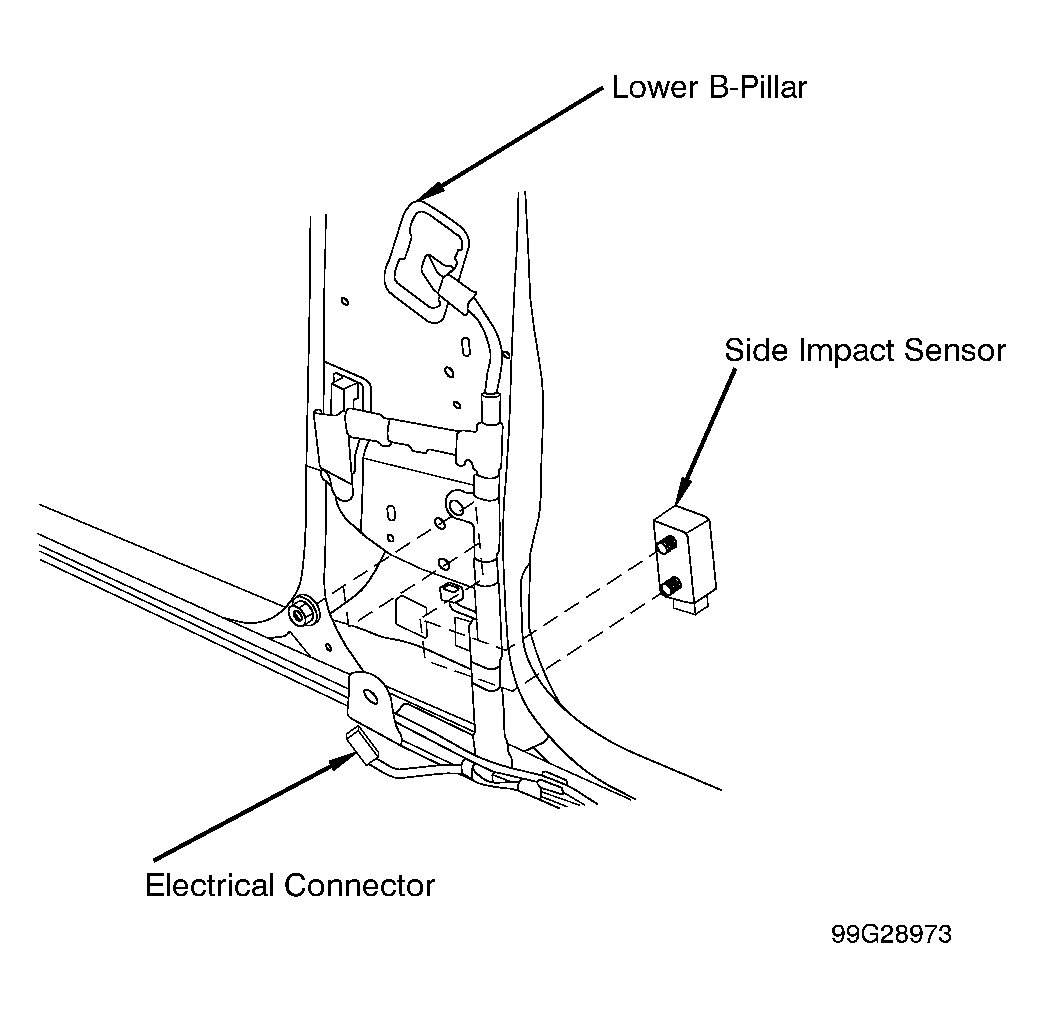

- Remove applicable B-pillar trim panel. Remove seat belt pretensioner. See SEAT BELT PRETENSIONER . Remove side impact sensor nuts. See Fig 1. Disconnect side impact sensor electrical connector. Remove side impact sensor.
- To install, reverse removal procedure. Tighten side impact sensor nuts and seat belt pretensioner anchor bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.
