Rear Door Lock: Removal

  1. Remove door trim and door sealing cover.
  2. Remove door opening control rod (2) and door lock control rod (1). See Fig 1 .
  3. Remove lock assembly.

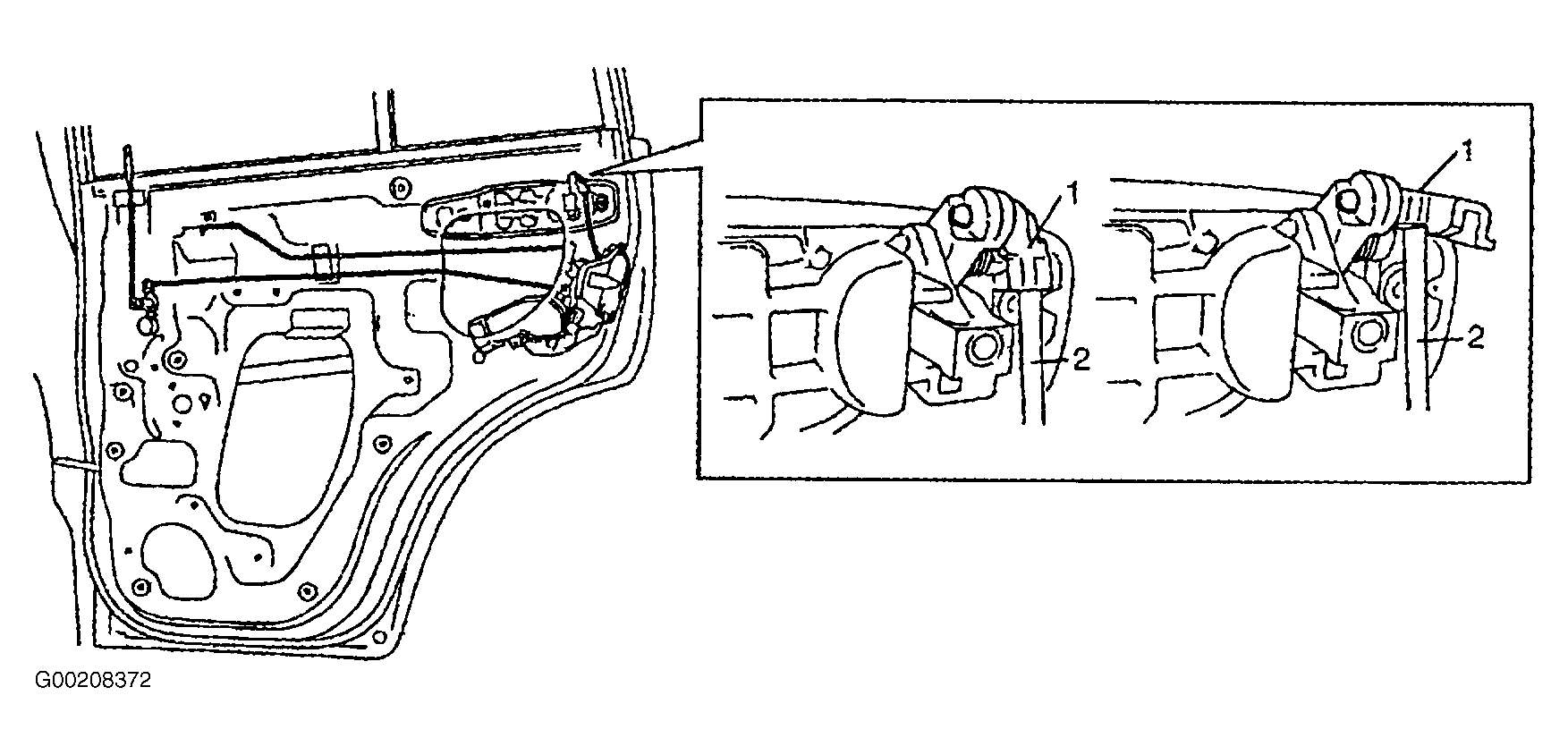

Fig 1: Removing Door Opening & Lock Control Rod
G00208372Courtesy of SUZUKI OF AMERICA CORP.
