Back Door/Rear Gate Lock: Installation
Reverse removal procedure to install back door lock assembly noting the following points.
- Back door/rear gate latch striker. Adjust back door/rear gate latch striker so that its center aligns with center groove in back door/rear gate latch base. To adjust back door/rear gate latch and striker with each other, insert proper number of shims (1) below the bottom of striker. See Fig 1 .

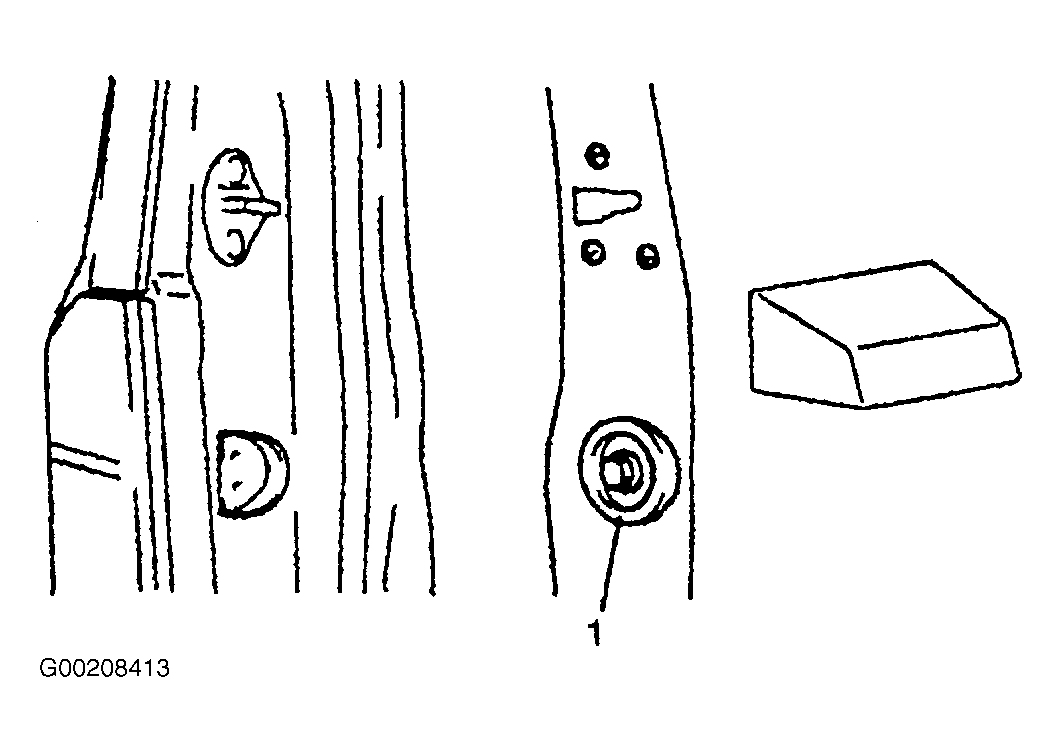

- Back door/rear gate rubber cushion. Move rubber cushion (1) installed at left side of back door/rear gate to align it with its guide. See Fig 2 .
