Removal & Installation

For removal and installation of select cable, see Fig 1 .

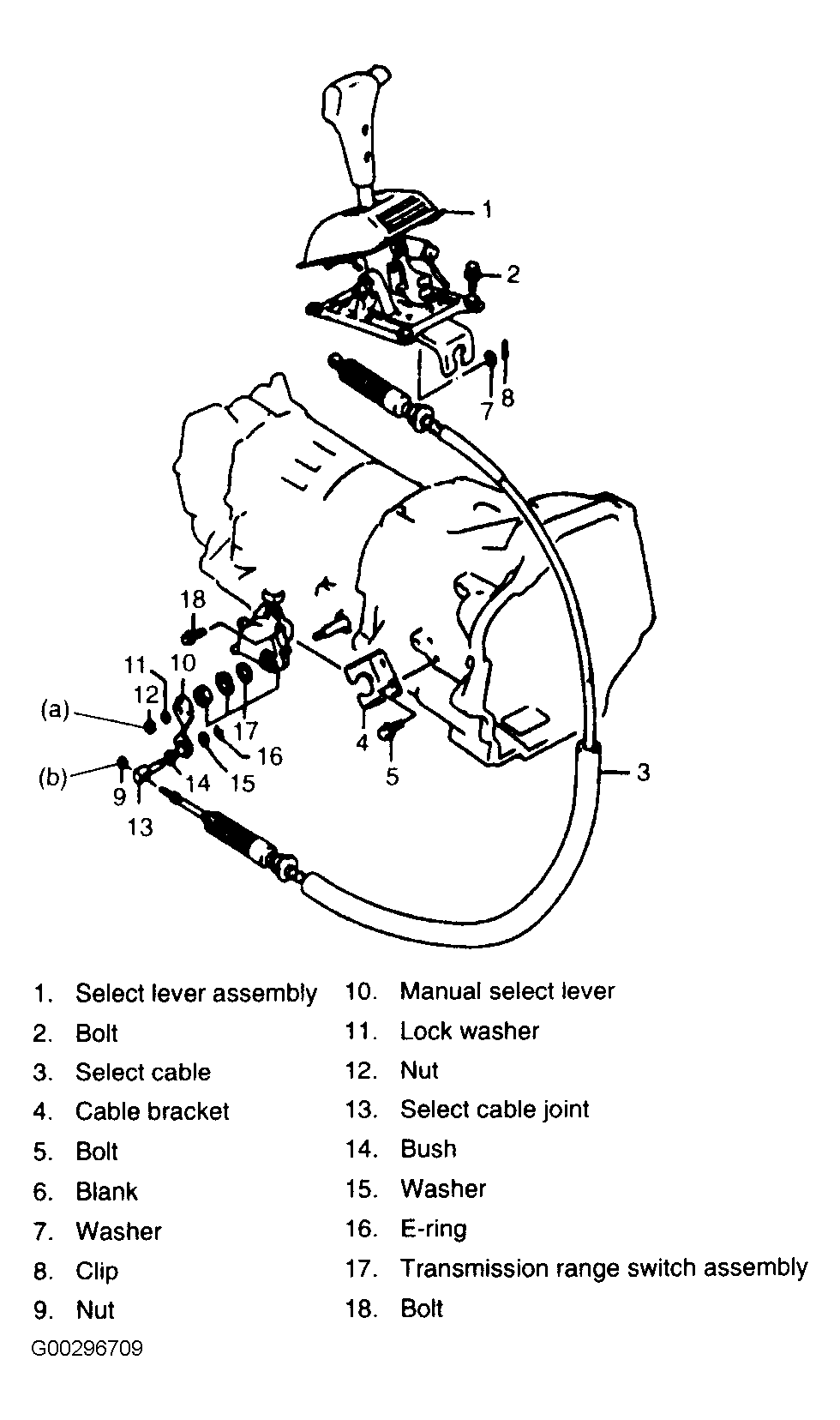

Fig 1: Exploded View Of Select Cable
G00296709Courtesy of SUZUKI OF AMERICA CORP.
