Fuel Pressure Check

System Diagram:






Special tool
(A): 09912 - 58441
(B): 09912 - 58431
(C): 09919 - 46010

Inspection

NOTE: Before using the following flow table, check to make sure that battery voltage is higher than 11 V. If battery voltage is low, pressure becomes lower than specification even if fuel pump and line are in good condition.

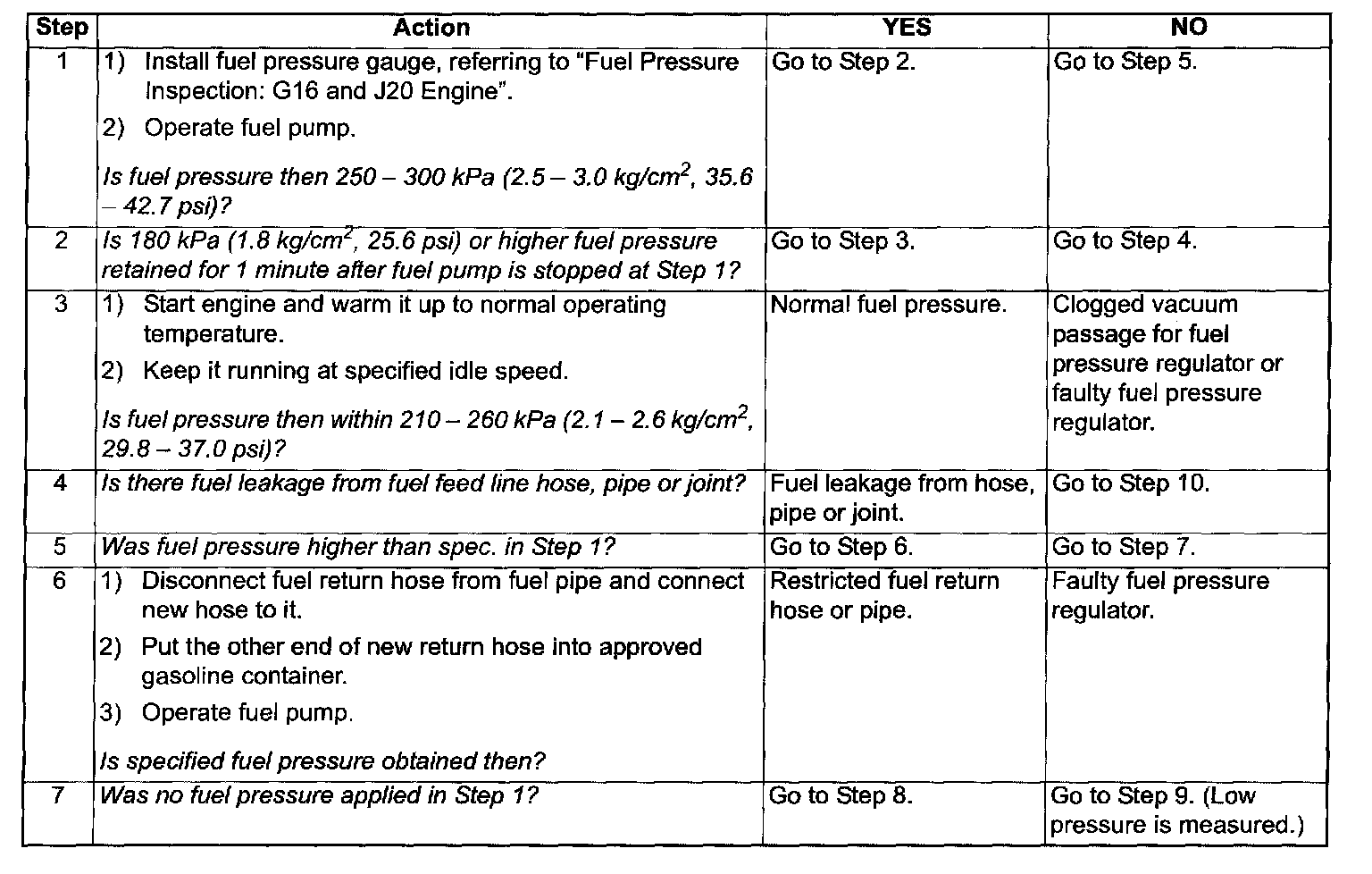

Step 1 - 7:

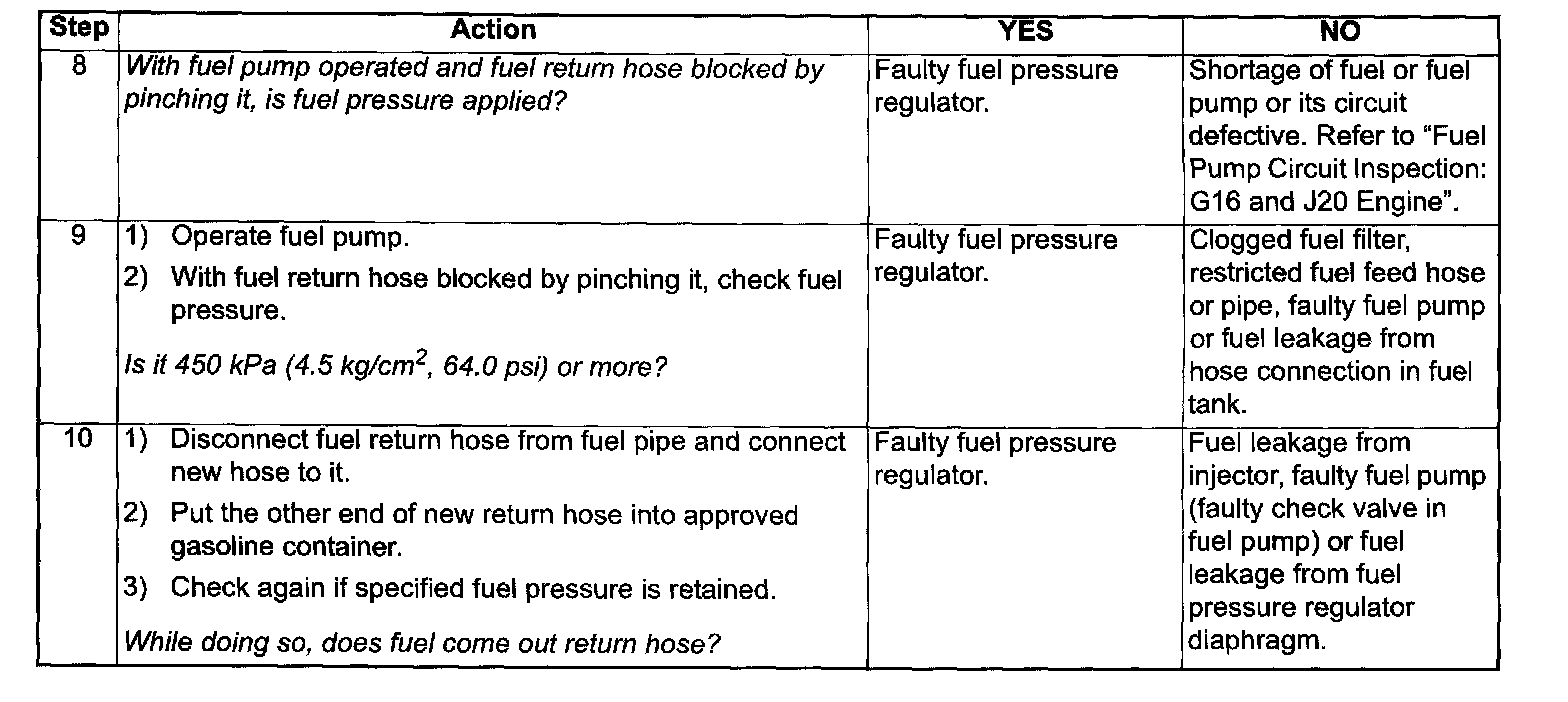

Step 8 - 10:
