Symptom Charts

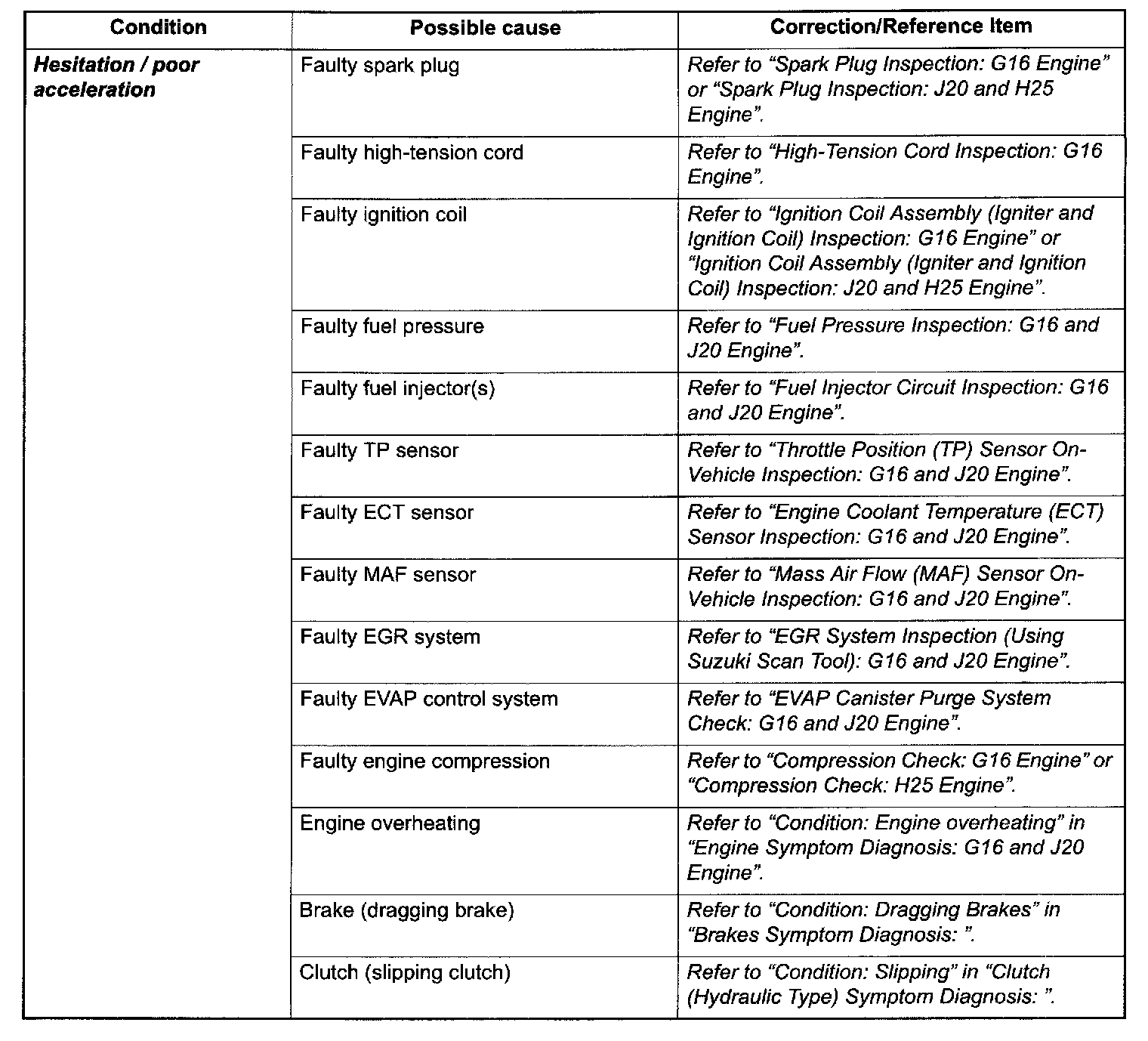

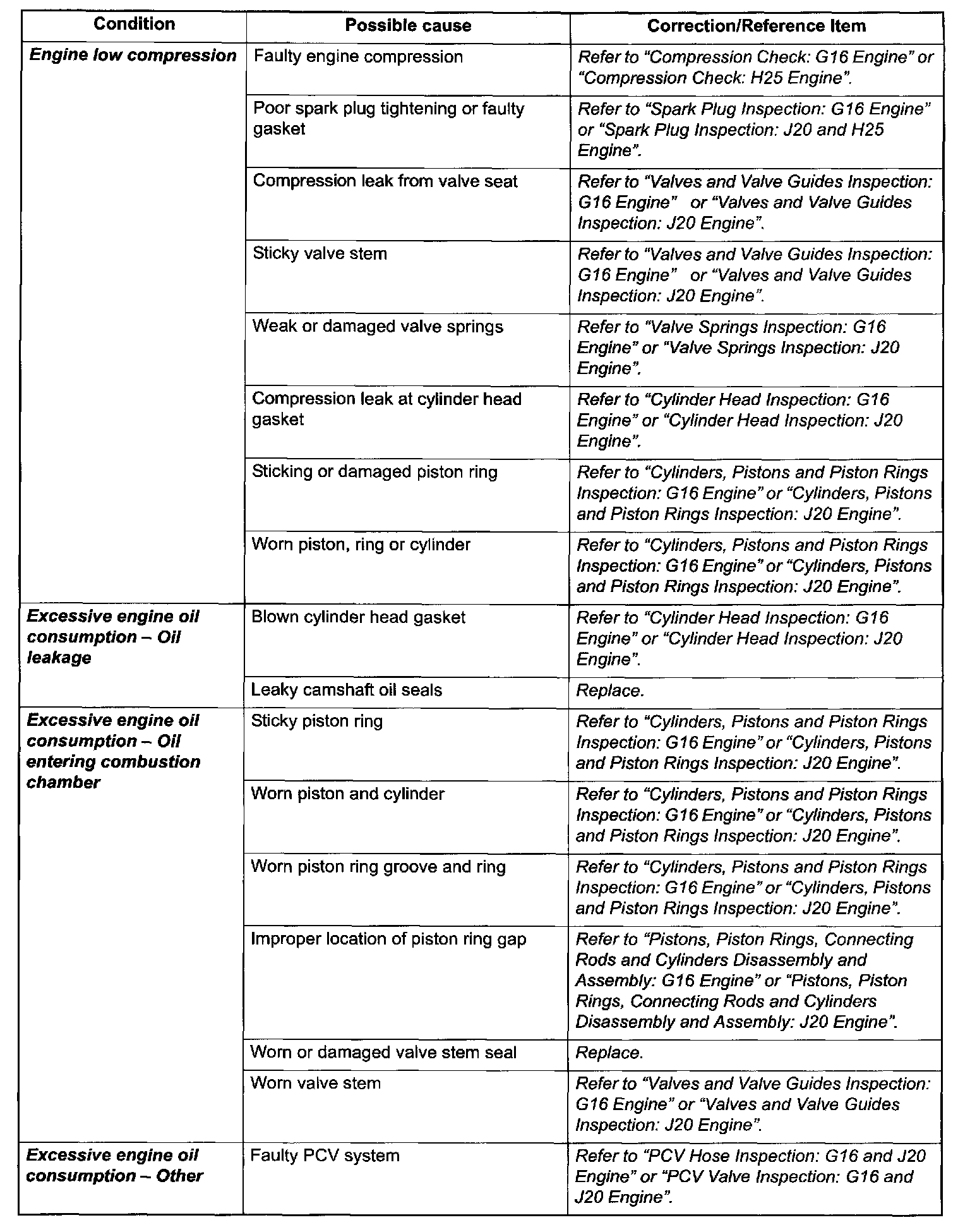

Engine Symptom Diagnosis Part 1:

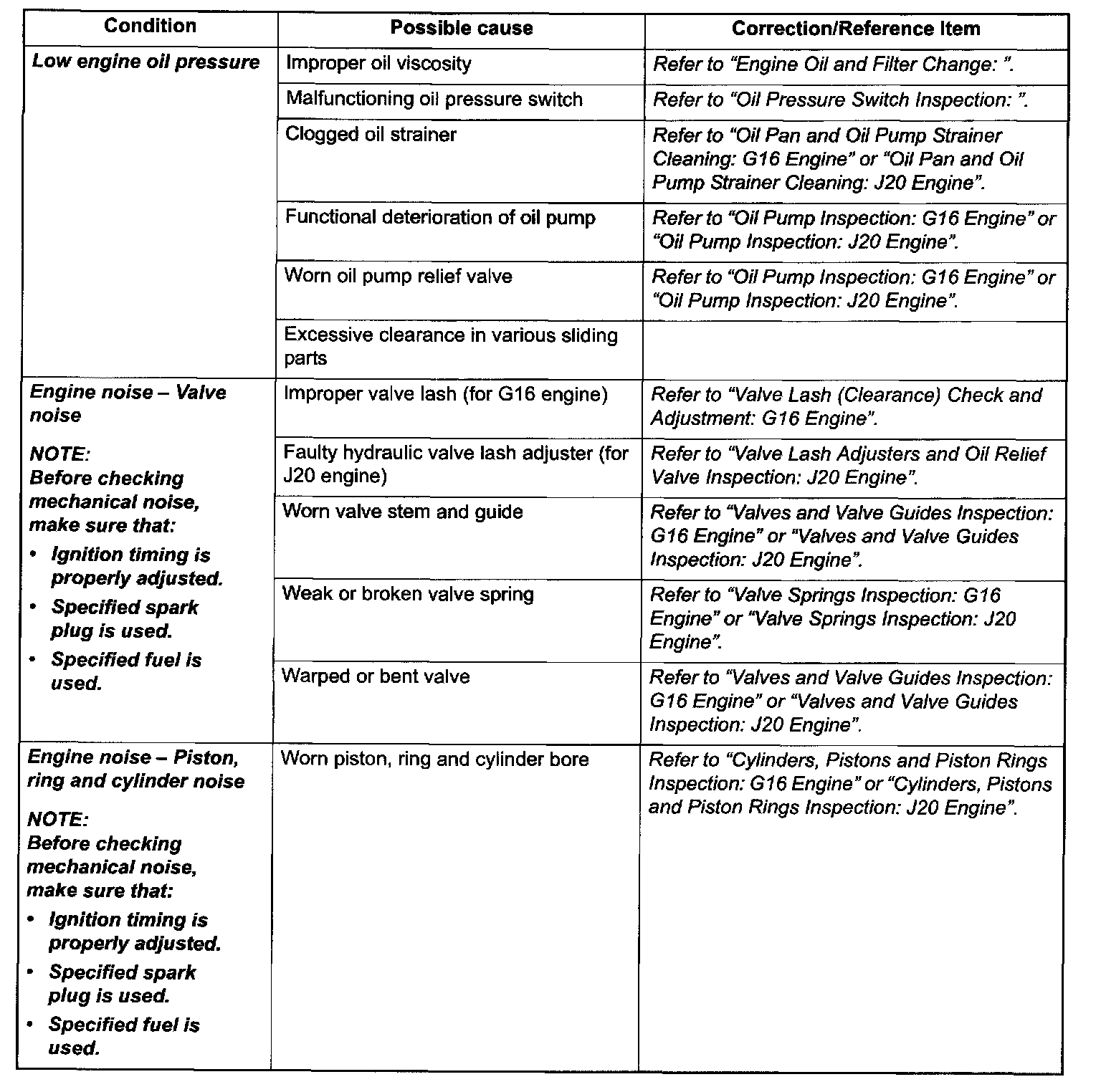

Engine Symptom Diagnosis Part 2:

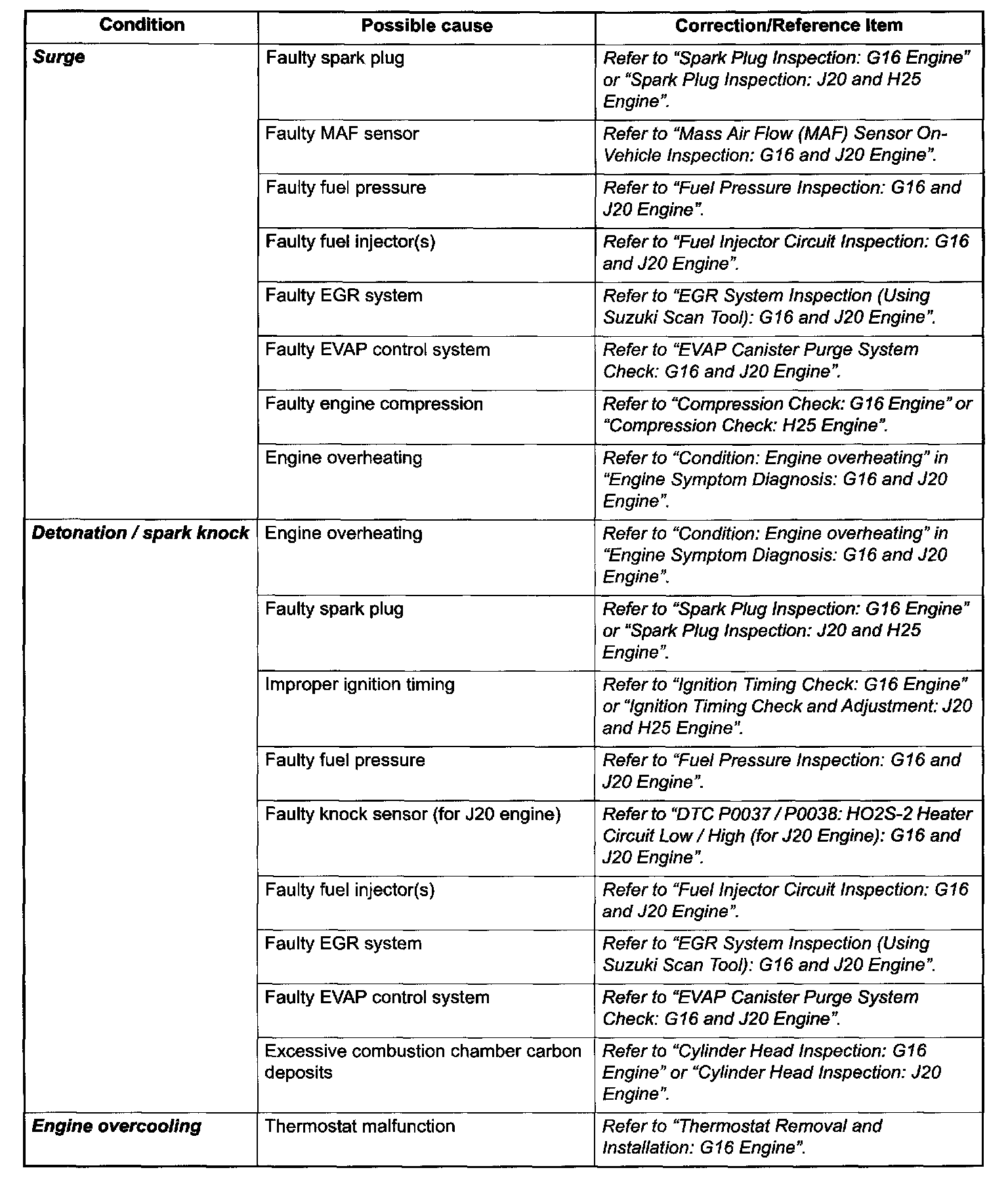

Engine Symptom Diagnosis Part 3:

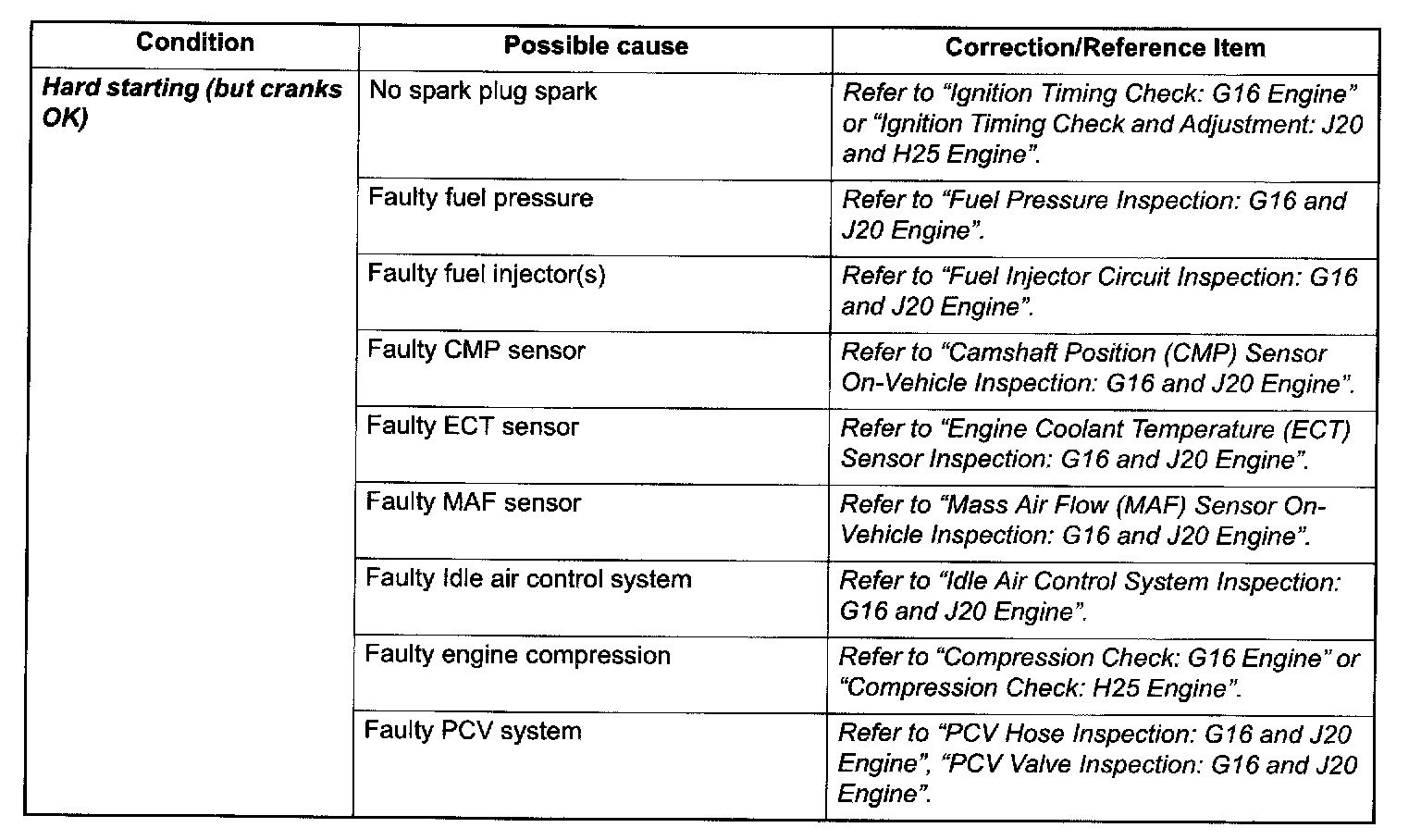

Engine Symptom Diagnosis Part 4:

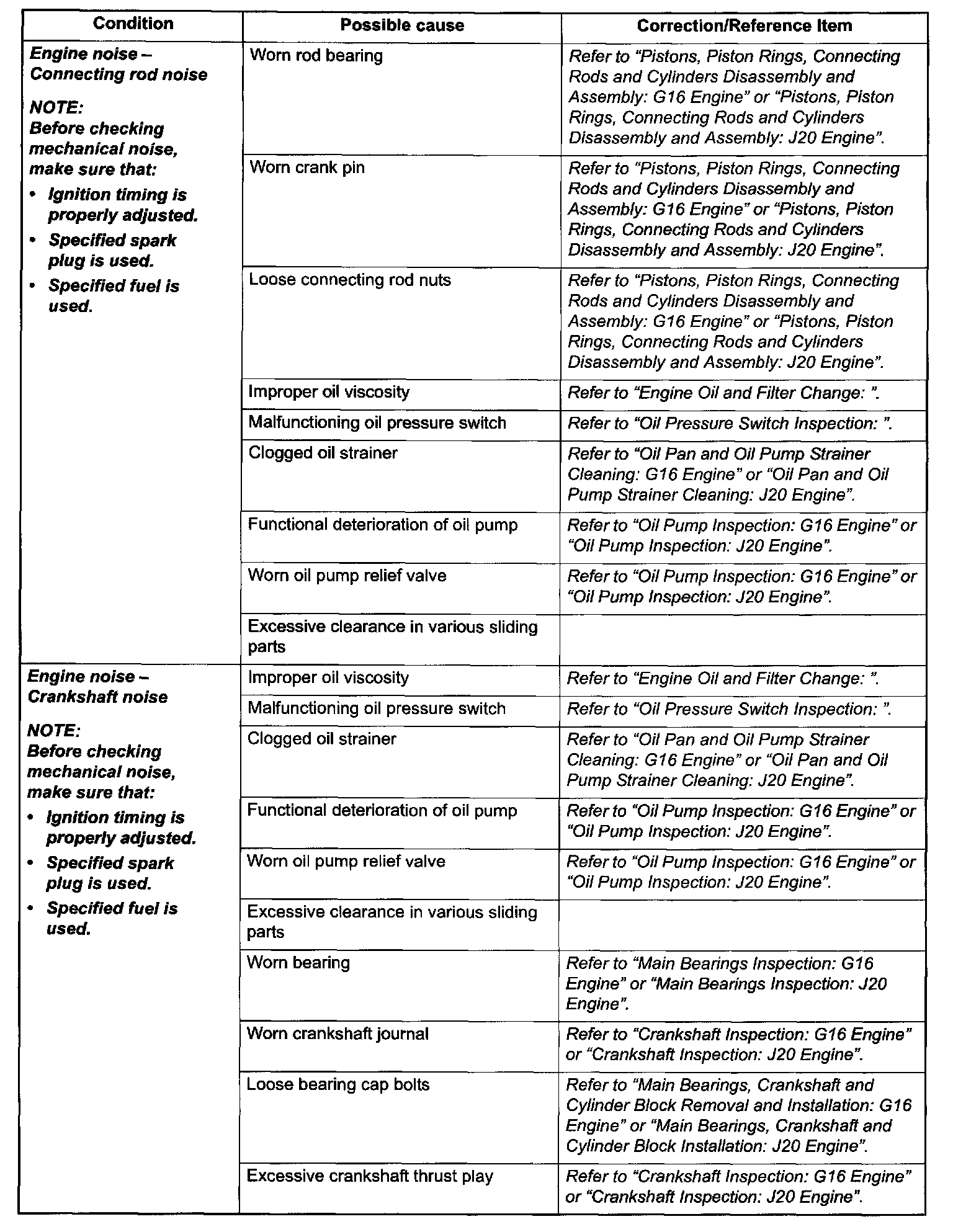

Engine Symptom Diagnosis Part 5:

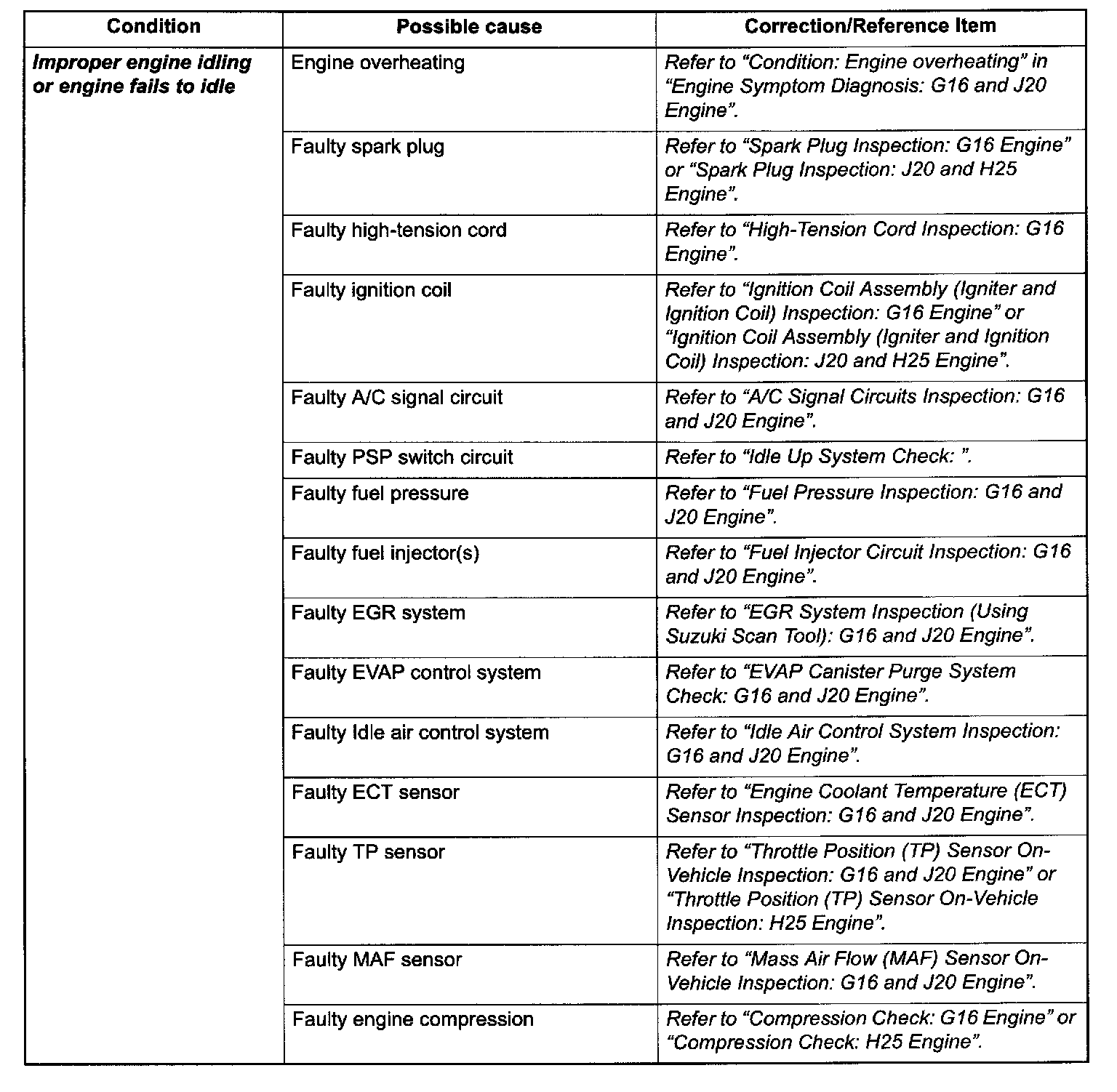

Engine Symptom Diagnosis Part 6:

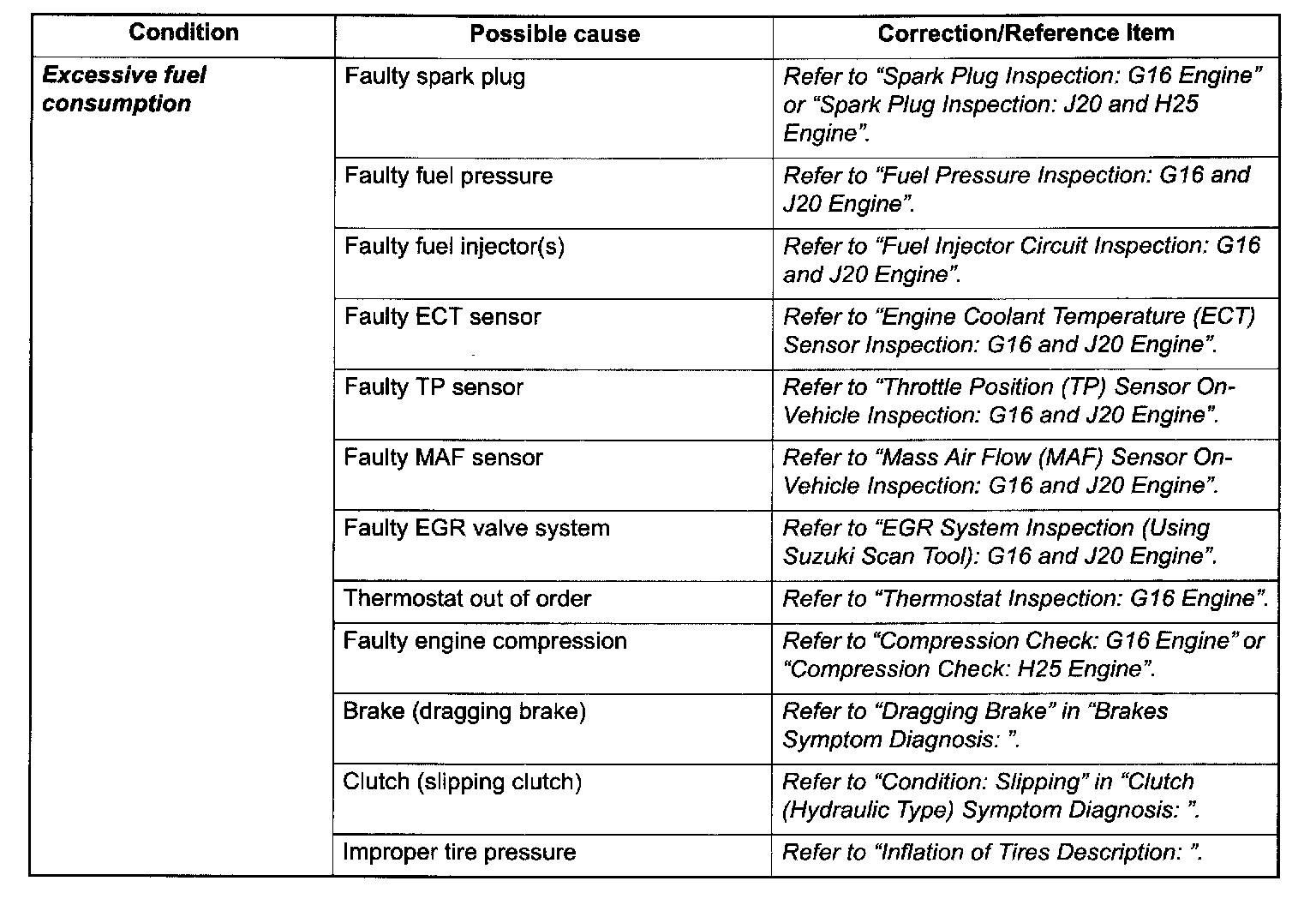

Engine Symptom Diagnosis Part 7:

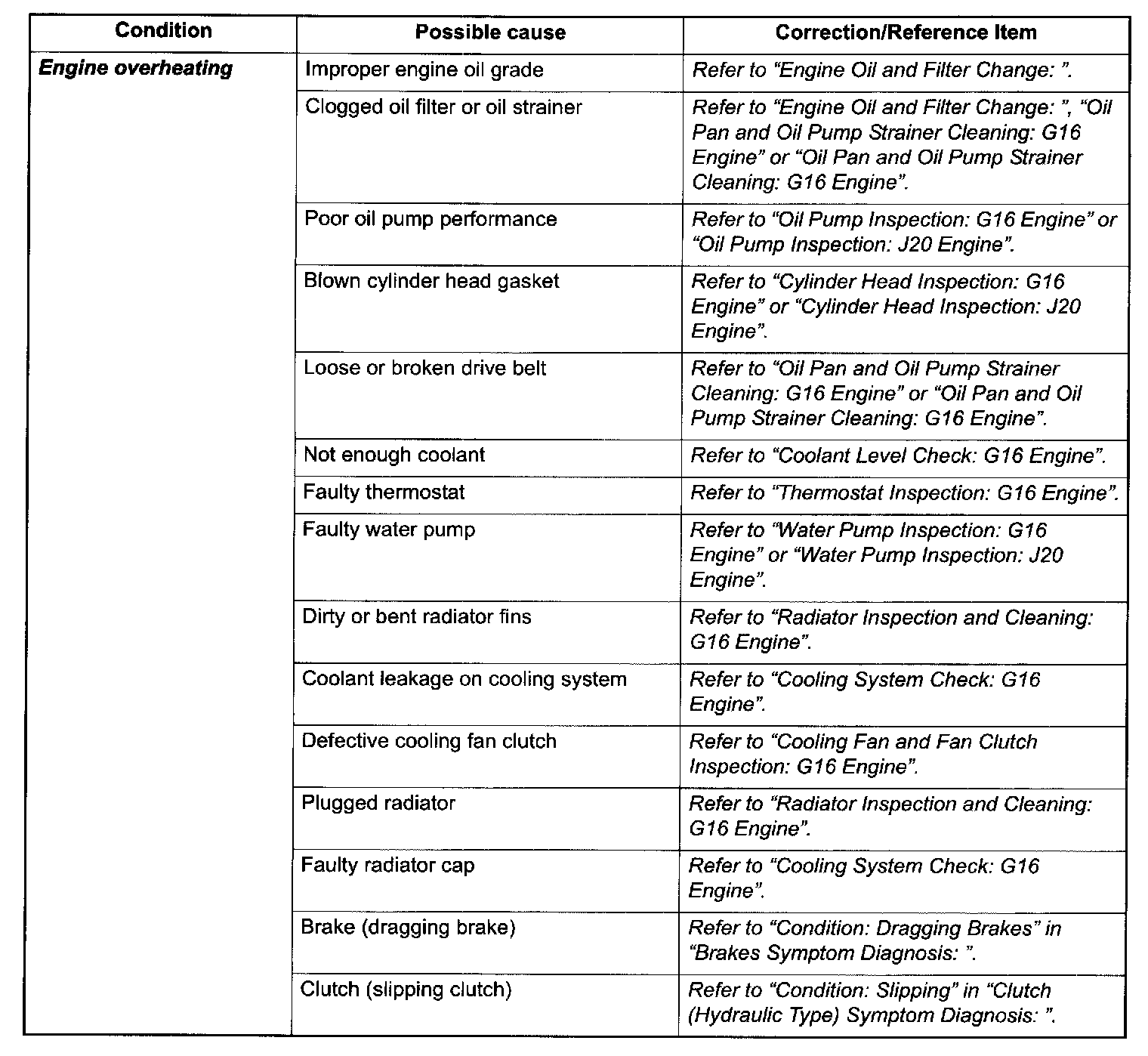

Engine Symptom Diagnosis Part 8:

Engine Symptom Diagnosis Part 9:
