Vehicle Without Cruise Control Module

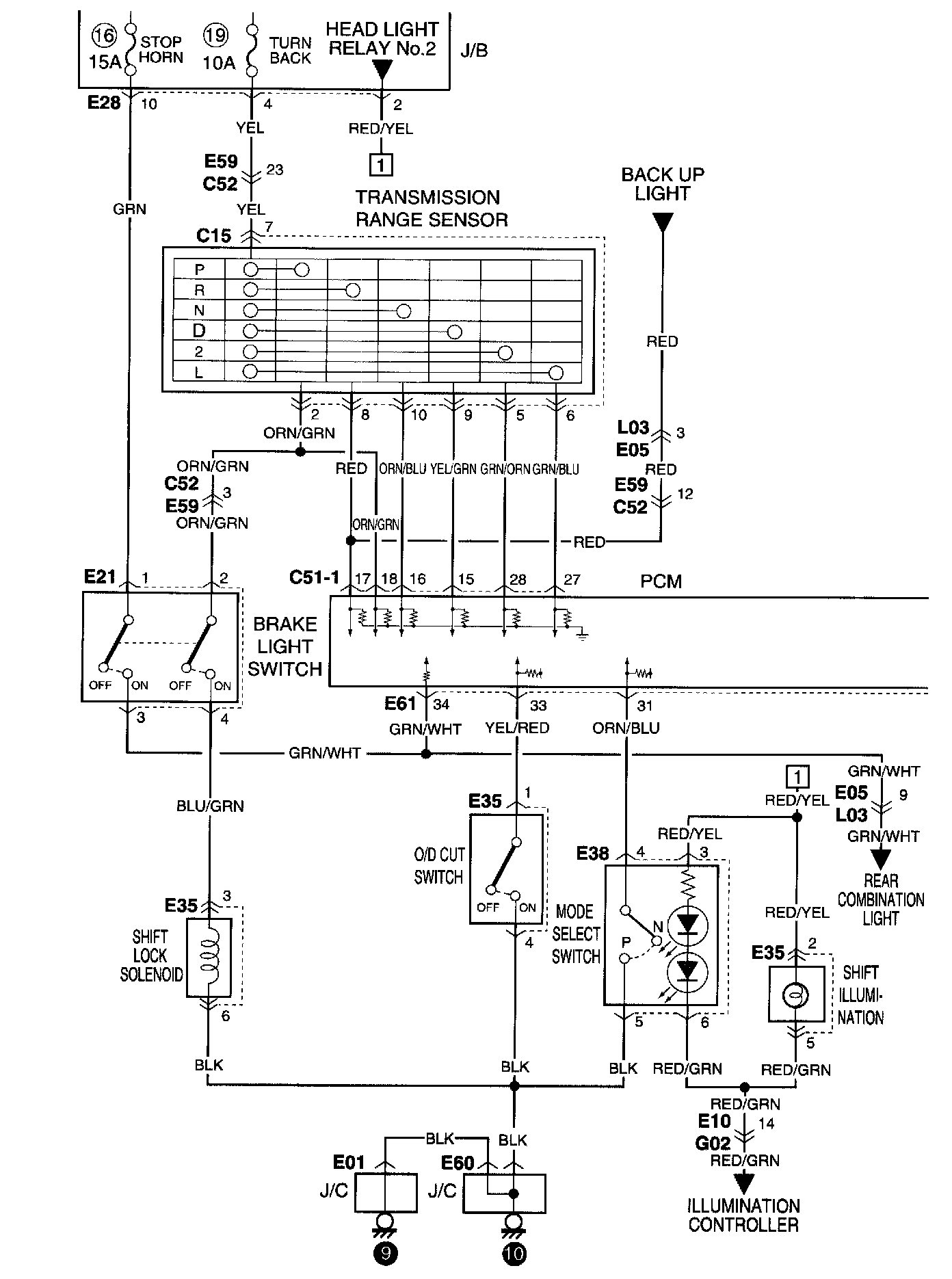

A/T Control System Circuit Diagram-Vehicle Without Cruise Control Module 1:

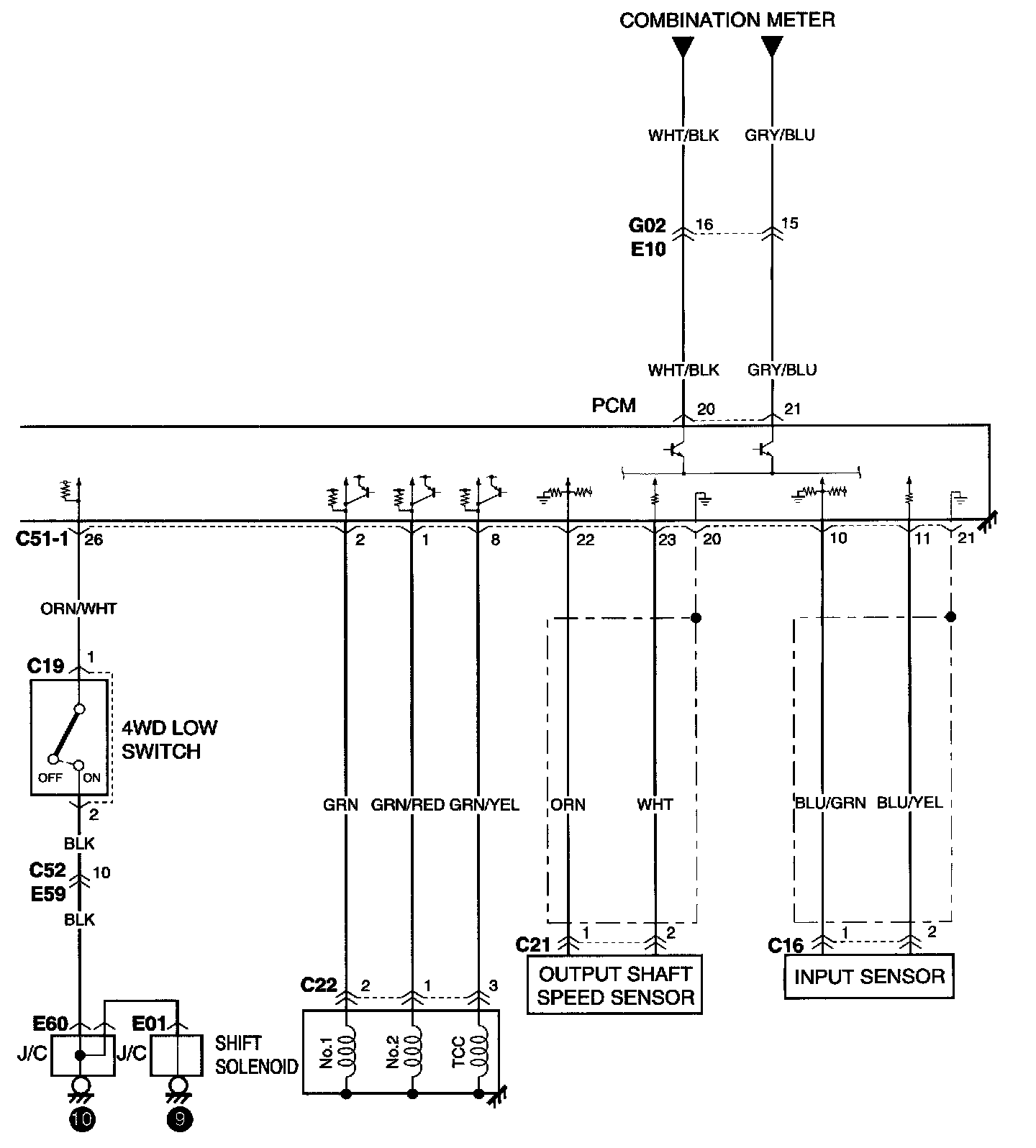

A/T Control System - Vehicle Without Cruise Control Module - Part 2:
