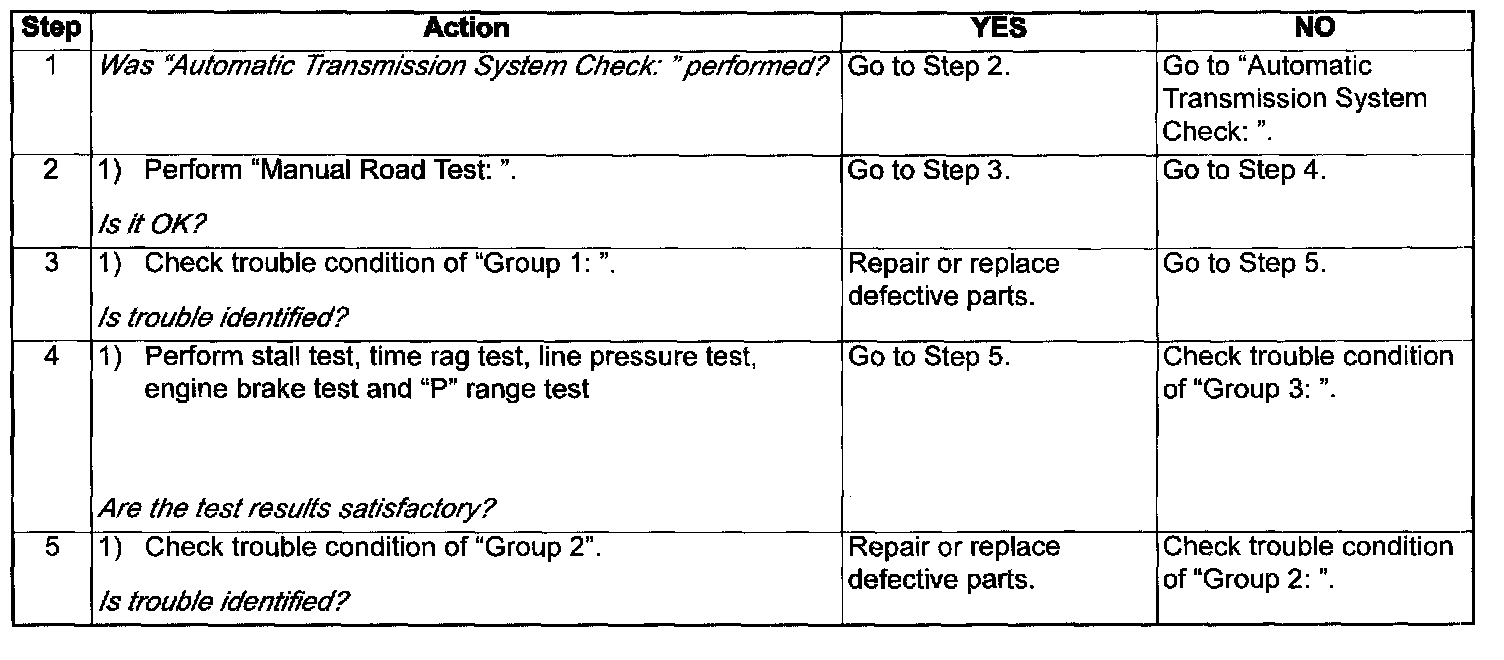

Diagnostic Flow Chart

A/T Basic Check





This inspection is important for troubleshooting when PCM has detected no DTC and no abnormality has been noted in visual inspection. Follow diagnostic flow carefully.





Group 1

Group 2





Transmission fluid





Running condition








Gear shift

Group 3





Transmission fluid





Running condition





Gear shift





Abnormal noise
