Symptom Charts

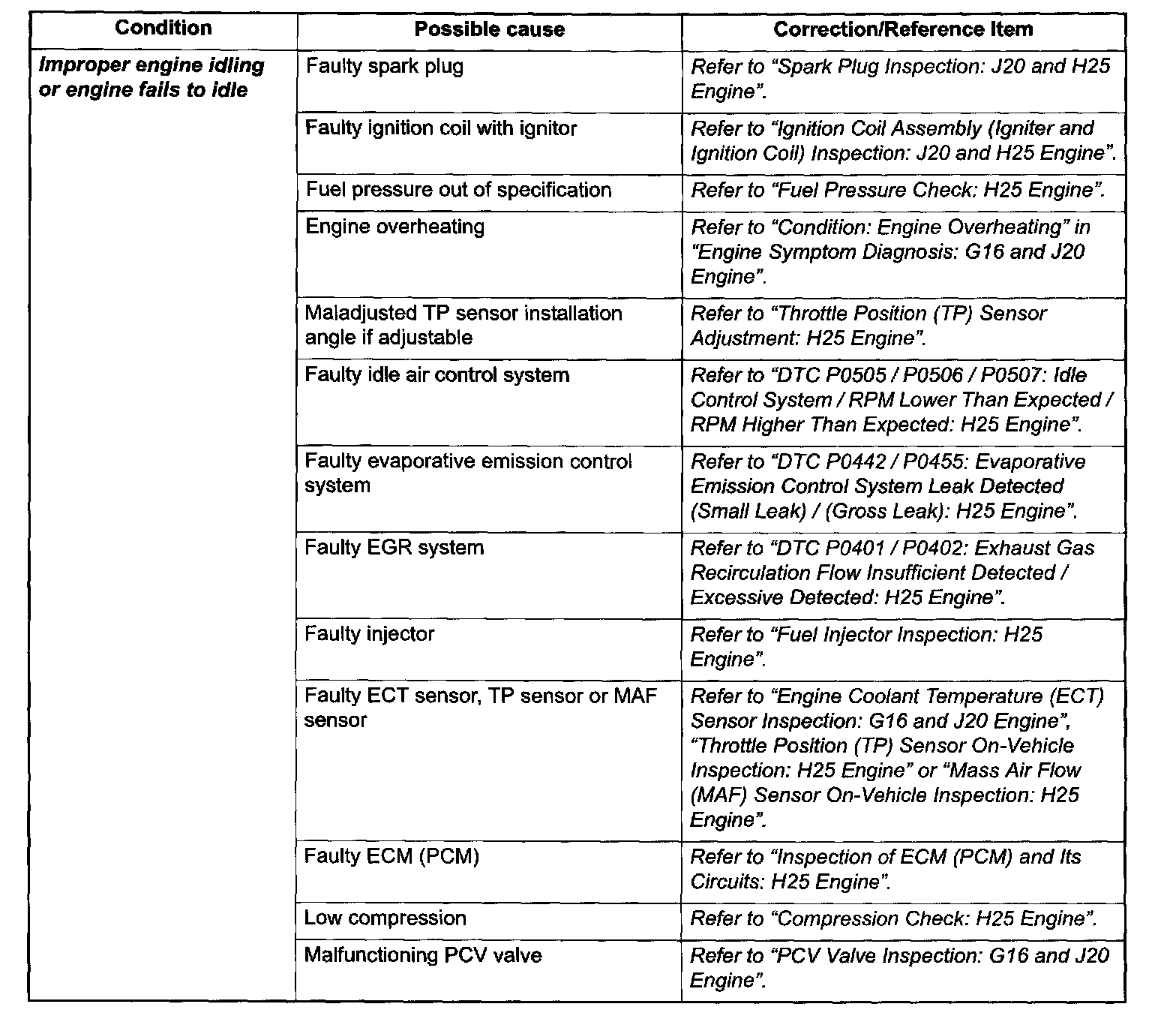

Engine Symptom Diagnosis Part 1:

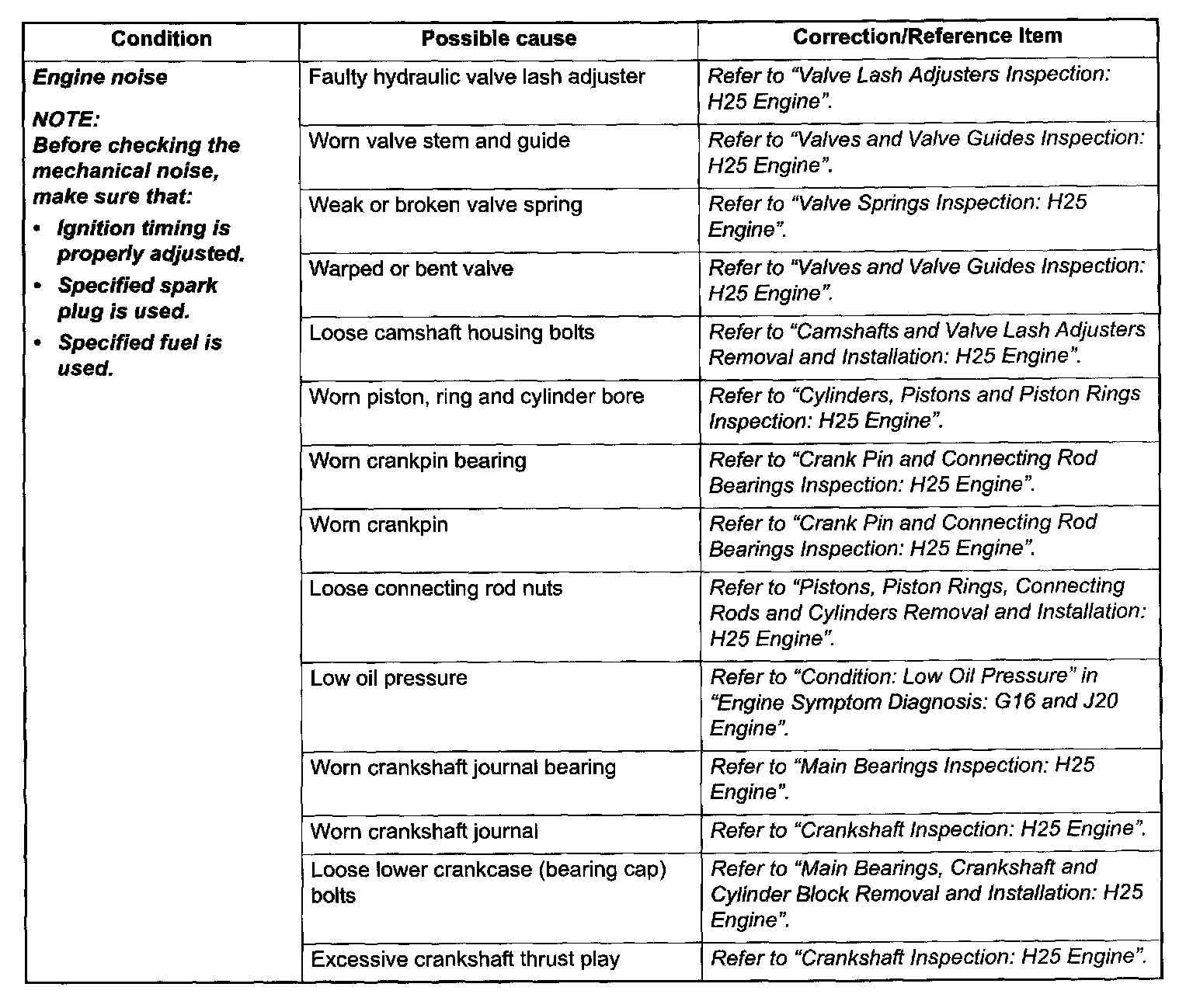

Engine Symptom Diagnosis Part 2:

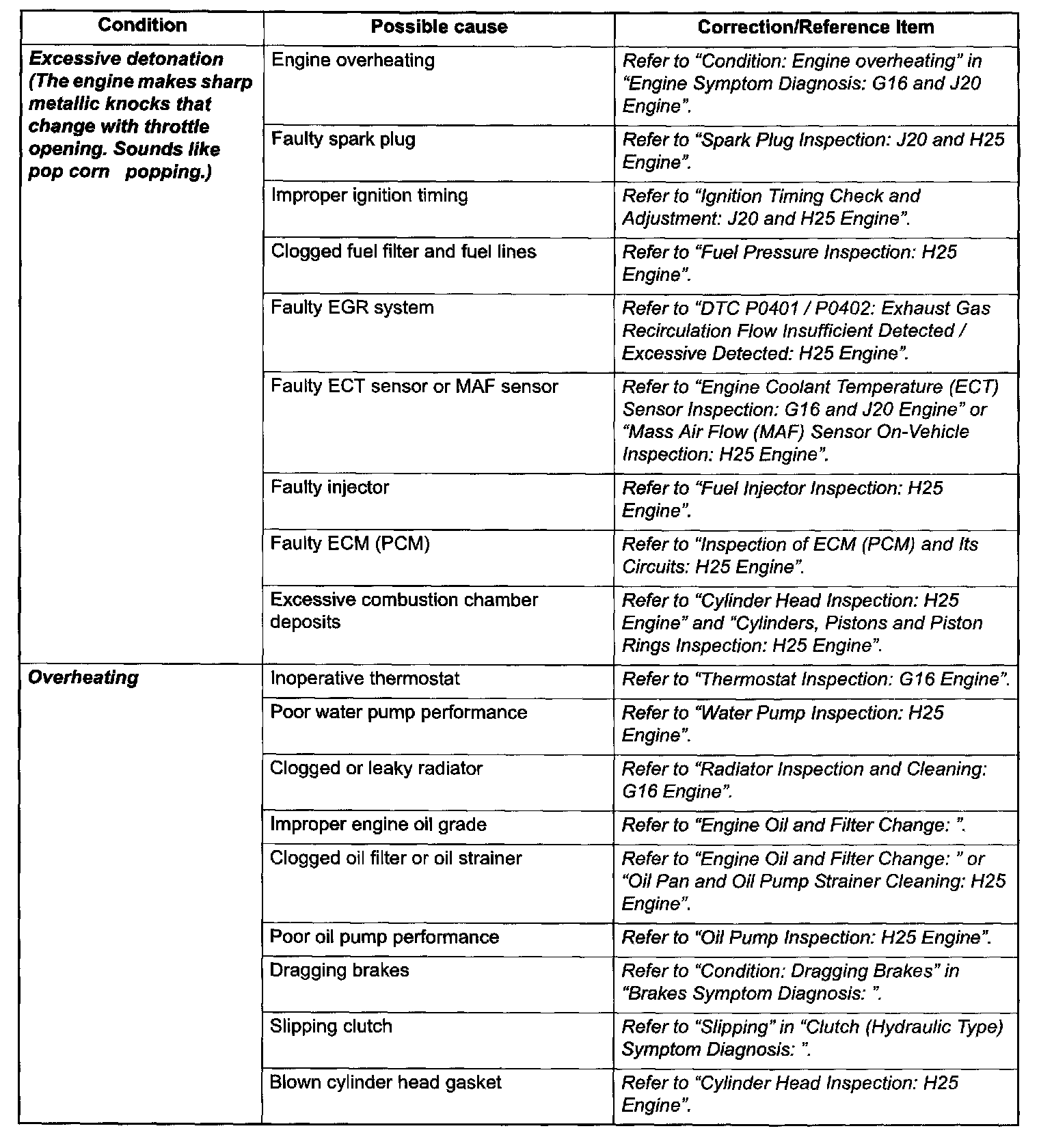

Engine Symptom Diagnosis Part 3:

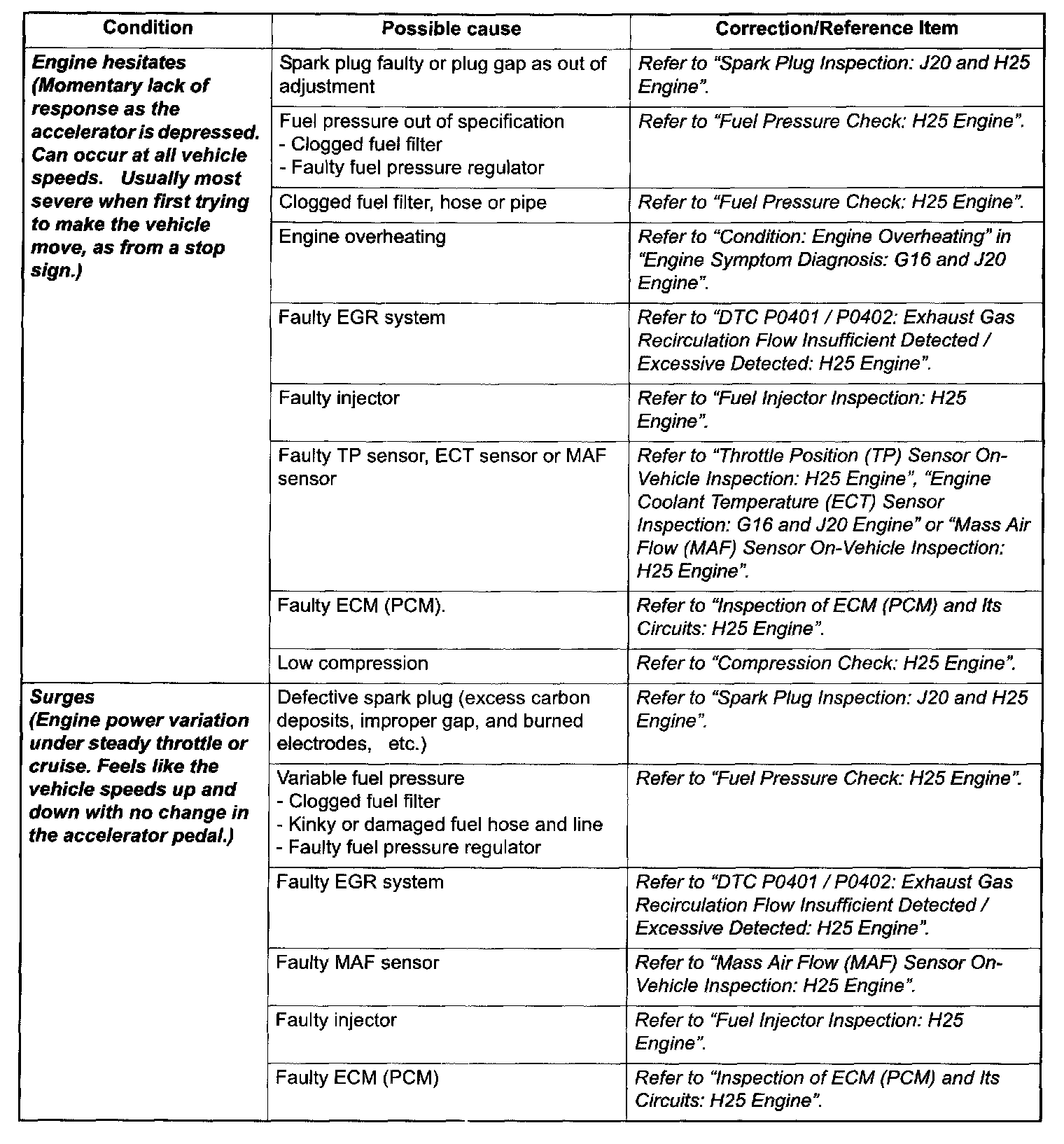

Engine Symptom Diagnosis Part 4:

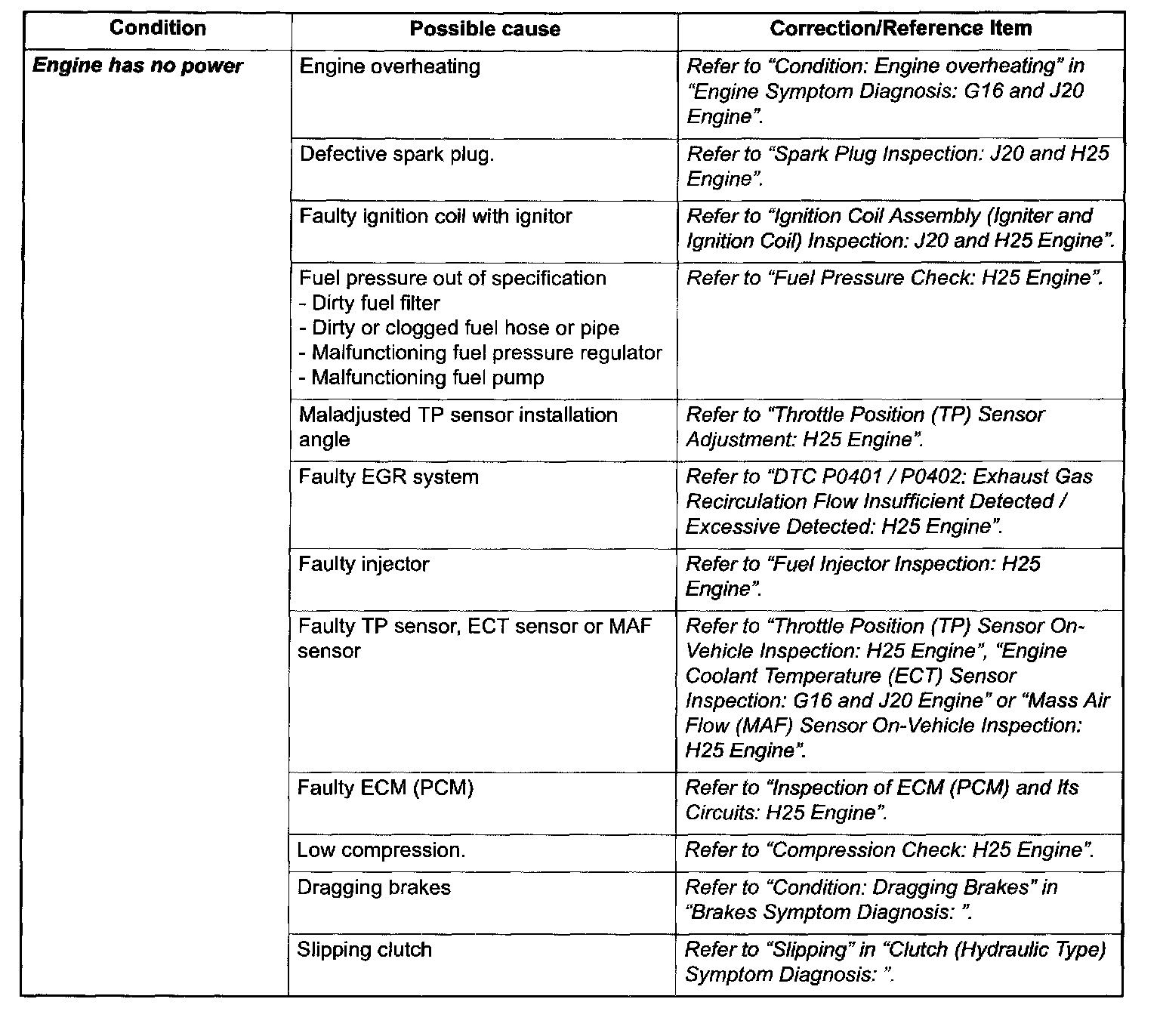

Engine Symptom Diagnosis Part 5:

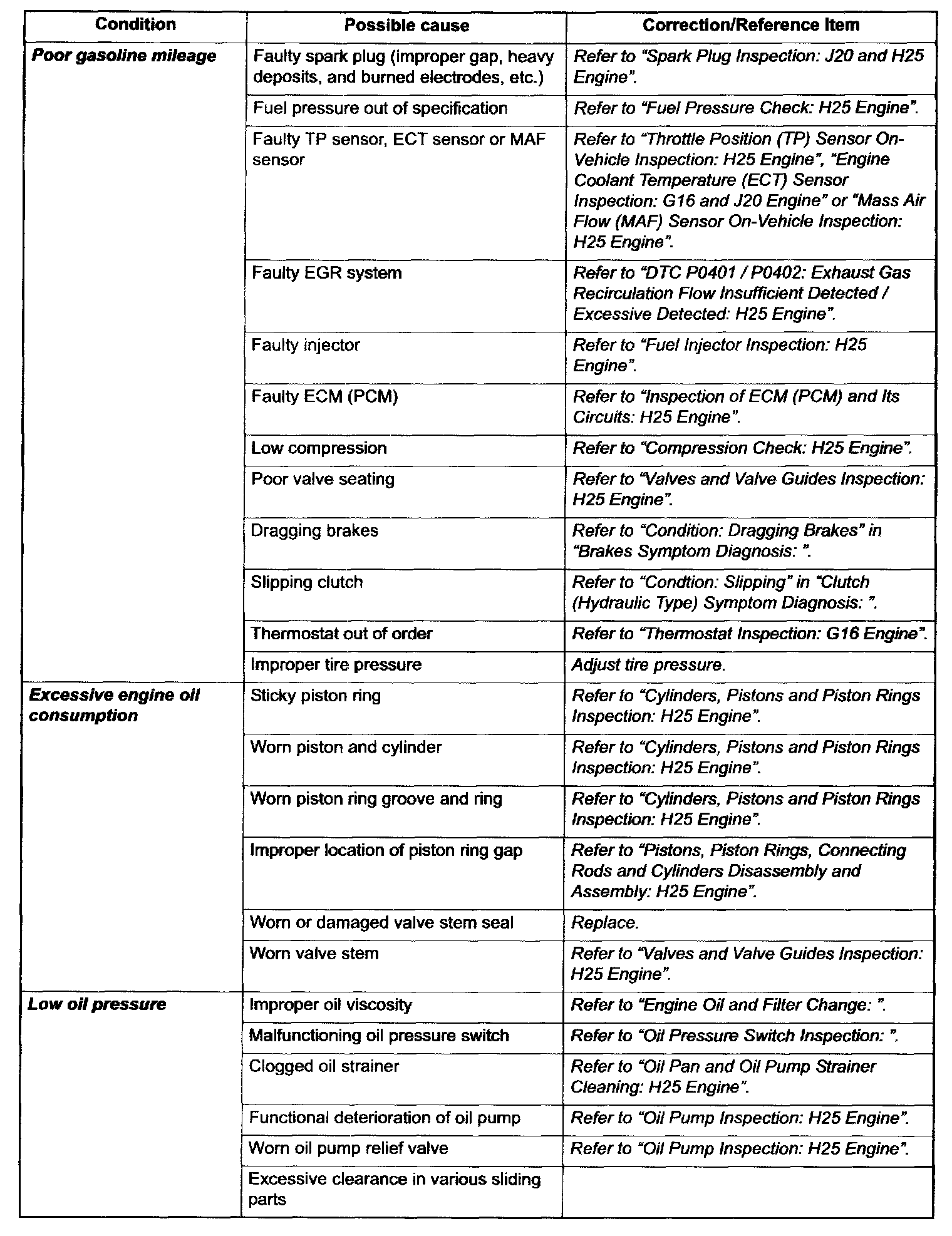

Engine Symptom Diagnosis Part 6:

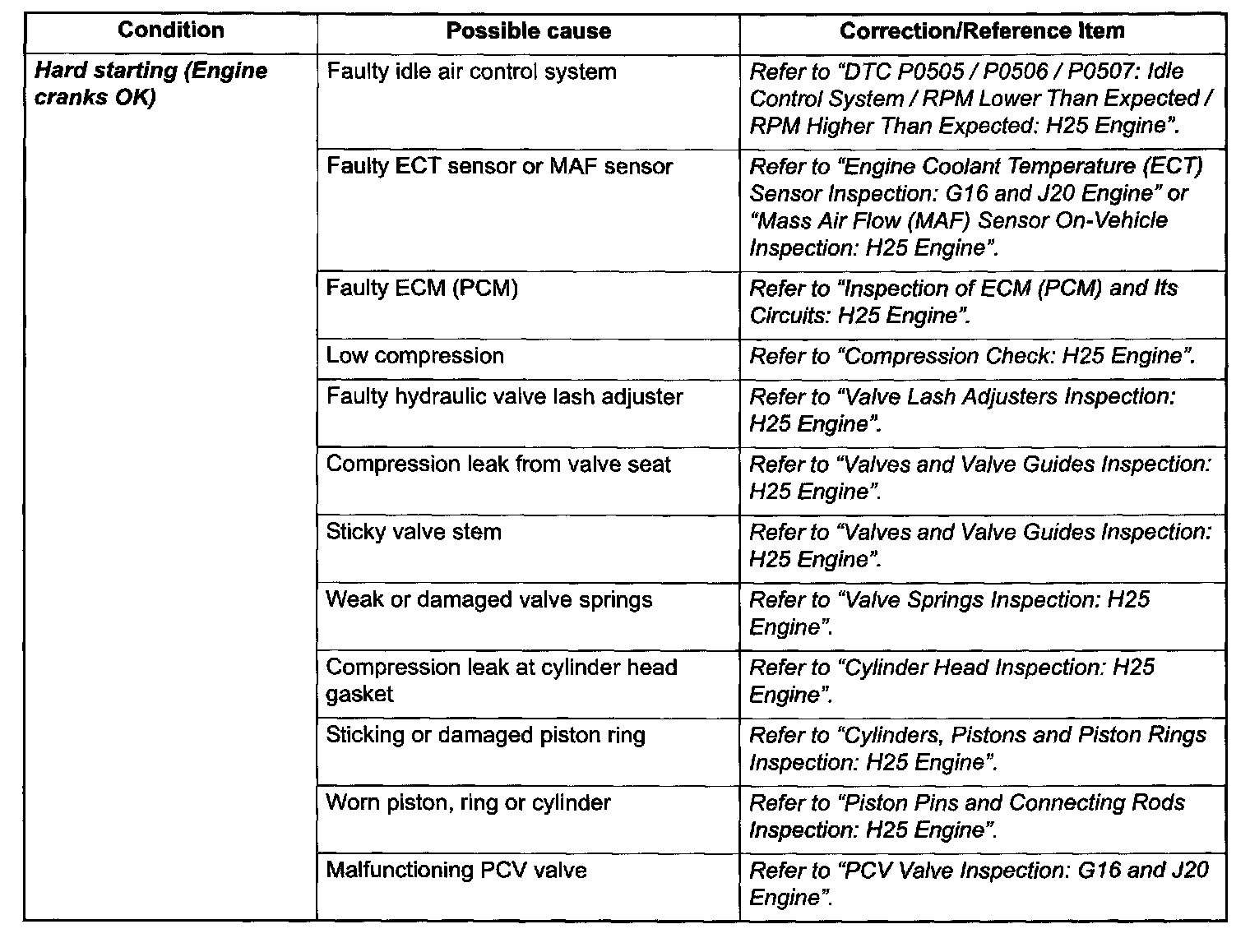

Engine Symptom Diagnosis Part 7:

Perform troubleshooting referring to the above table when ECM (PCM) has detected no DTC and no abnormality has been found in "Visual Inspection (for Engine)" and "Engine Basic Check".
