J Connectors

NOTE: The illustrations below show the harness side connectors, but not the component side connectors.

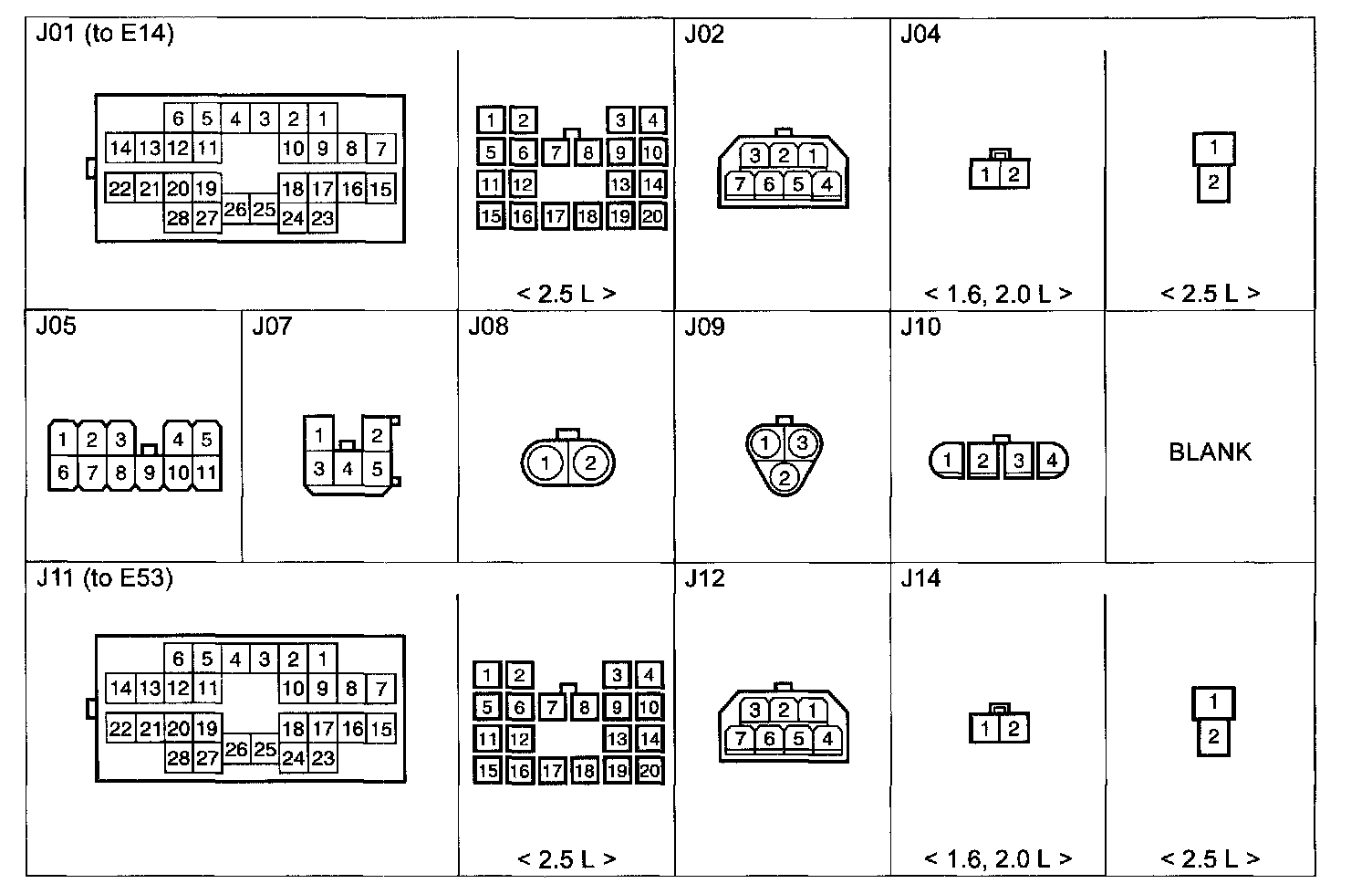

J Connector (J01 - J14) Part 1:

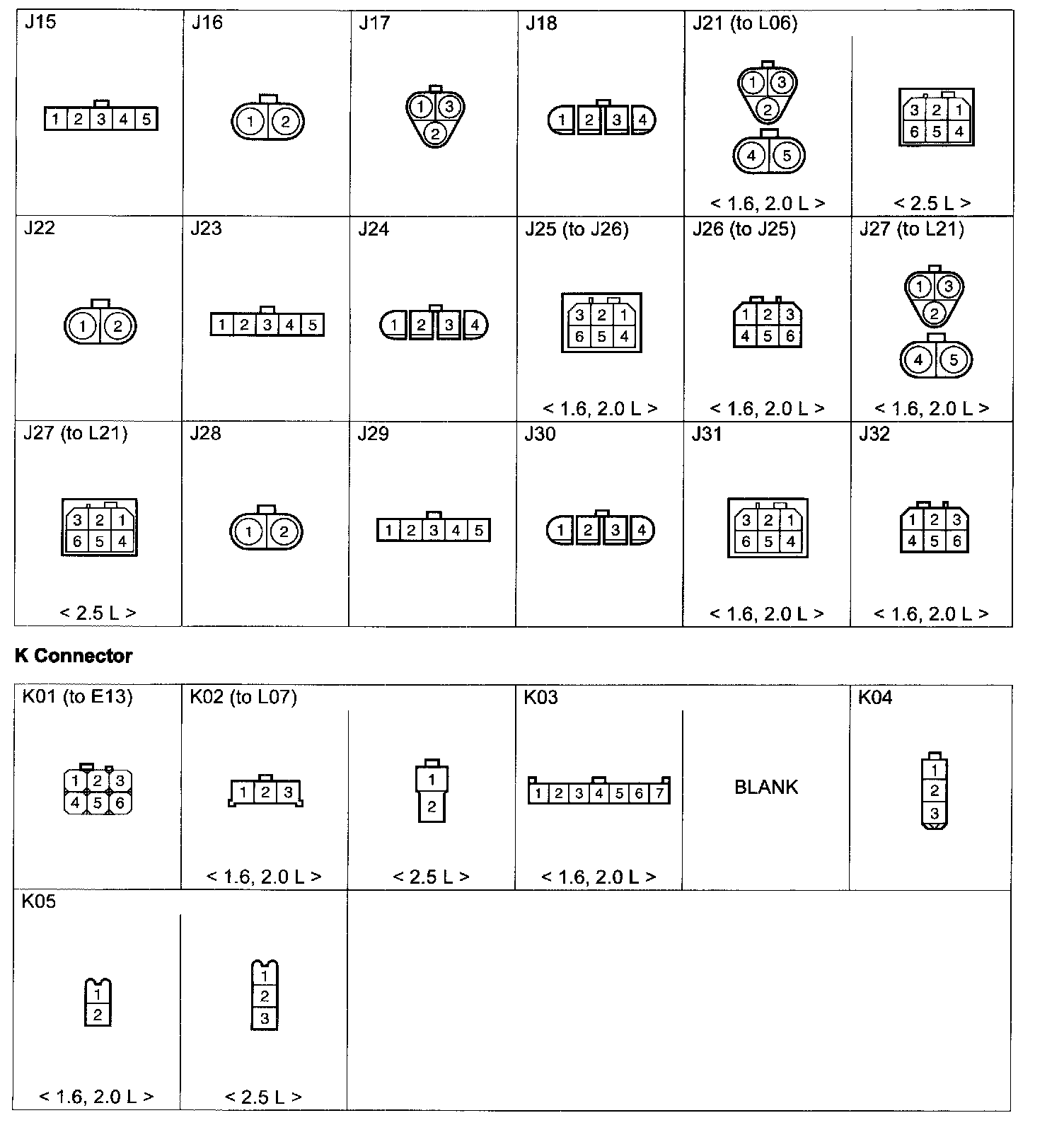

J Connector (J15 - J32) Part 2:
