G Connectors

NOTE: The illustrations below show the harness side connectors, but not the component side connectors.

G Connector (G01 - G09):

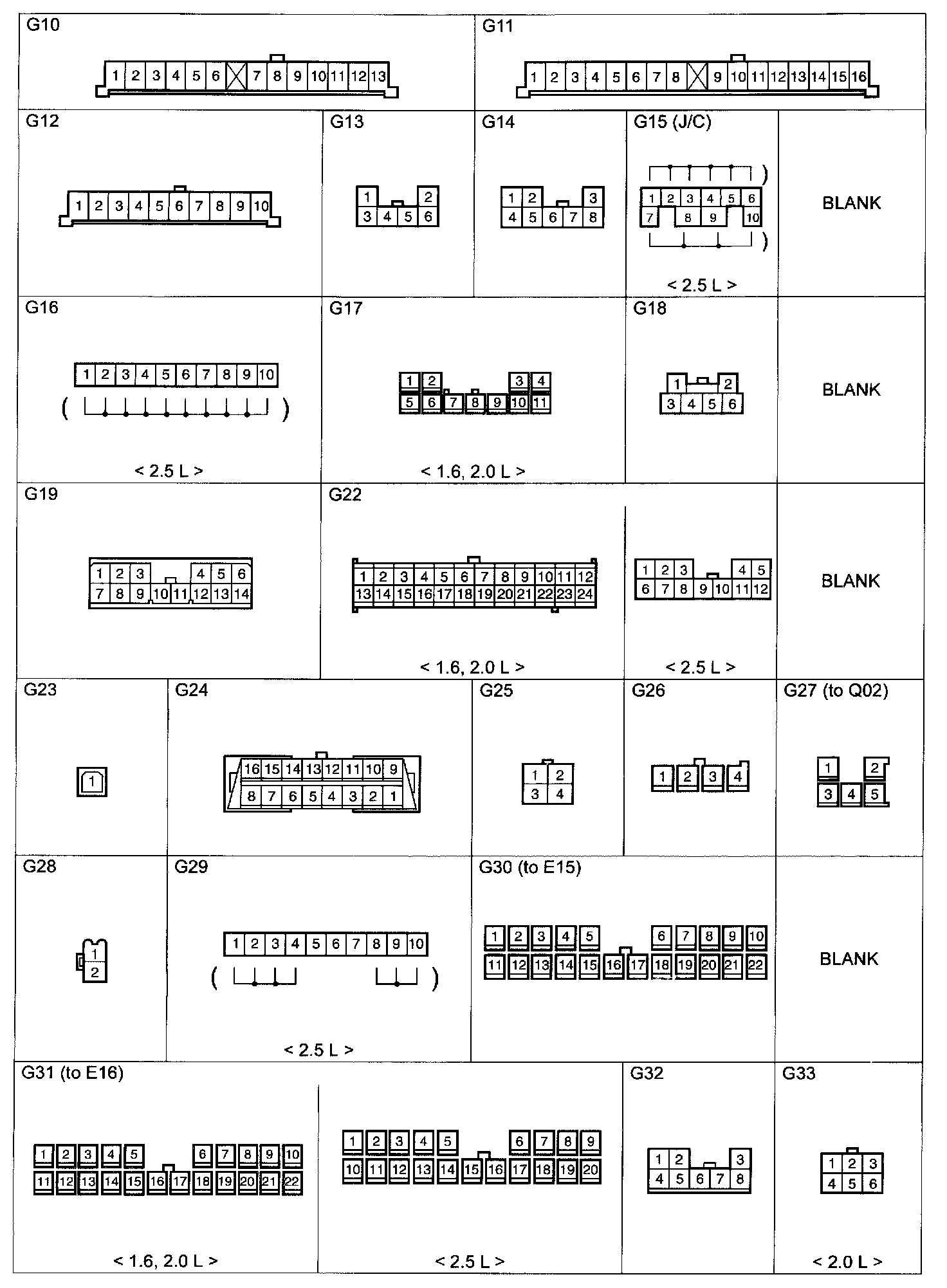

G Connector (G10 - G33):




G Connector (G34 - G46) Part 3:
