C Connectors

NOTE: The illustrations below show the harness side connectors, but not the component side connectors.

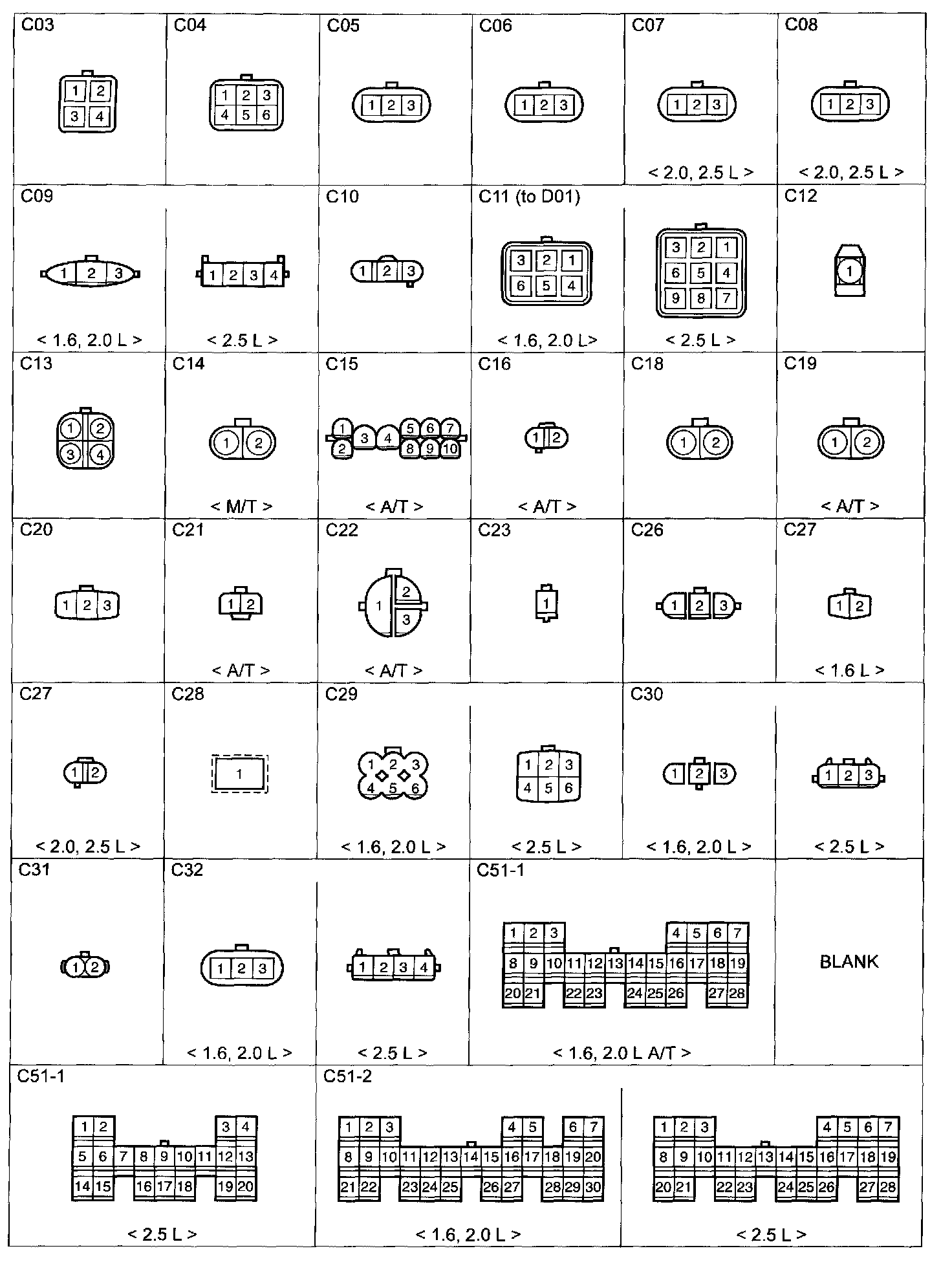

C Connector (C03 - C51-2):

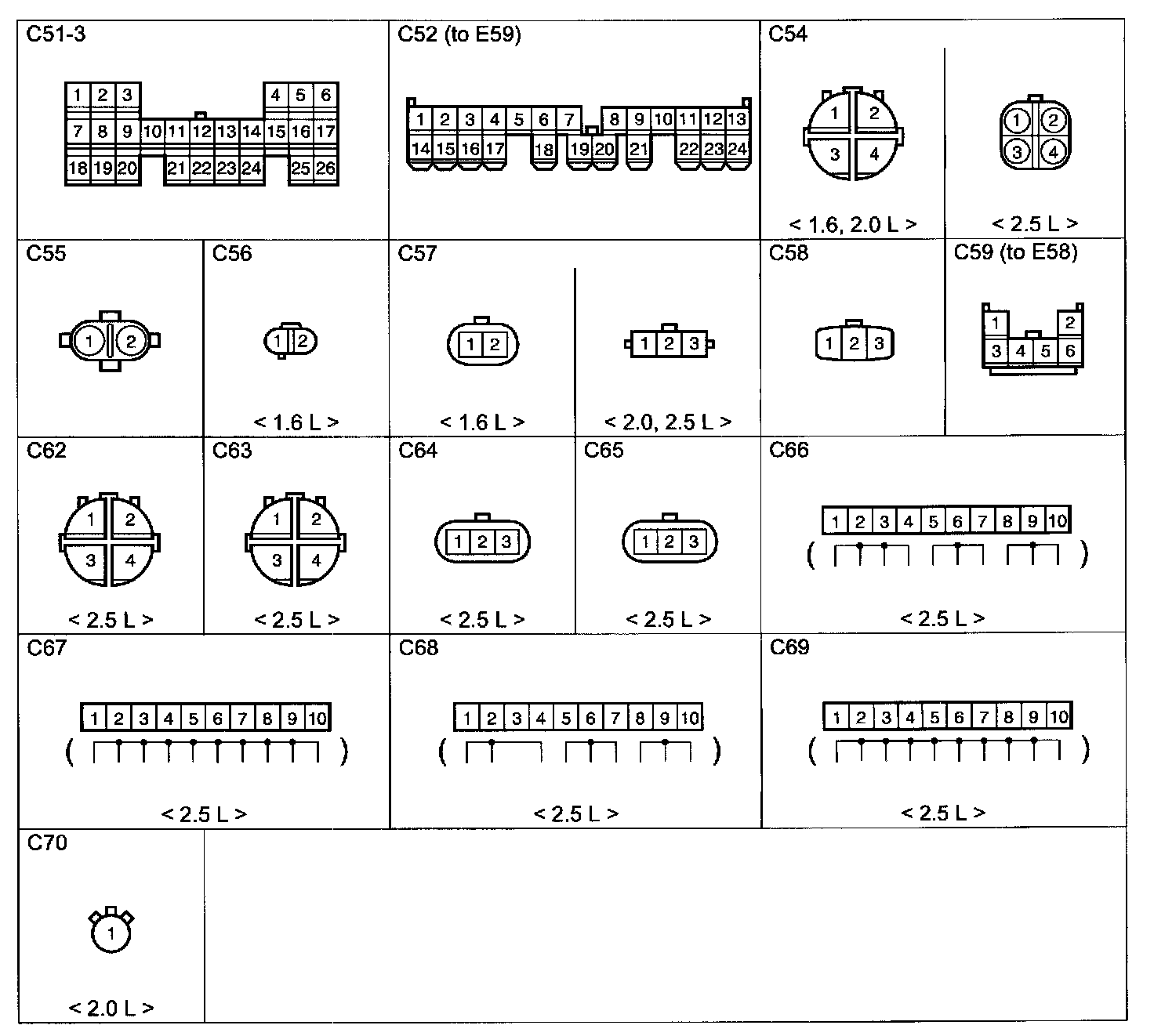

C Connector (C51-3 - C70):
