Trim Panel: Service and Repair

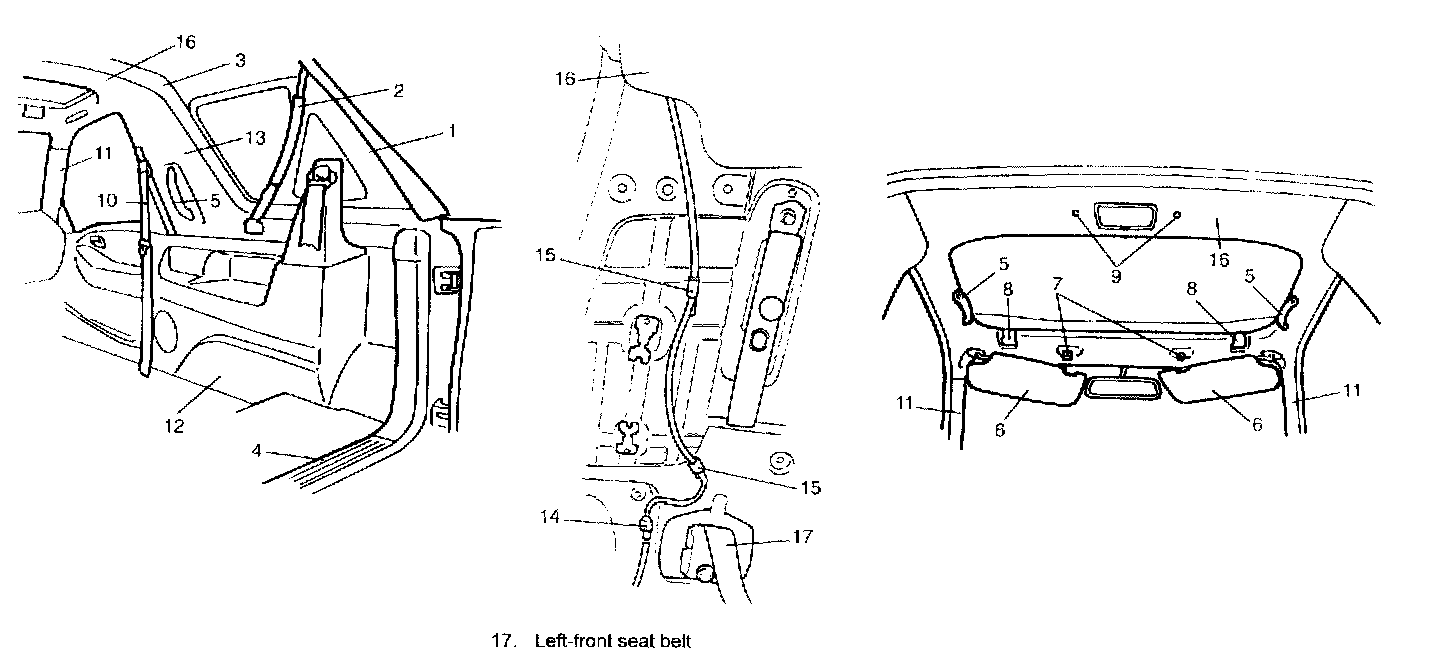

Removal
1. Remove canvas top (1).
2. Remove rear topbow (2).
3. Remove side body garnishes (3).
4. Remove luggage mat end garnish (4).
5. Remove assistant grips (5).
6. Remove sunshade assemblies (6).
7. Remove sunshade hooks (7).
8. Remove front topbow locks (8).
9. Remove canvas top snaps (9).
10. Remove front seat belts (10).
11. Remove front pillar trims (11).
12. Remove rear side inner lower trims (12).
13. Remove rear side inner upper trims (13).
14. Disconnect room light connector (14) and remove room light harness clamp (15).
15. Remove roof trim (16).

CAUTION: Be very careful not to separate roof trim consists of 4 components when removing. If disassemble it, it could not be assembled to original unit.

Installation
1. Set room light (2) and clip (4) to roof trim (1).




2. Set room light harness (6) to roof trim with marking tape (7).

Seat Belt Upper Anchor Bolt:

3. Reverse removal sequence to install roof trim.

Tightening Torque
Seat belt upper anchor bolt (a): 35 N.m (3.5 kg-m, 25.5 lb.ft)
