Wheel Alignment: Specifications: Specifications: XL-7

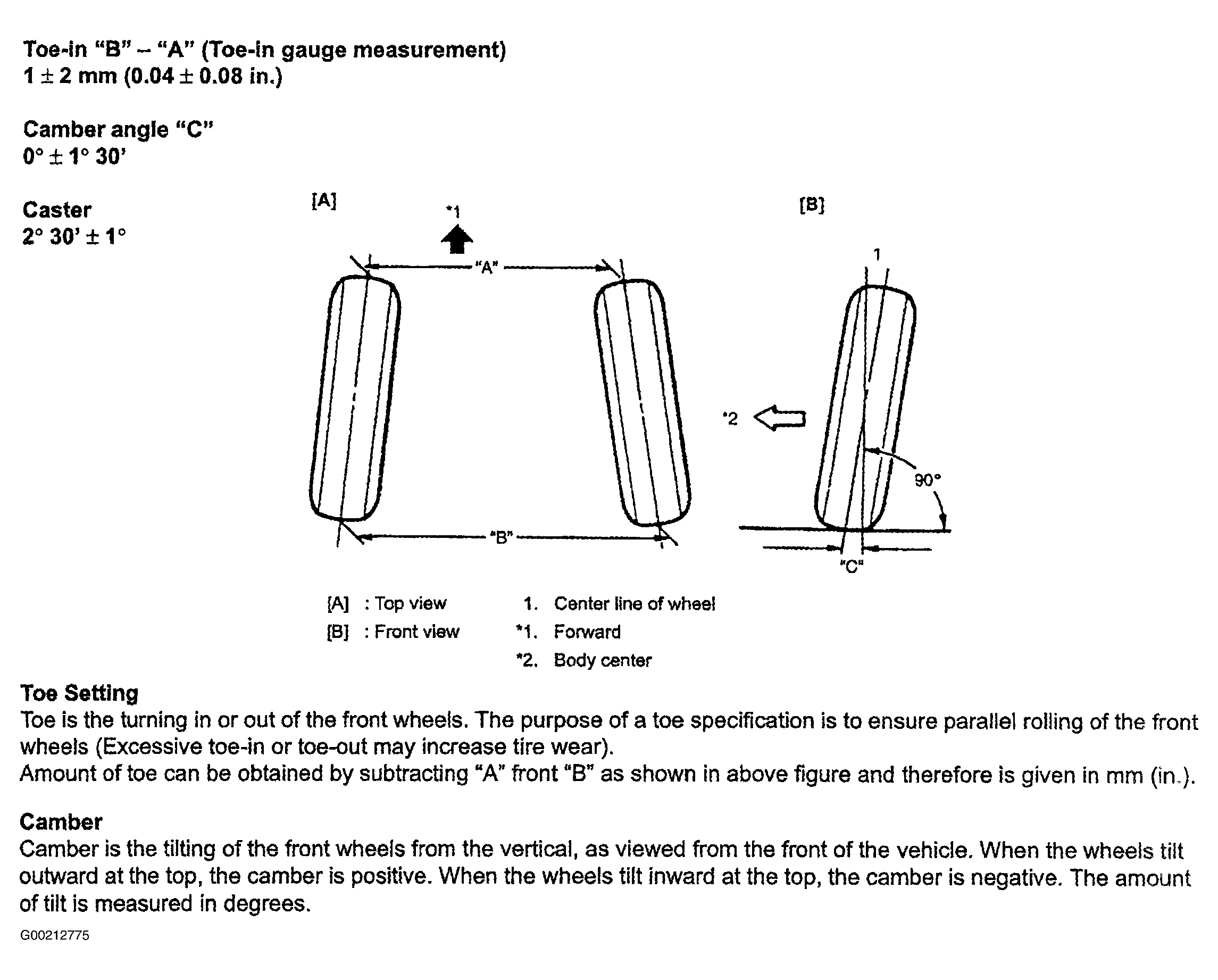

Fig 1: Wheel Alignment Specifications (XL-7)
G00212775Courtesy of SUZUKI OF AMERICA CORP.
