P Codes - Powertrain Control System

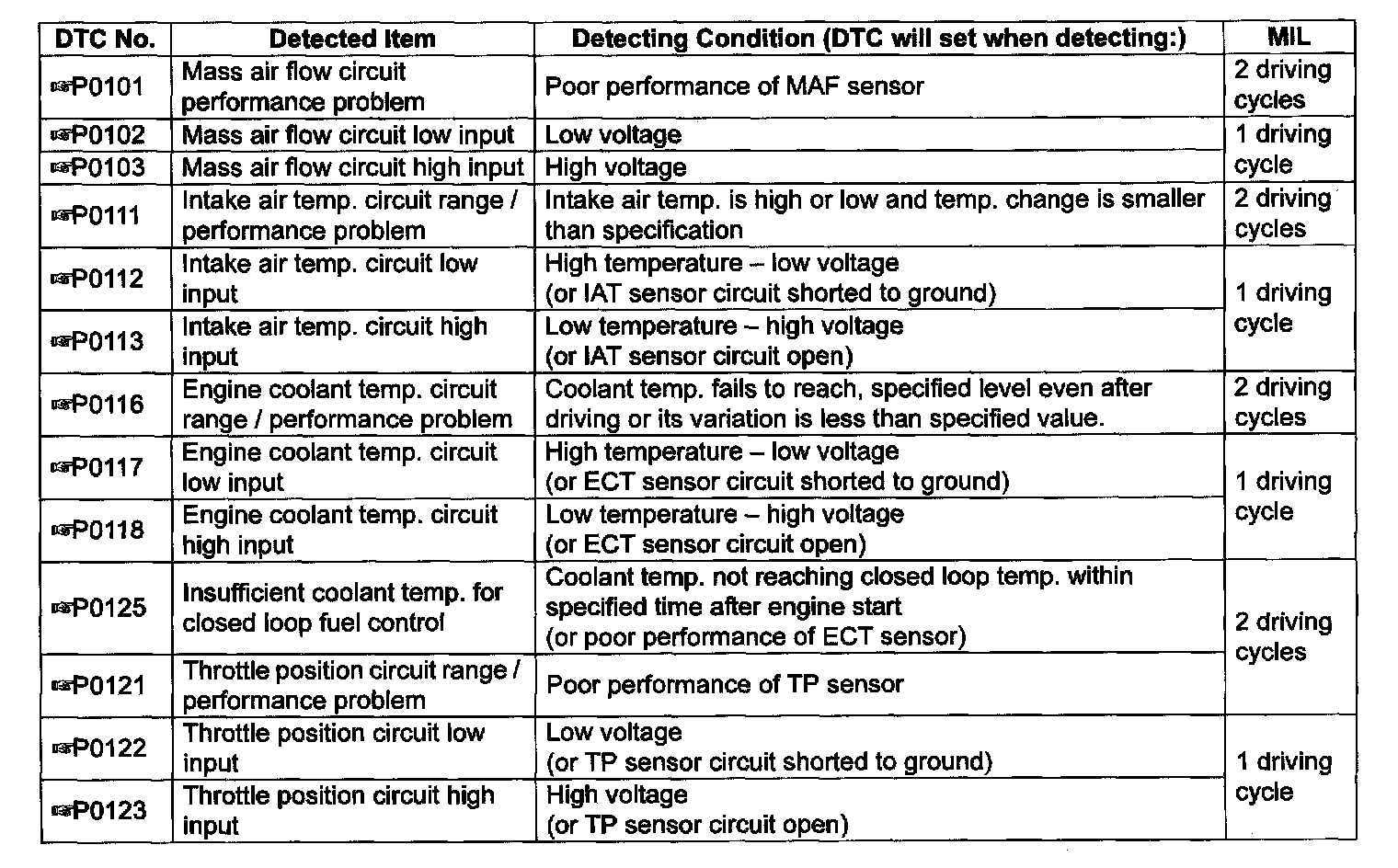

DTC No, P0101 - P0123:

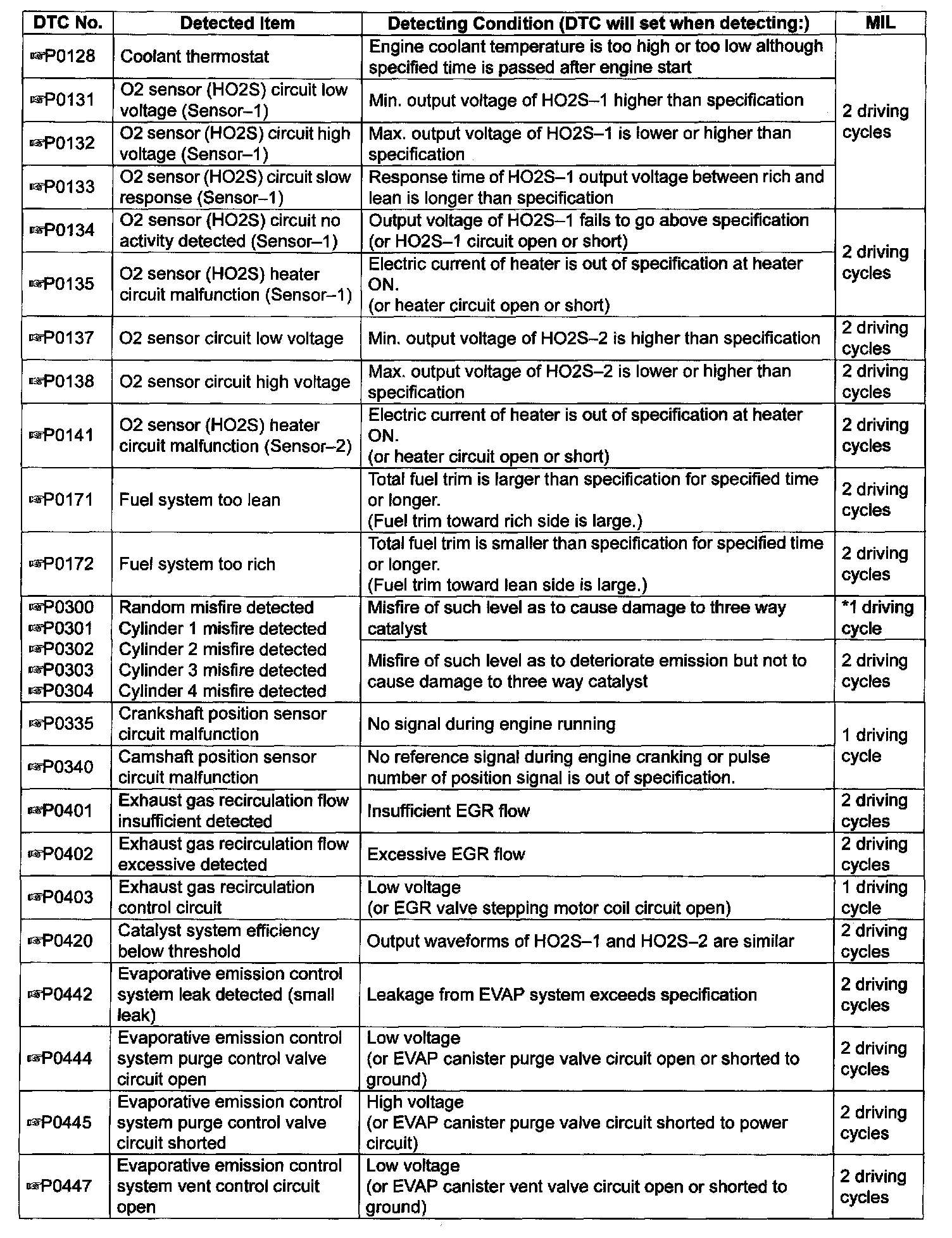

DTC No. P0128 - P0447:

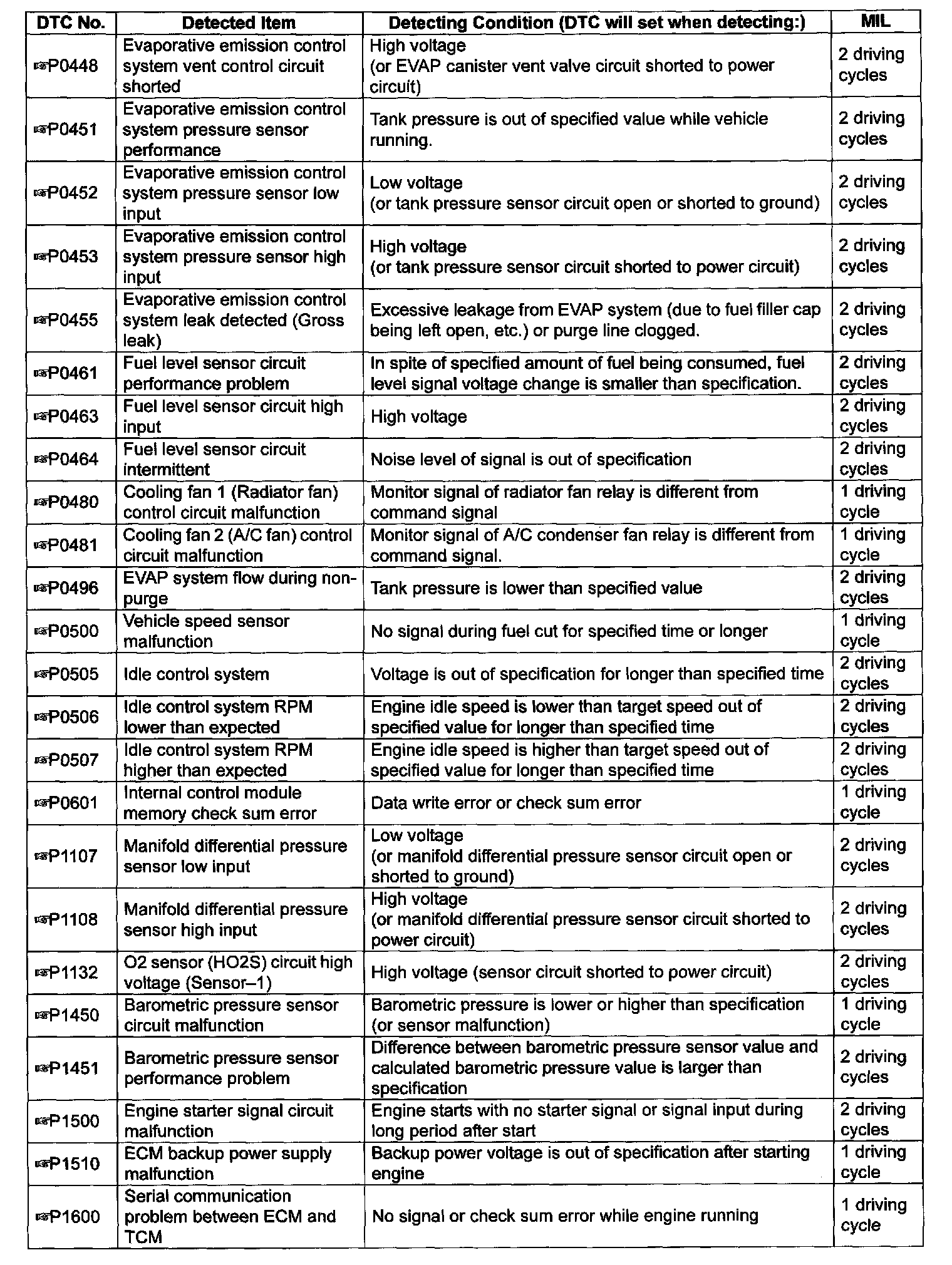

DTC No. P0448 - P1600:

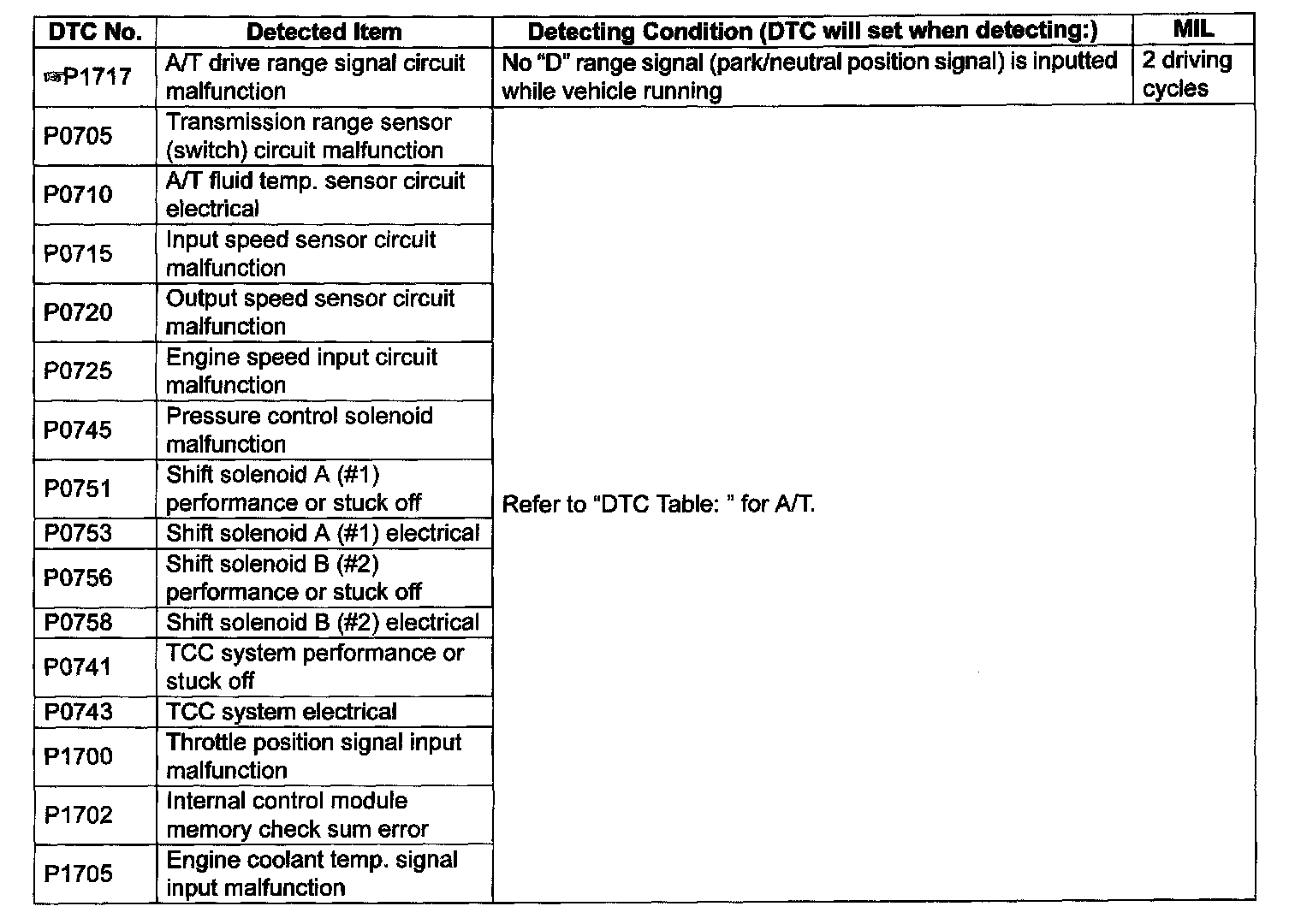

DTC No. P1717 - P1705:

DTC Table

NOTE:
- 1 driving cycle:
MIL lights up when DTC is detected while I driving cycle.
- 2 driving cycles:
MIL lights up when the same DTC is detected also in the next driving cycle after DTC is detected and stored temporarily in the first driving cycle.
- *1 driving cycle:
MIL blinks or lights up. Refer to "DTC P0300 / P0301 /P0302 / P0303 / P0304: Random Misfire / Cylinder 1 Misfire / Cylinder 2 Misfire / Cylinder 3 Misfire / Cylinder 4 Misfire Detected" for details.
