Rear Strut Assembly Removal And Installation: Installation

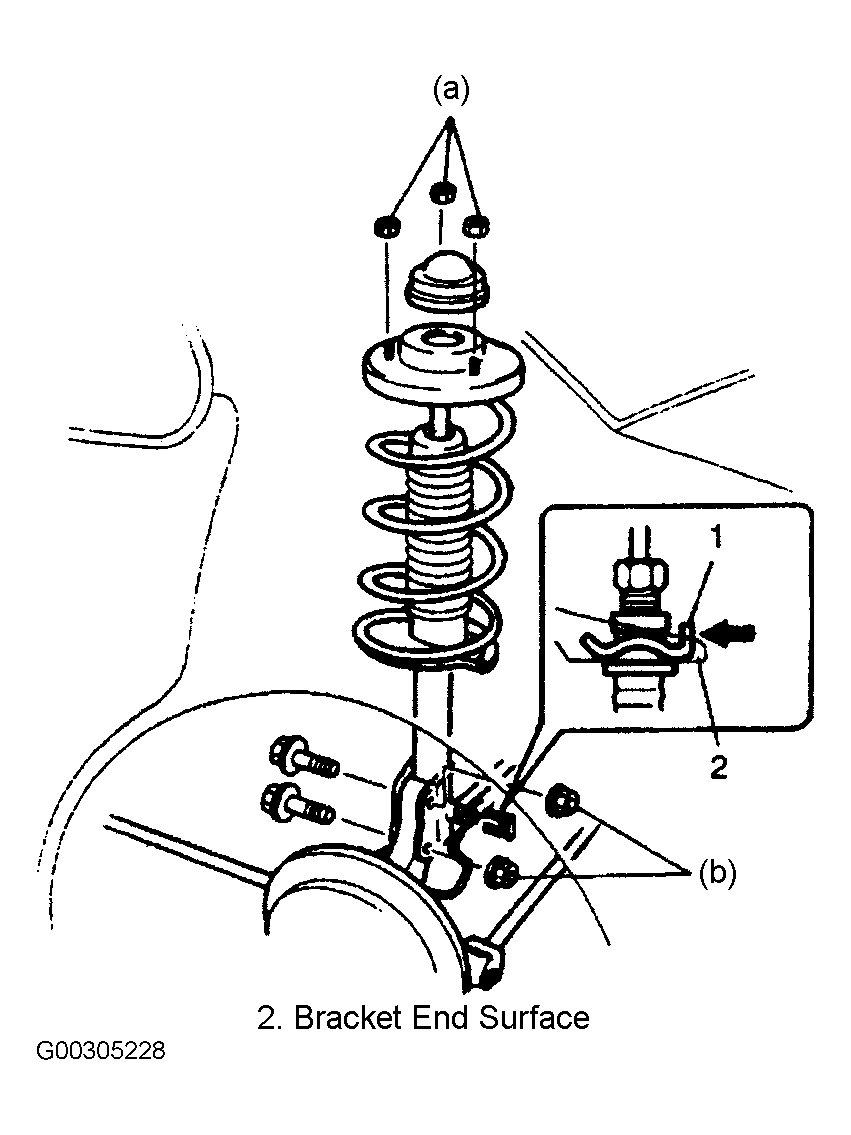

- Install strut by reversing removal procedure. Insert bracket bolts in such a direction as shown in the figure.
- Torque all fasteners to specification.NOTE: Don't be twisting brake hose when installing it.
Install E-ring (1) as far as it fits to bracket as shown.
Tightening torque
Strut support nut (a): 28 N-m (2.8 kg-m, 20.5 lb-ft)
Strut bracket nut (b): 90 N-m (9.0 kg-m, 65.0 Ib-ft)
- Fill reservoir with brake fluid and bleed brake system. For bleeding operation, see BLEEDING BRAKE SYSTEM (2001) or BLEEDING BRAKE SYSTEM (2002).
