Removal & Installation: Engine: Installation

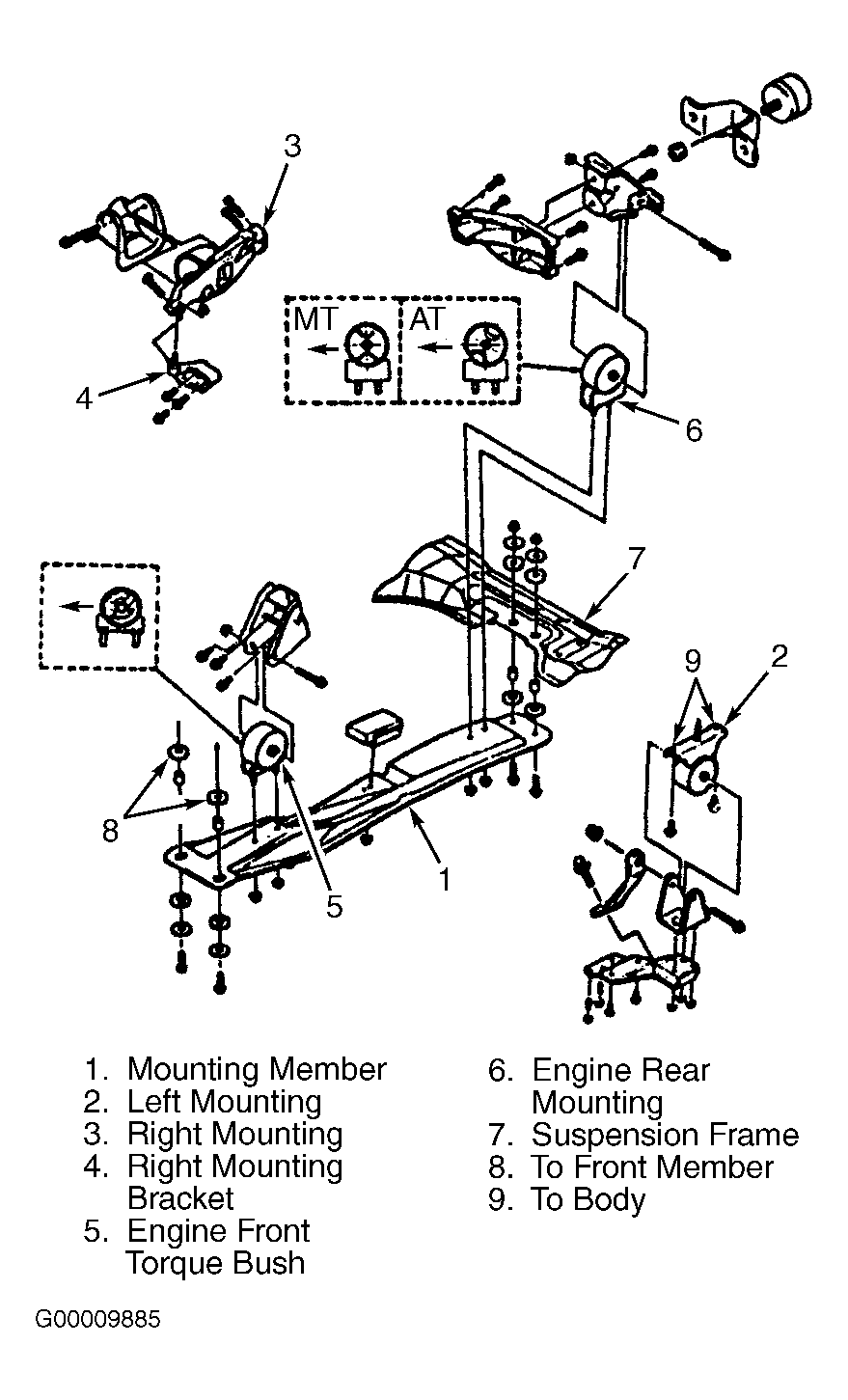

Lift engine and transmission into engine compartment. Install left and right engine mounts. Install mounting member to front member and suspension frame. See Fig 1. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Remove lifting device. When installing axle shaft, push each axle shaft into differential so that snap ring engages with differential gear and center bearing support. To complete installation, reverse removal procedure. Refill cooling system, engine oil, and transmission with proper fluids.
