Driver's Under-Dash Fuse/Relay Box
NOTE:
Driver's under-dash fuse/relay box is located under driver's side of instrument panel. See
Fig 1
.
Fig 1: Locating Driver's Under-Dash Fuse/Relay Box
Courtesy of SUZUKI OF AMERICA CORP.

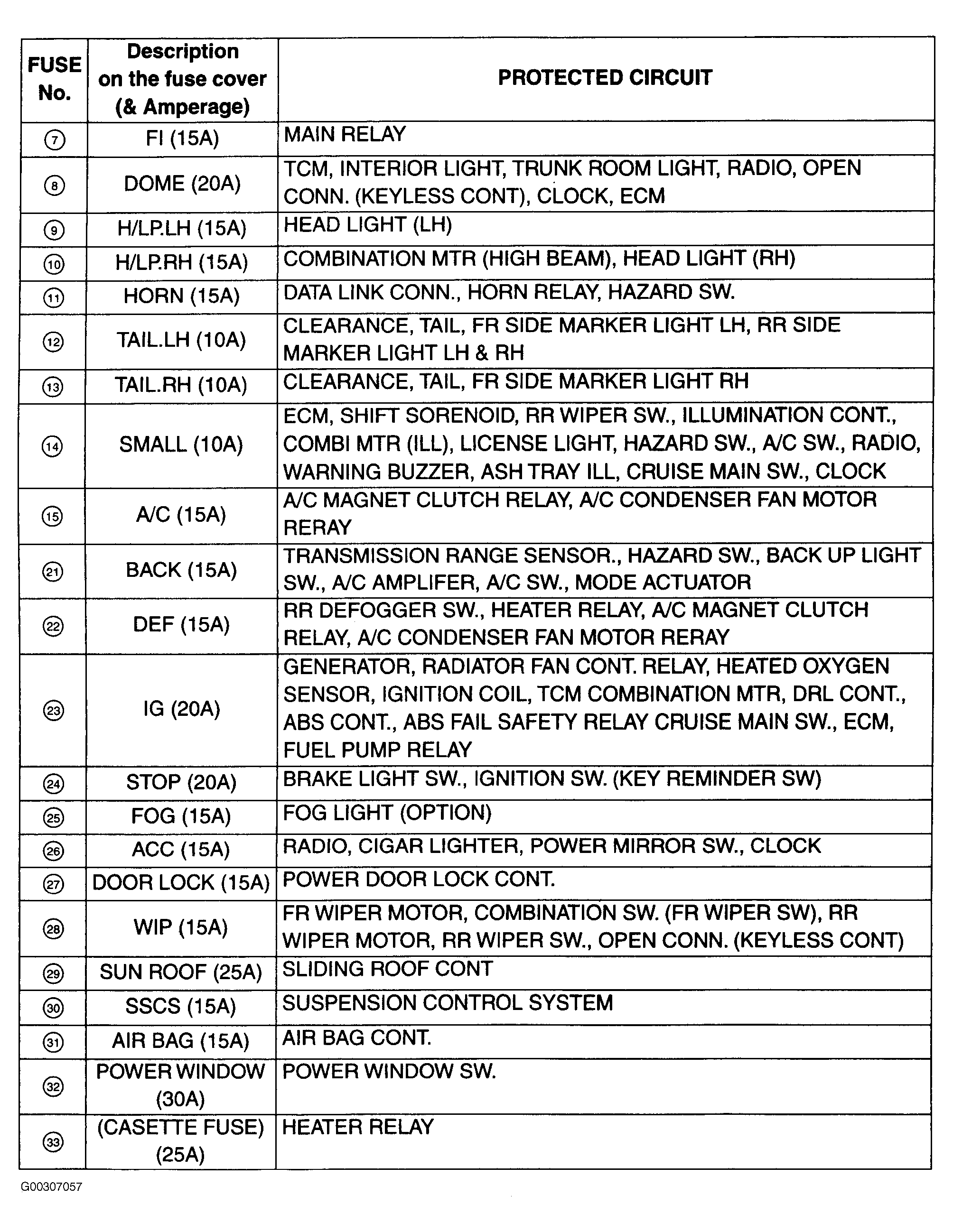

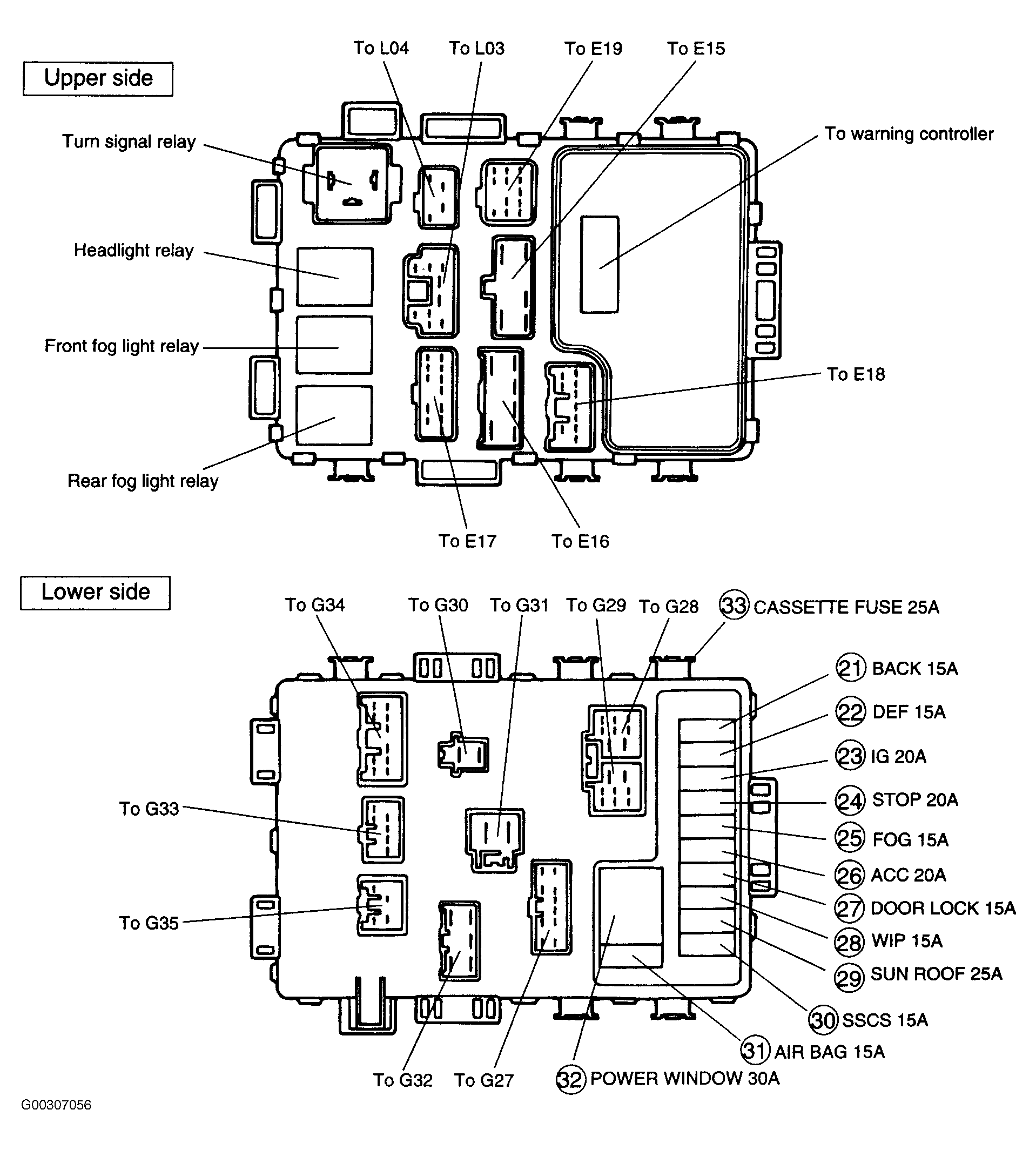

Fig 2: Identifying Driver's Under-Dash Fuse/Relay Box
Courtesy of SUZUKI OF AMERICA CORP.
