Front Door Lock: Removal

Removal window regulator handle (if equipped), door mirror inner garnish, door trim, power window switch (if equipped) and door sealing cover.
Remove front door rear sash. See Fig 1 .

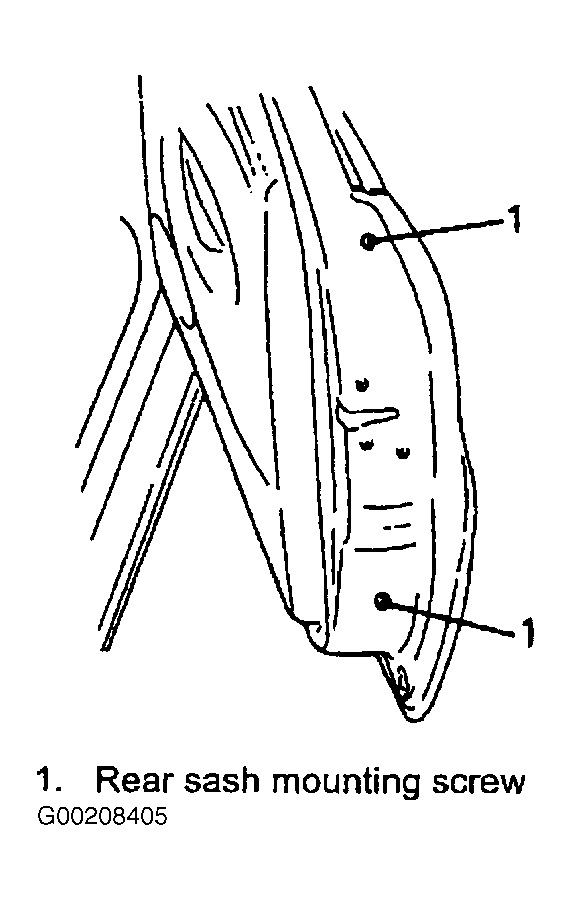

Fig 1: Removing Front Door Rear Sash
Courtesy of SUZUKI OF AMERICA CORP.
After disconnecting each join of control link, remove door inside handle, outside handle and door latch assembly. See Fig 2 .

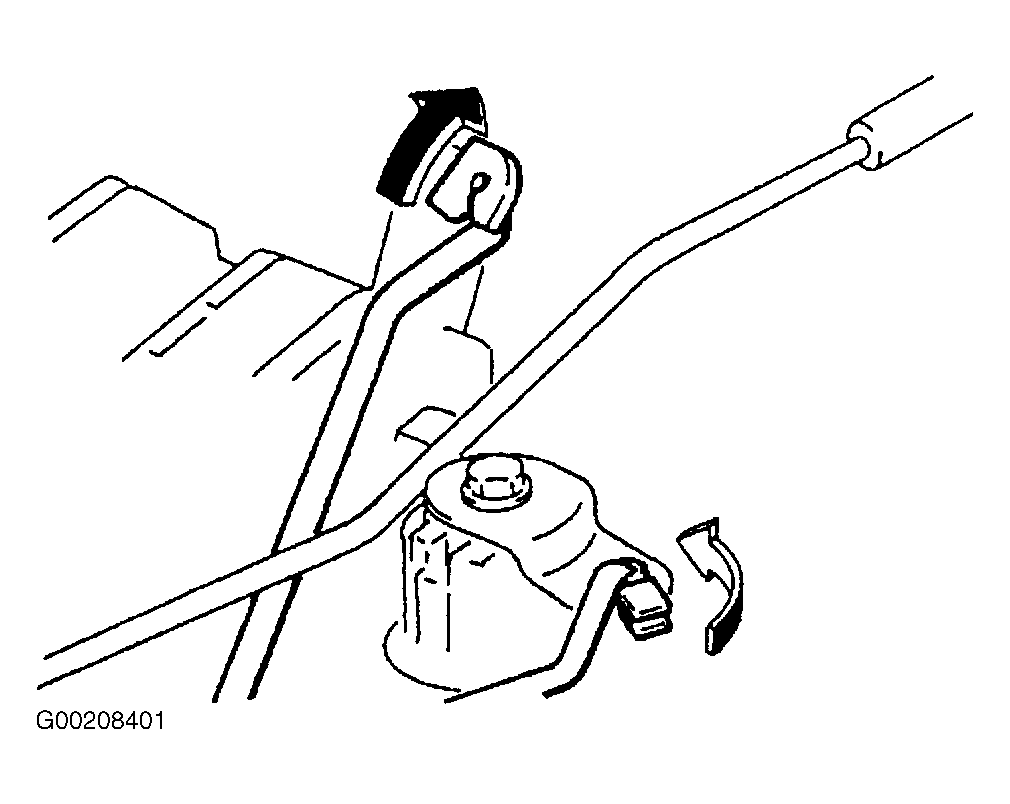

Fig 2: Removing Door Inside & Outside Handle
Courtesy of SUZUKI OF AMERICA CORP.
