Front Door Lock: Installation

Reverse removal sequence for installation while using care for the following items:

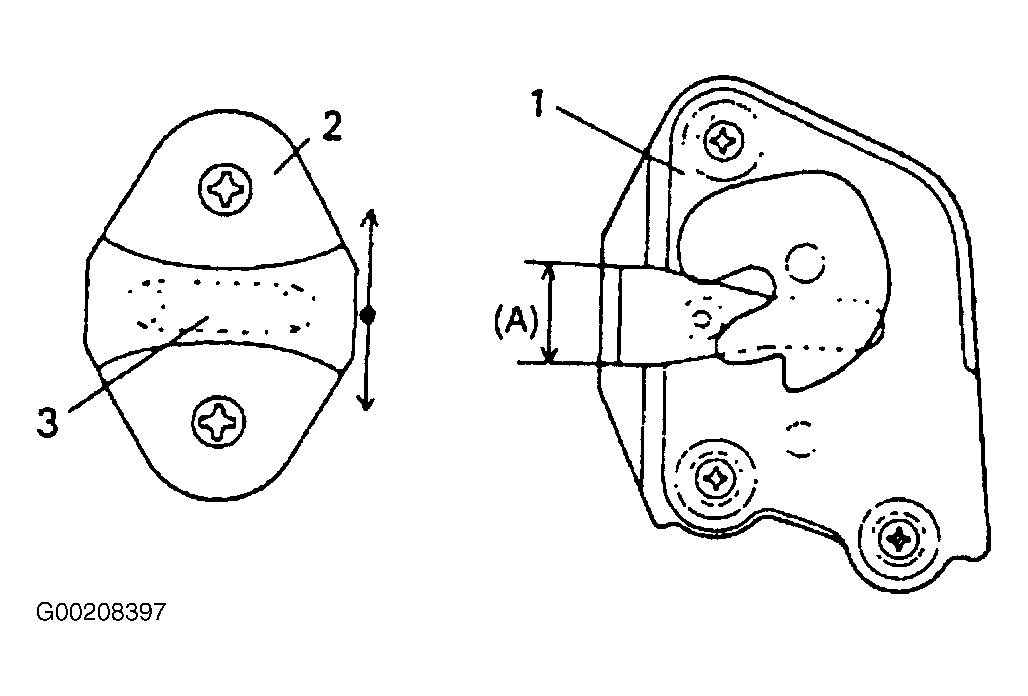

• Install door latch striker. Move door latch striker (2) up and down so that its shaft (3) approximately aligns with the center of groove (A) of door latch. See Fig 1 .
  NOTE: Striker should be placed level and moved vertically, Do not adjust door latch.
  Fig 1: Installing Door Latch Striker

  Courtesy of SUZUKI OF AMERICA CORP.
• Move door latch striker (3) sideways to adjust to 0 in (0 mm) the door (2) surface-to-body (1) surface difference with door closes. See Fig 2 .
  Fig 2: Moving Door Latch Striker

  Courtesy of SUZUKI OF AMERICA CORP.
• In order to correctly obtain door striker (1) position in fore-and-aft direction, increase or decrease number of spacers (2) inserted between body (5) and striker to adjust it. Dimension "b" should be adjusted to specified value. See Fig 3 .
  NOTE: Apply oil or grease to striker joints periodically.
  Fig 3: Increasing Or Decreasing Number Of Spacers

  Courtesy of SUZUKI OF AMERICA CORP.
