Rear Strut Assembly Components: Notes

WARNING: Strut with "GAS FILLED" stamp is filled with gas and oil. When handling it, make sure to observe the following precautions.
  • Don't disassemble it.
  • Don't put it into the fire.
  • Don't store it where it gets hot.
  • Before disposing it, be sure to drill a hole in it and let gas out. Lay it down sideways for this work.
  • The gas itself is harmless but it may issue out of the hole together with chips generated by the drill. Therefore, be sure to wear goggle.

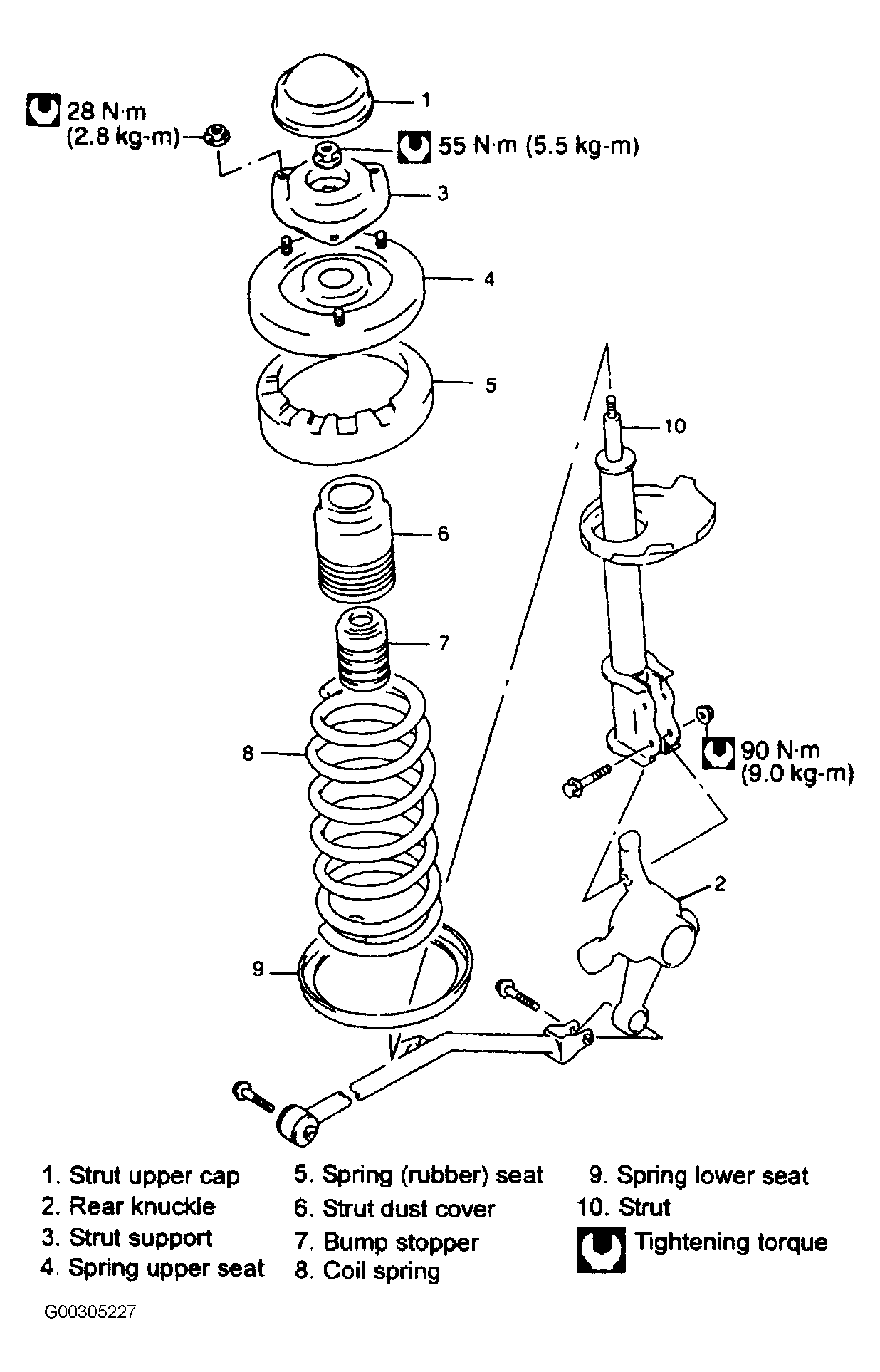

Fig 1: Identifying Rear Strut Assembly Components
G00305227Courtesy of SUZUKI OF AMERICA CORP.
