Engine Lubrication System: Notes

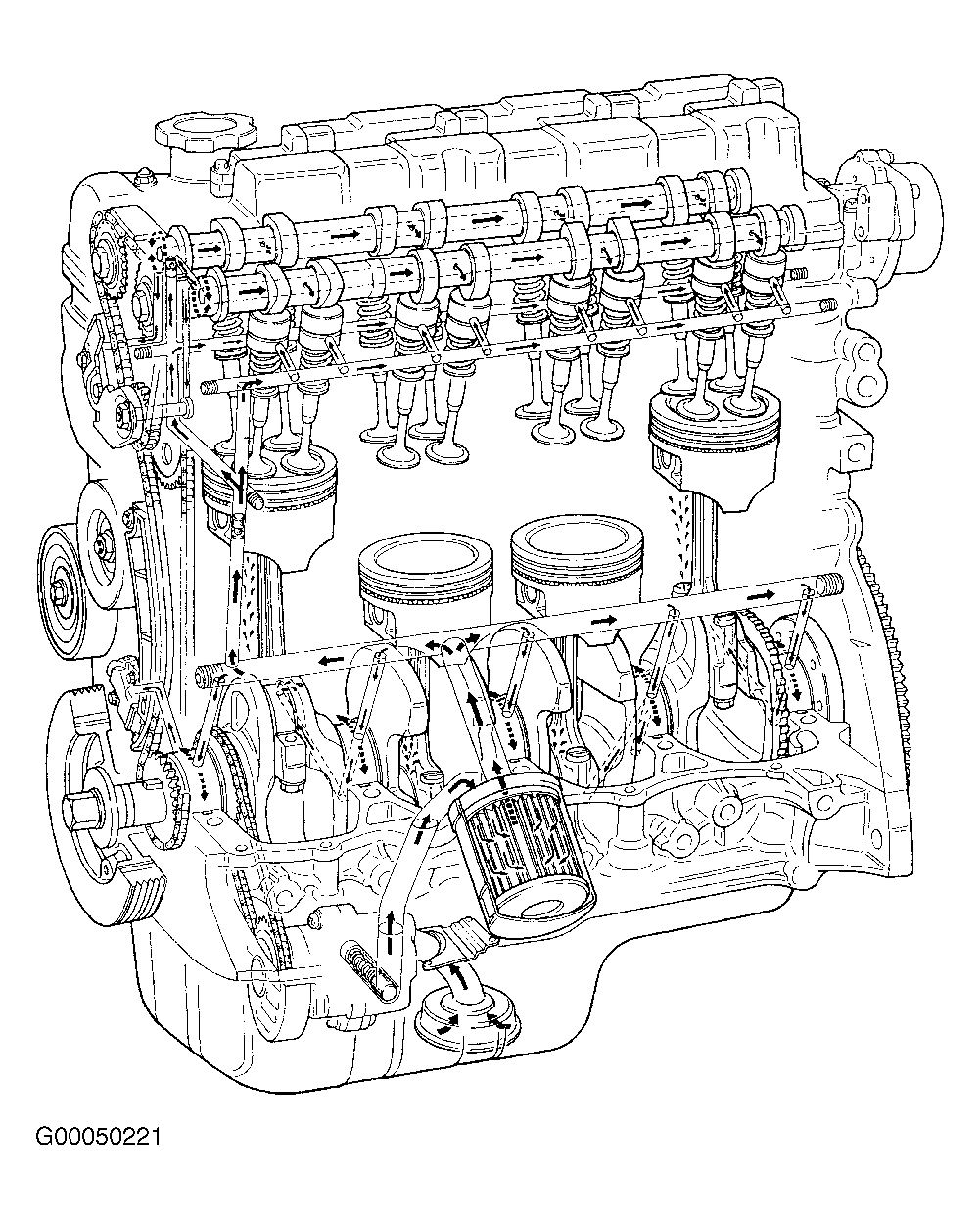

A force-feed type lubrication system is used. The oil pump is a trochoid-type pump mounted on forward portion of crankshaft. Oil is drawn up through oil screen, passed through oil pump, and then oil filter. See Fig 1. The filtered oil flows through 2 passages in cylinder block. One passage supplies oil to crankshaft and pistons, and the other passage supplies oil to cylinder head, valves and camshafts.
