Automatic Transmission Basic Check

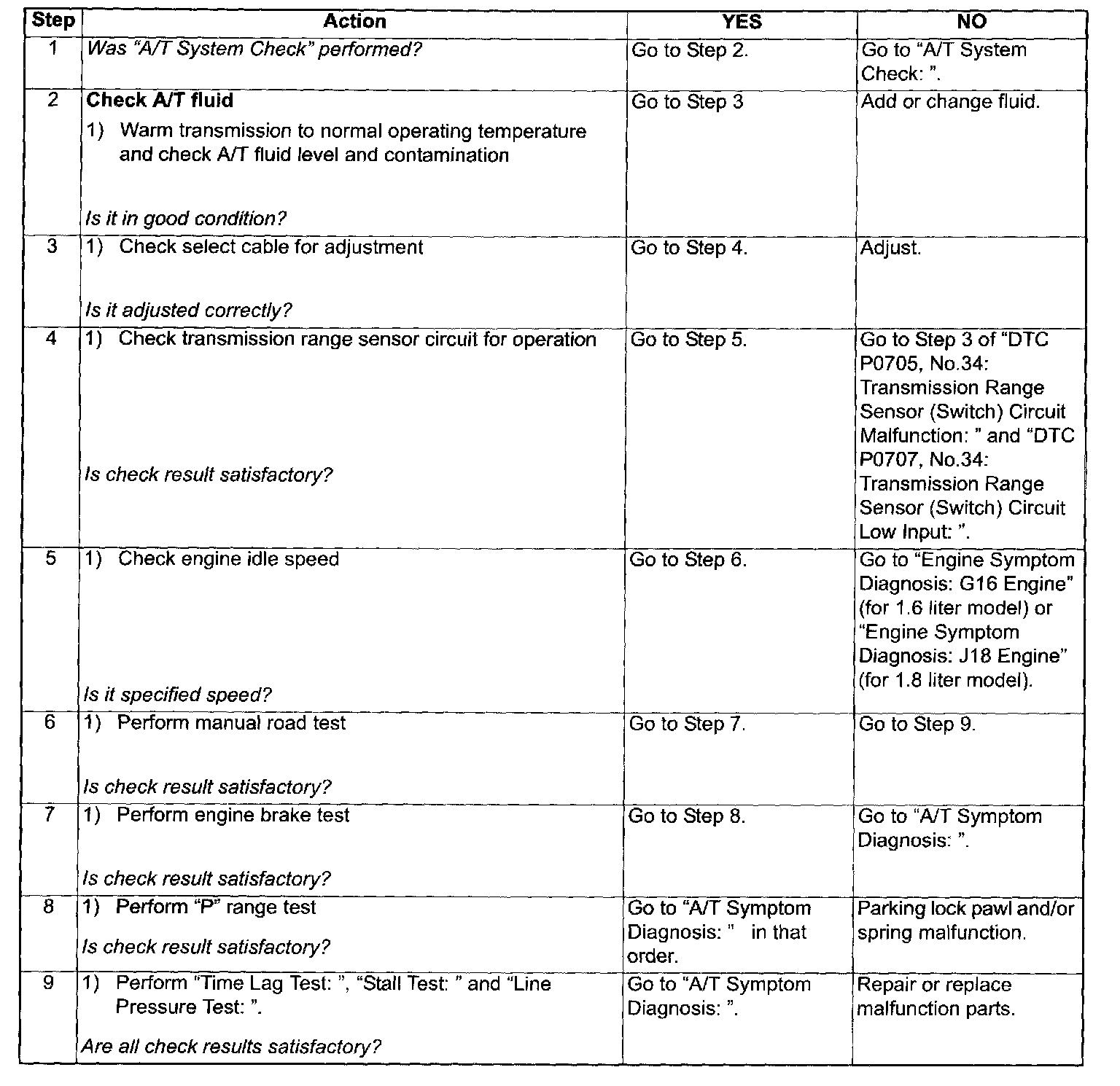

A/T Basic Check





This check is very important for troubleshooting when TCM and ECM has detected no malfunction DTC and no abnormality has been found in visual inspection.
