Seat Belt: Service and Repair

Front Seat Belt

WARNING: Be sure to read "Service Precautions of Seat Belt" before starting to work and observe every precaution during work.




Removal

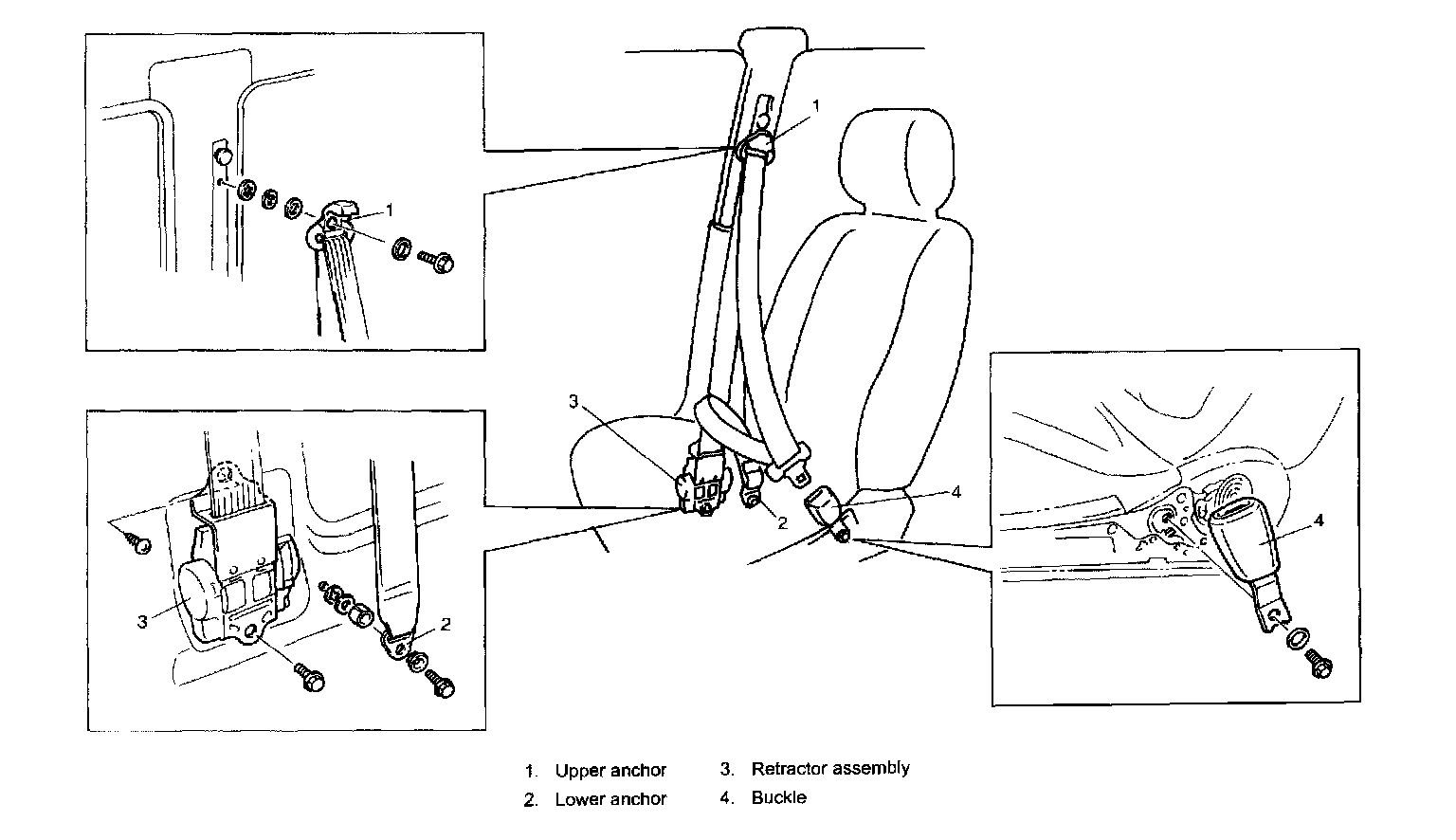

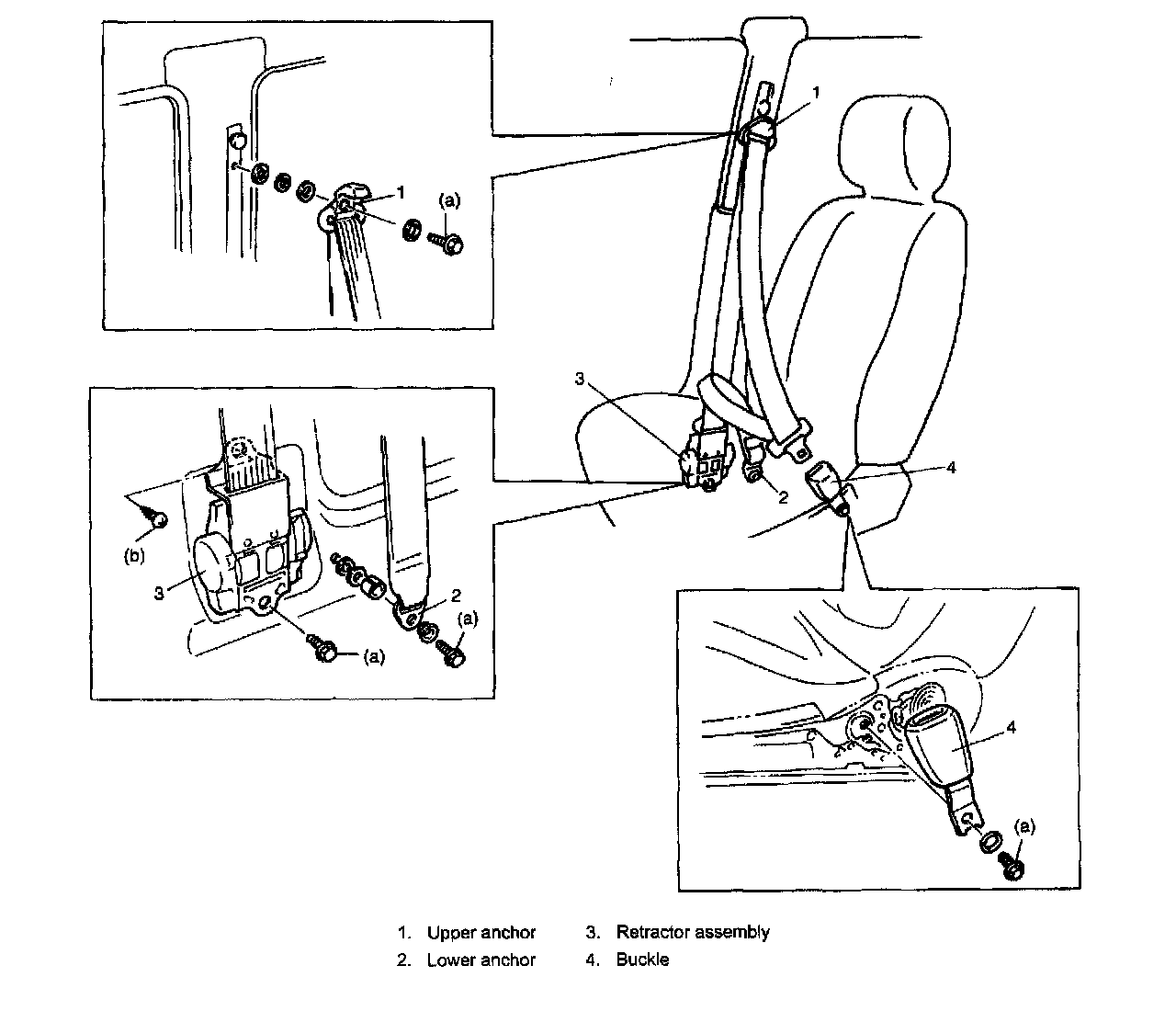

Refer to the figure to remove front seat belts.




Installation
Install in reverse order of removal, noting the following.
- Seat belt anchor bolts should have an unified fine thread (7/16-20 UNF). Under no circumstances should any different sized or metric screw threads be used.
- Be sure to tighten seat belt anchor bolts to specified torque.

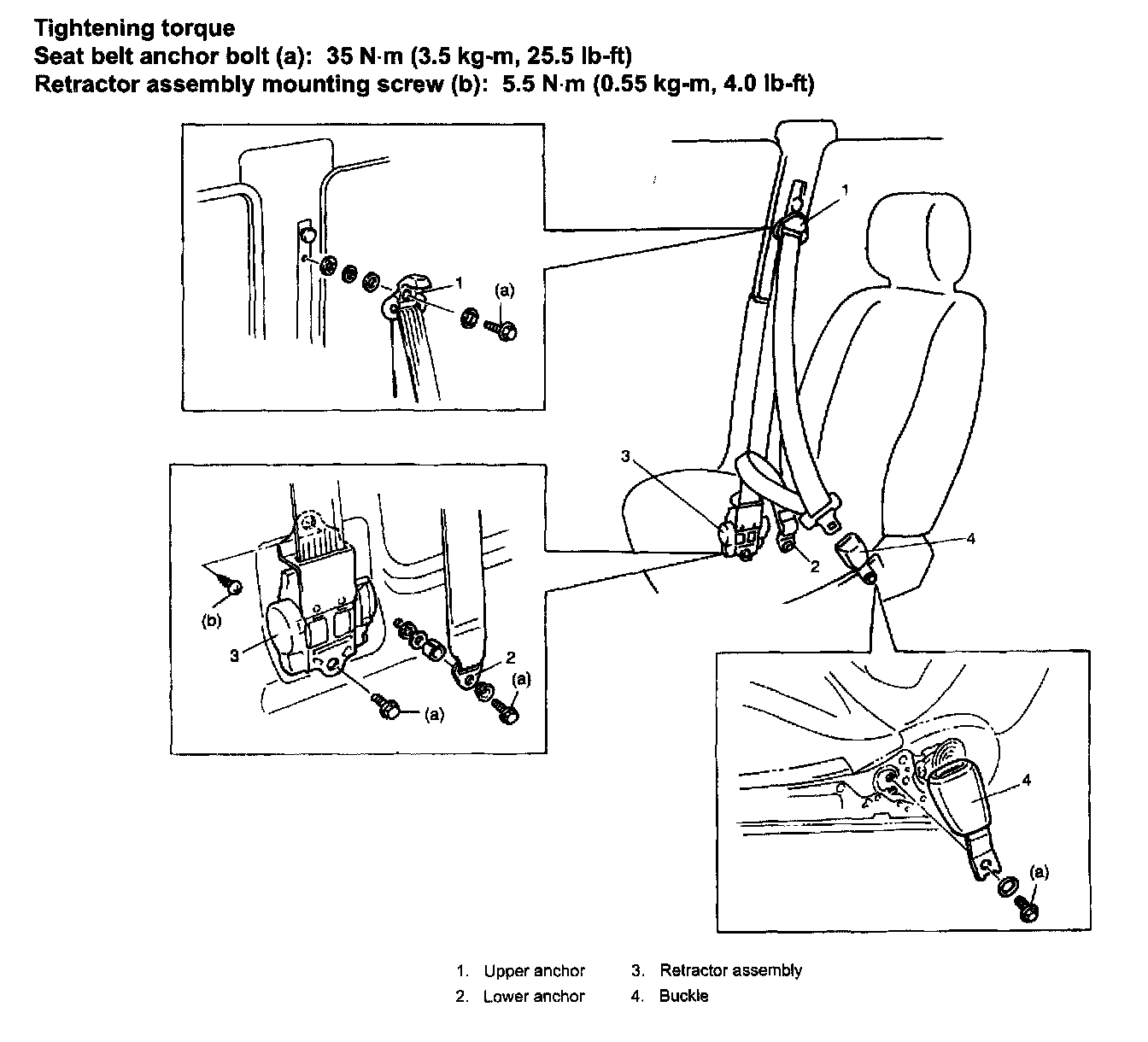

Tightening torque
Seat belt anchor bolt (a): 35 N.m (3.5 Kg-m, 25.5 lb-ft)
Retractor assembly mounting screw (b): 5.5 N.m (0.55 kg-m, 4.0 lb-ft)

Rear Seat Belt

WARNING: Be sure to read "Service Precautions of Seat Belt" before starting to work and observe every precaution during work.




Removal
Refer to the figure to remove rear seat belts.

Installation
Install the rear seat belt observing the same precautions as when installing front seat belt. Refer to "Front Seat Belt Removal and Installation".
