Air Bag Systems: Tools and Equipment

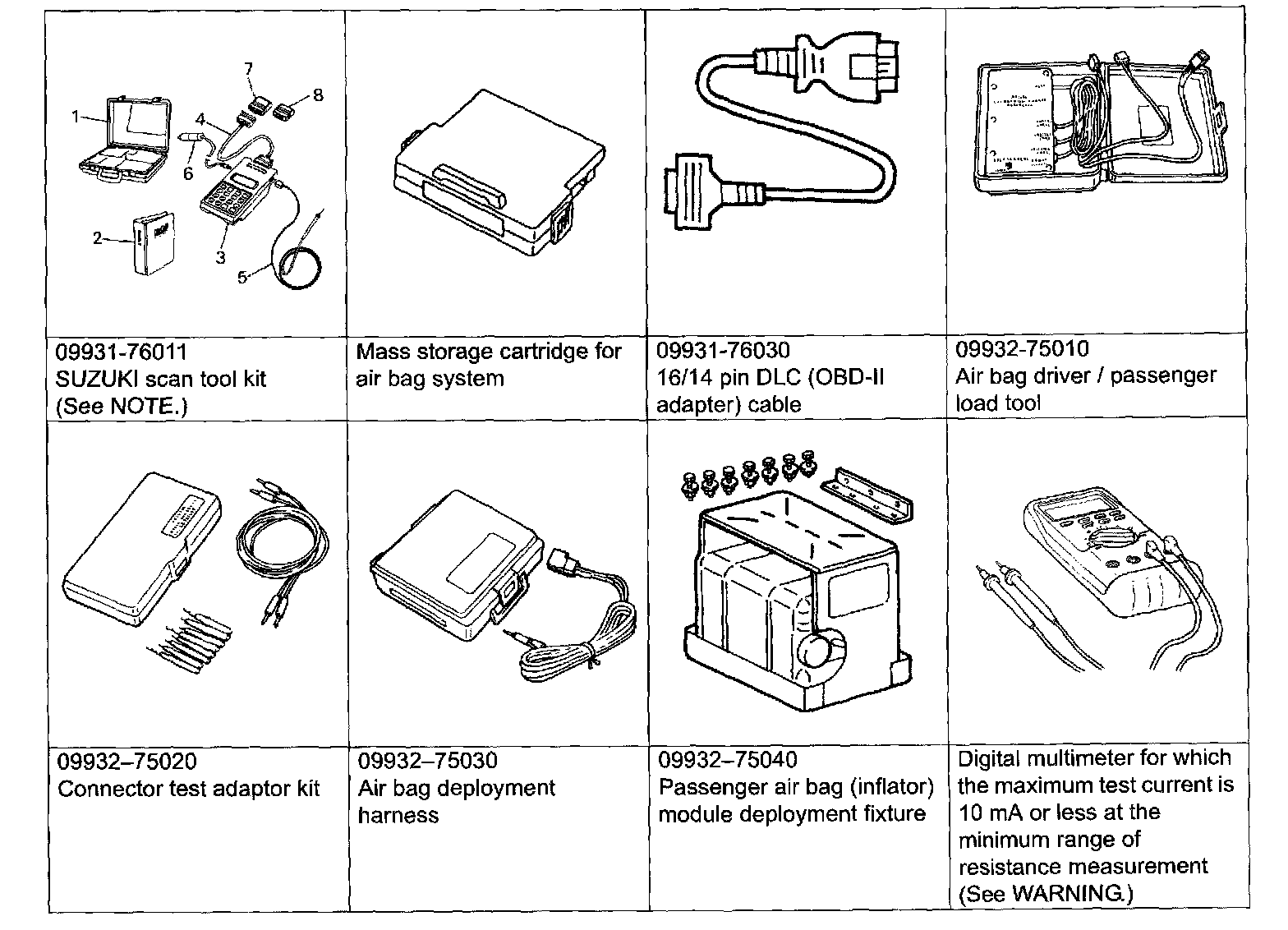

Special Tool:






WARNING: Be sure to use the specified digital multimeter. Otherwise, air bag deployment or personal injury may result.

NOTE: This kit includes the following items.
1. Storage case, 2. Operator's manual, 3. Tech 1A, 4. DLC cable, 5. Test lead/probe, 6. Power source cable, 7.DLC cable adaptor, 8. Self-test adaptor
