Electrical Diagrams

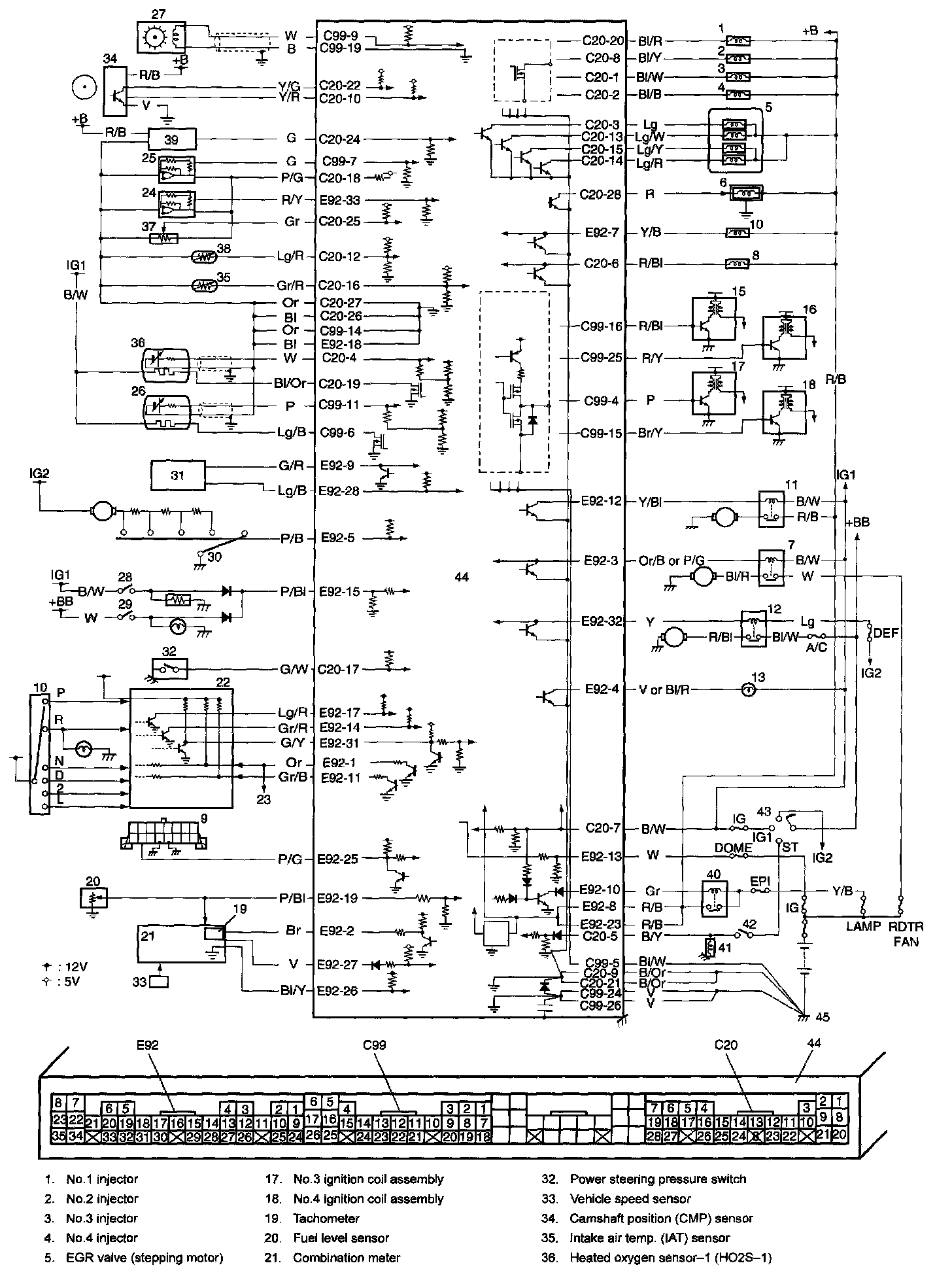

Electronic Control System Wiring Circuit Part -1:

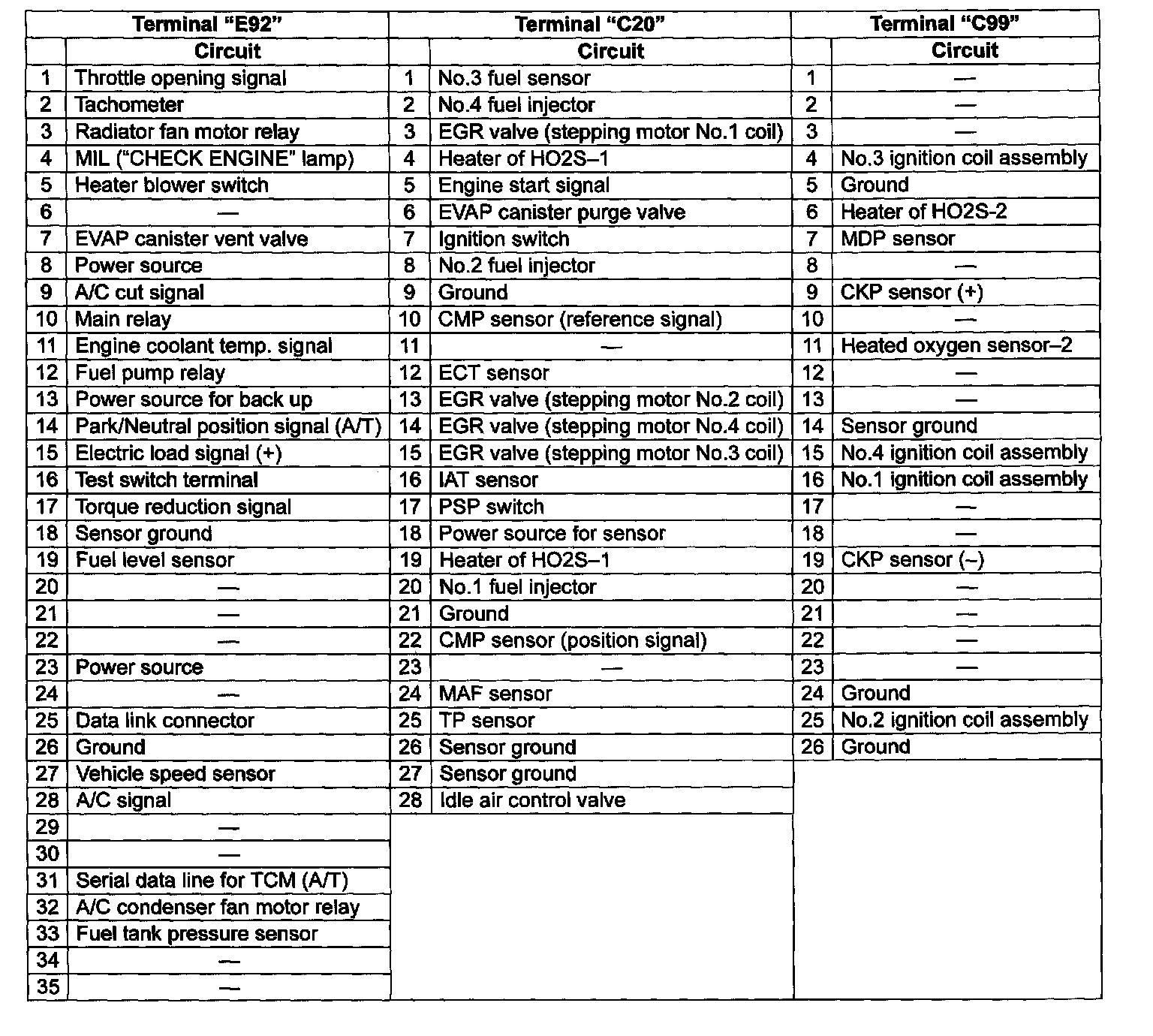

Electronic Control System Wiring Circuit Part - 2:

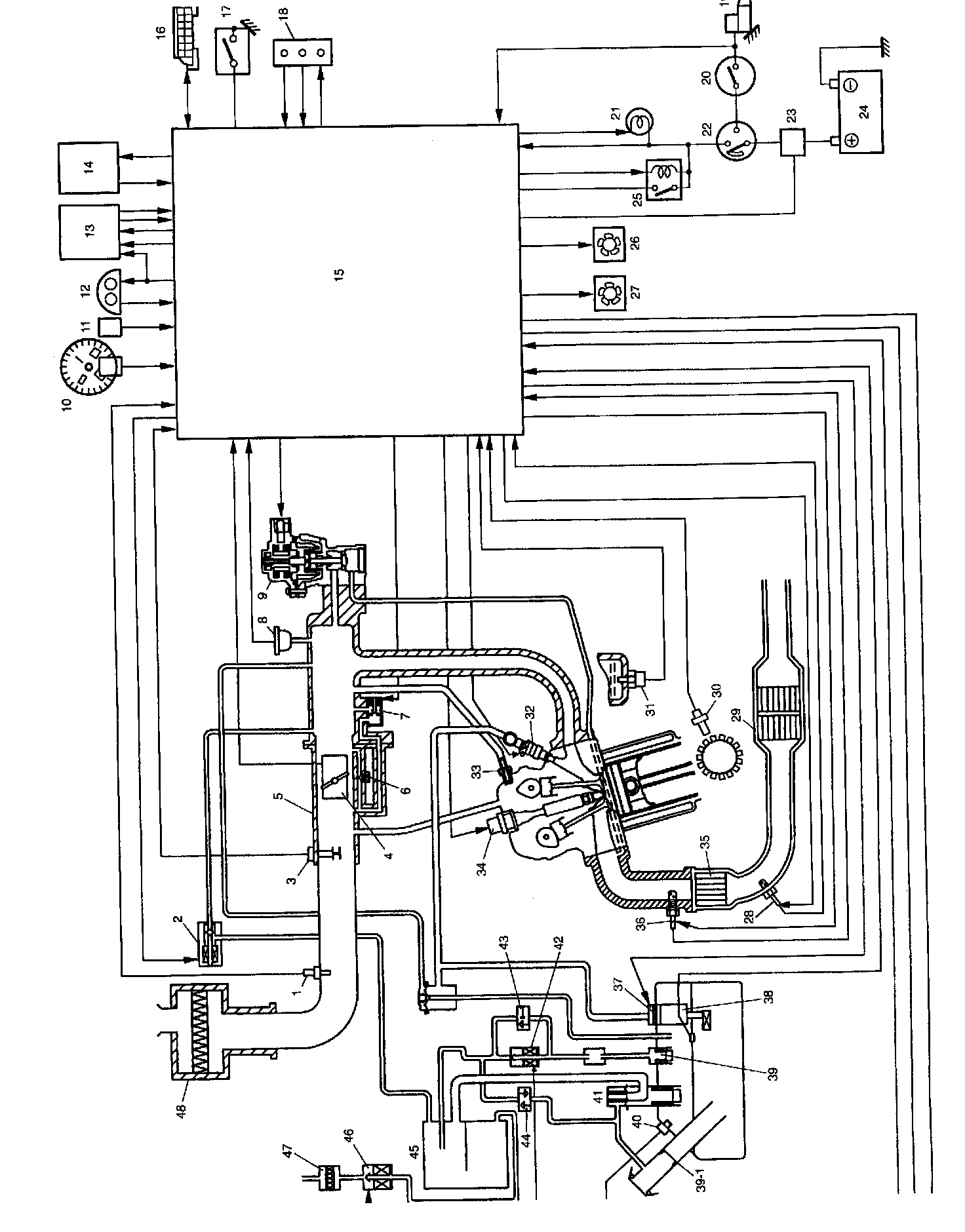

Engine And Emission Control System Diagram Part - 1:

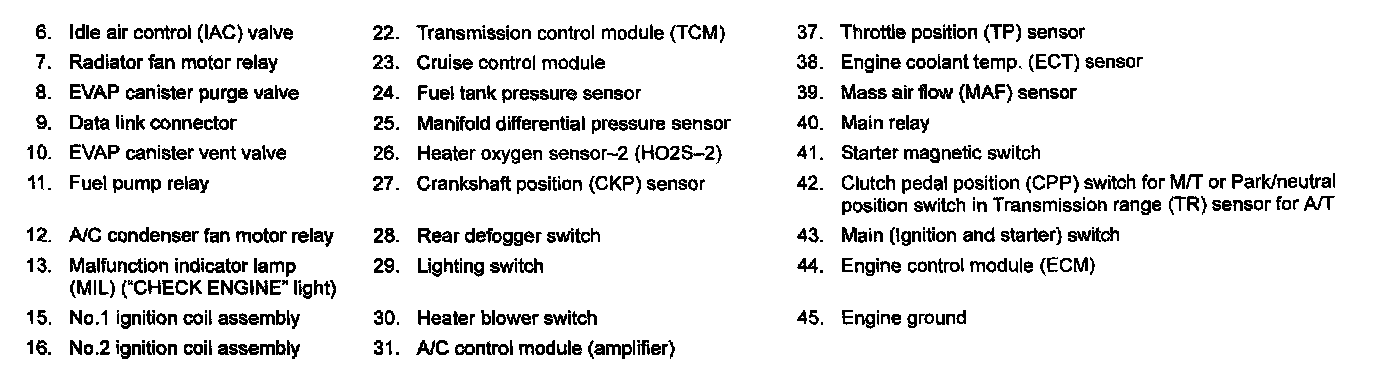

Engine And Emission Control System Diagram Part - 2:
