How to Locate Ground Point

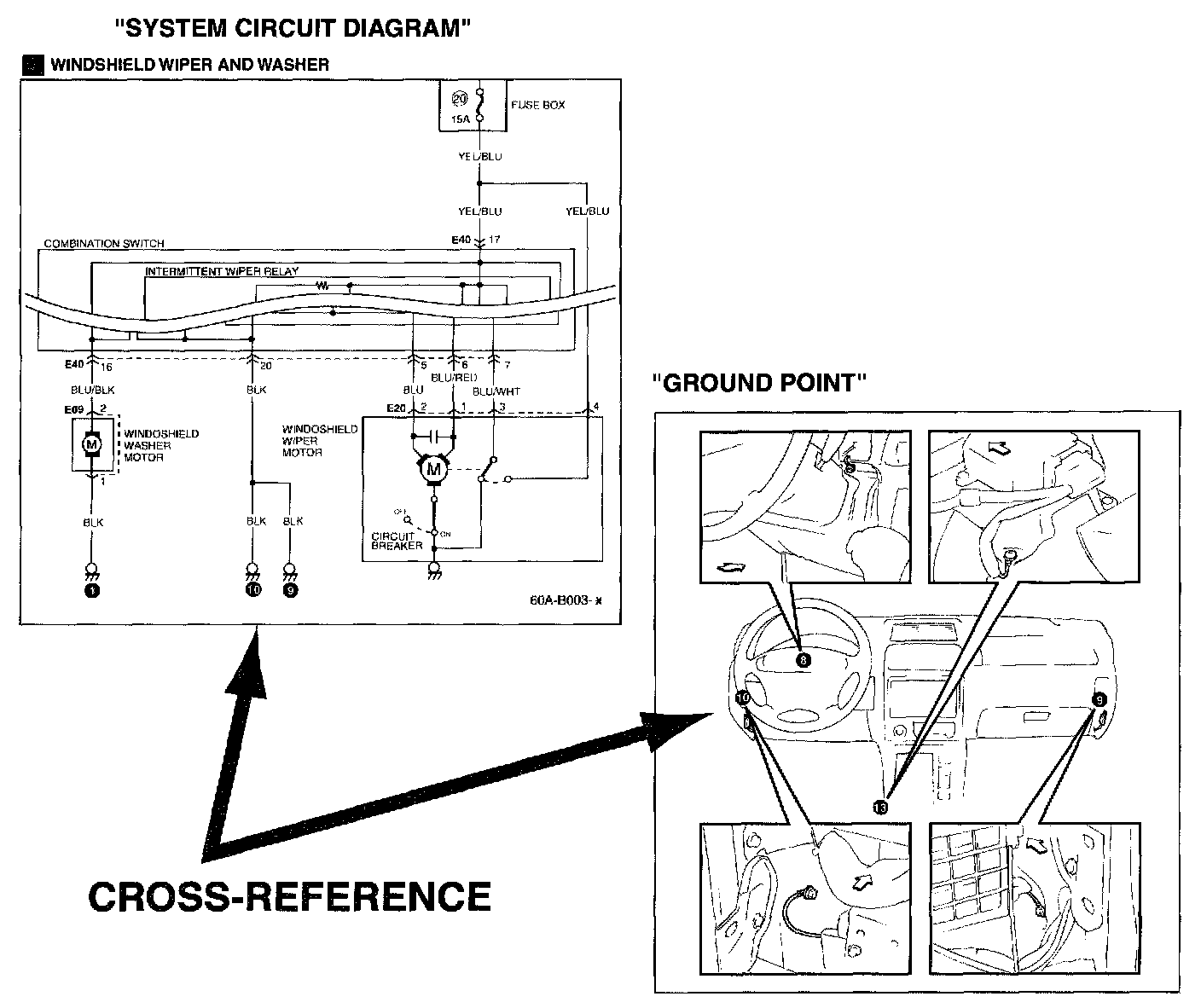

Look in "Ground Point:" for the black circle with the same numerical figure as the one described in "System Circuit Diagram:".

NOTE: If there is an electrical part whose ground point is not found in "Ground Point:", that part itself serves as a ground.
