Fuse Block: Application and ID

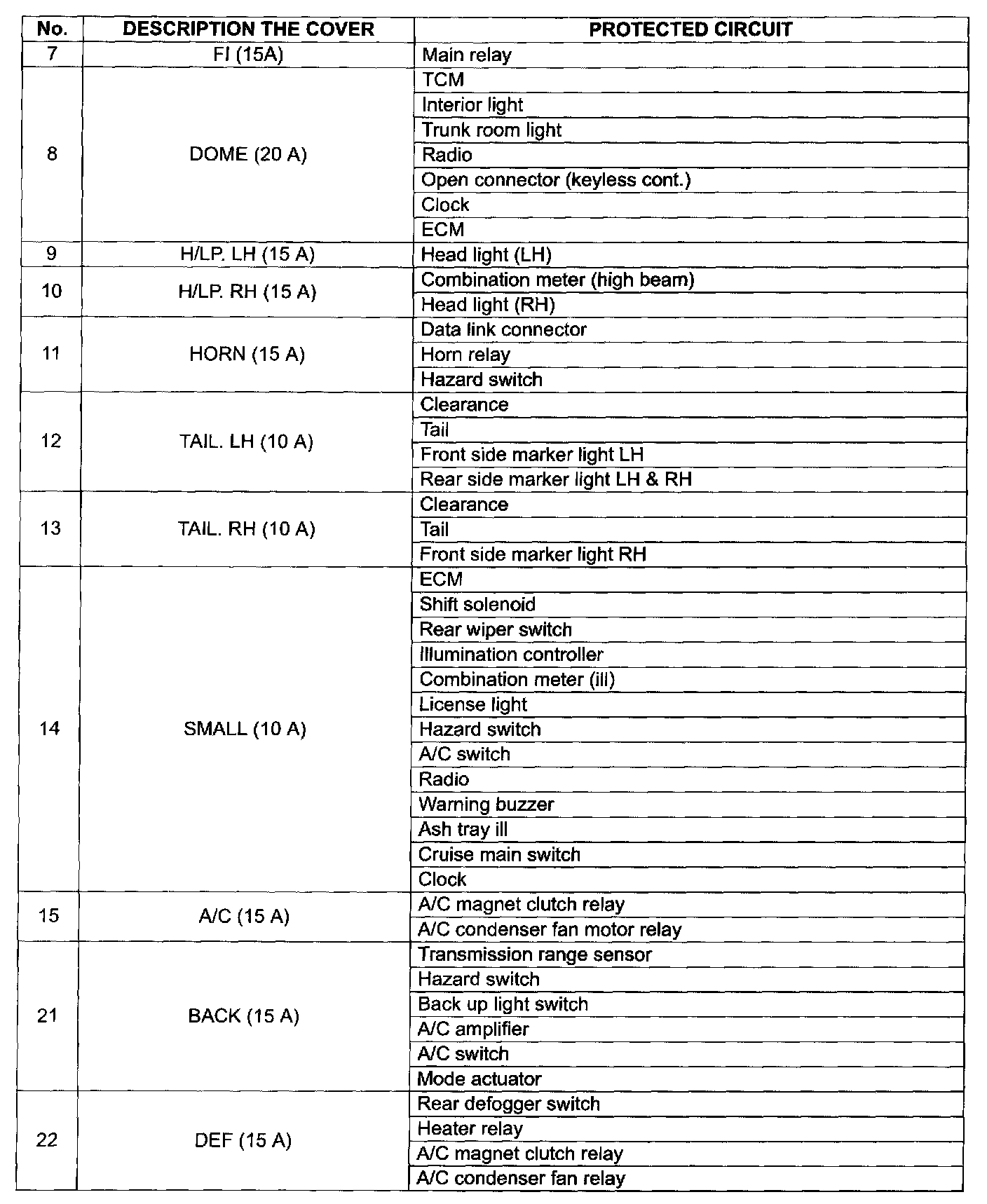

Fuse In The Fuse Box And J/B Part 1:

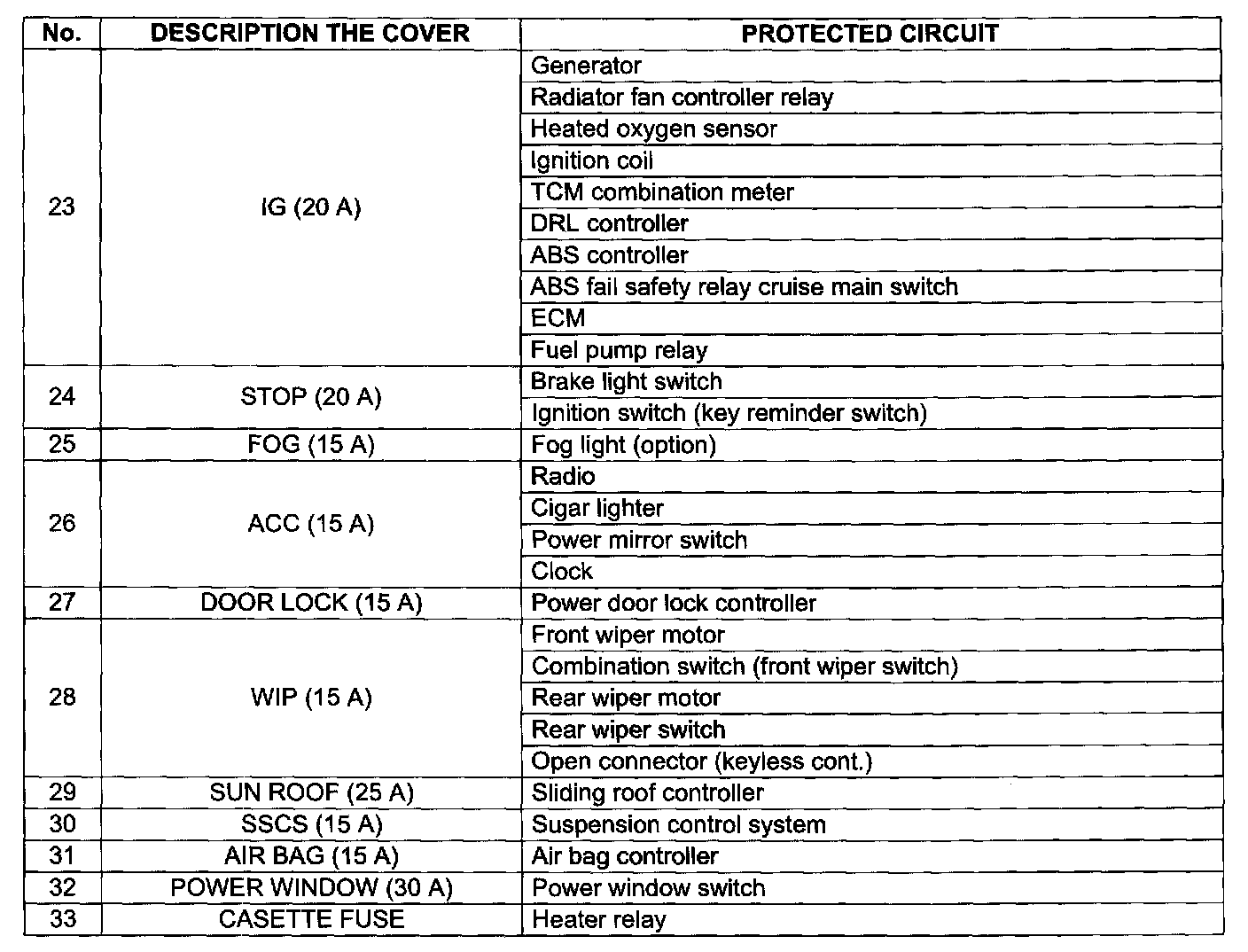

Fuse In The Fuse Box And J/B Part 2:




Fuse
The chart above shows the circuits protected by each fuse.

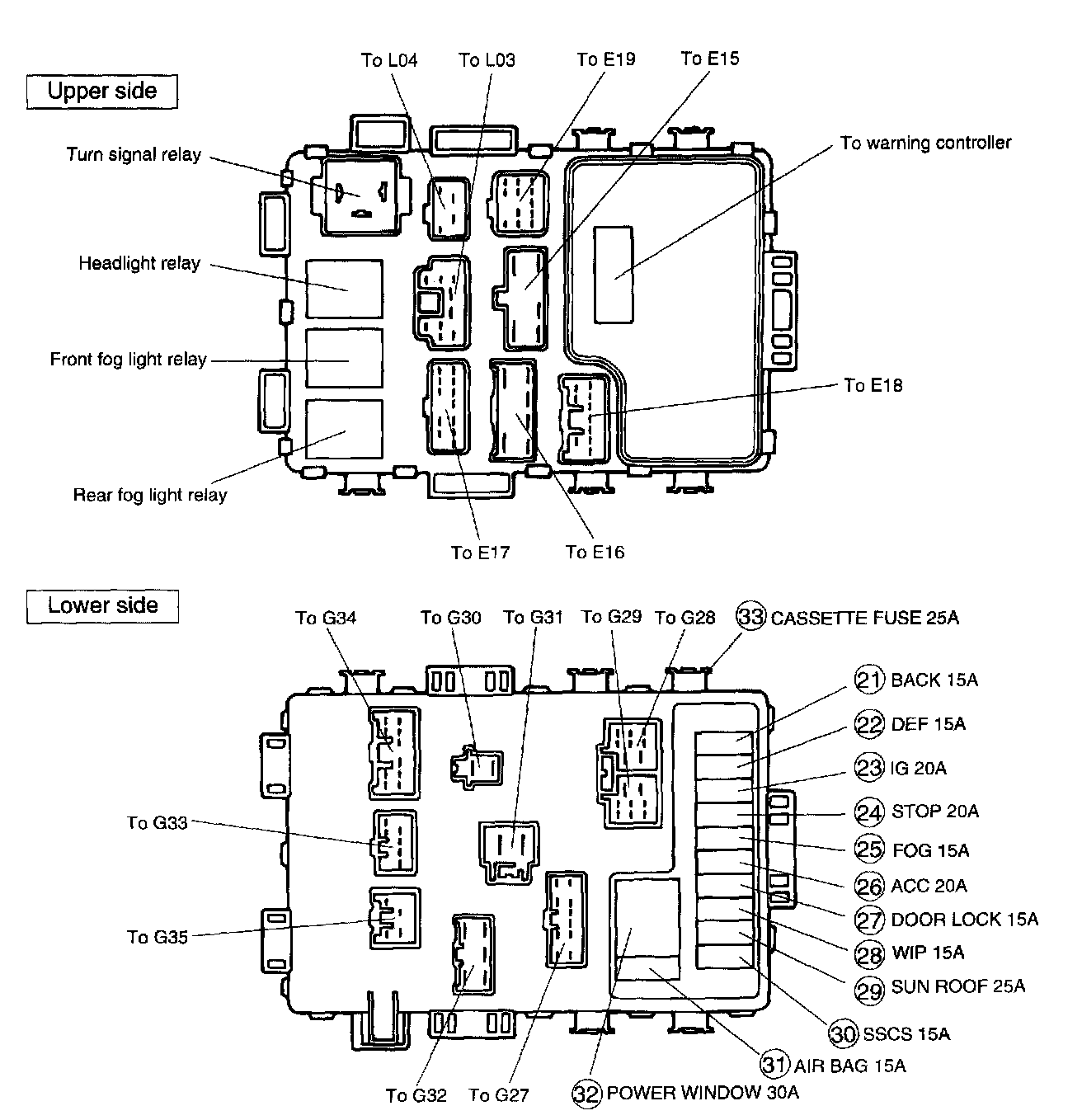

Junction/Fuse Box - Upper/Lower Side:
