P/S Fluid Leakage Check

Check

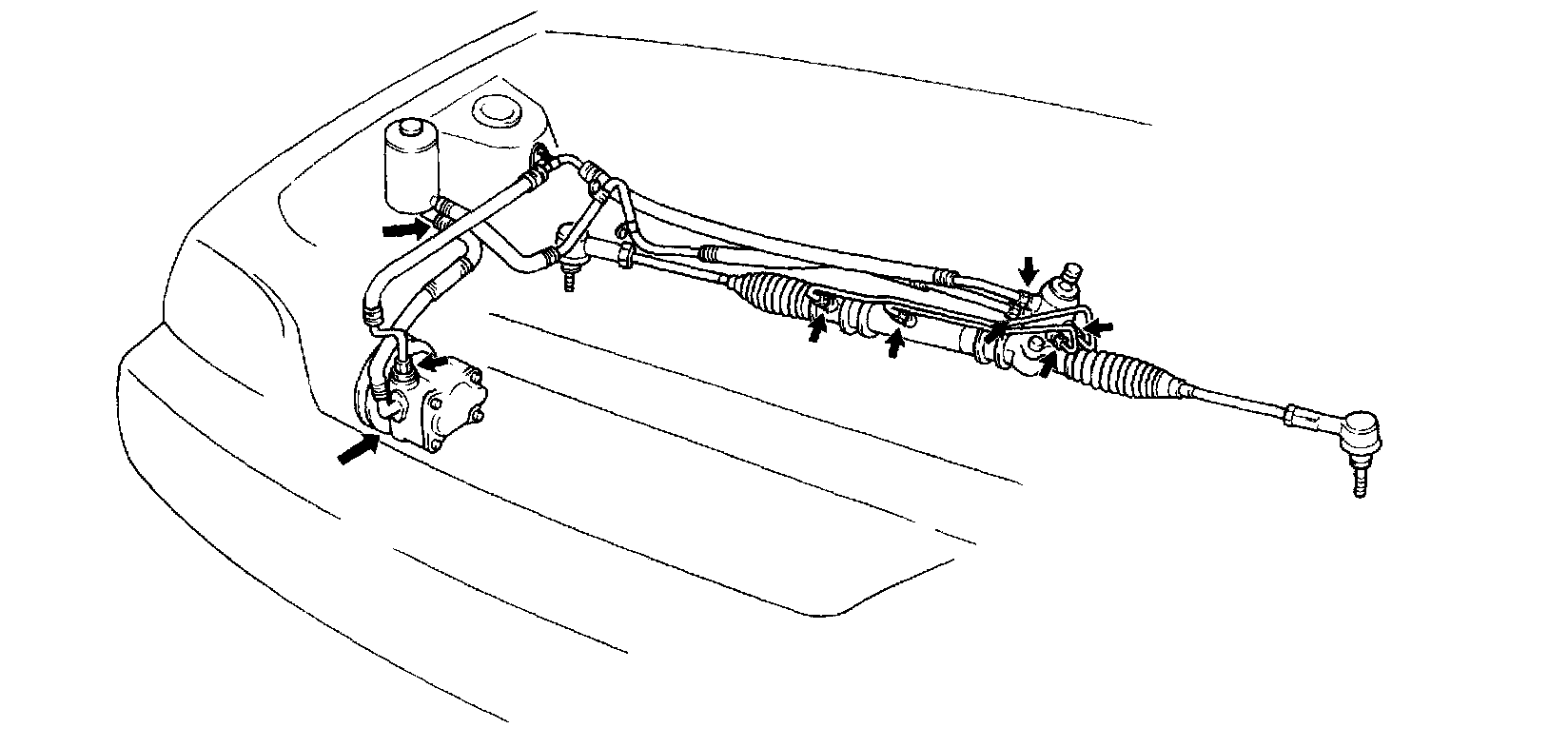

Start engine and turn steering wheel fully to the right and left so that maximum hydraulic pressure is provided. Then visually check gear box, P/S pump and oil tank themselves and each joint of their connecting pipes for leakage.

CAUTION: Never keep steering wheel turned fully for longer than 10 seconds.
