Generator Belt Tensioner

Generator Belt Tensioner
1. Remove air cleaner outlet hose.




2. Check belt for tension as follows.

[Type A]

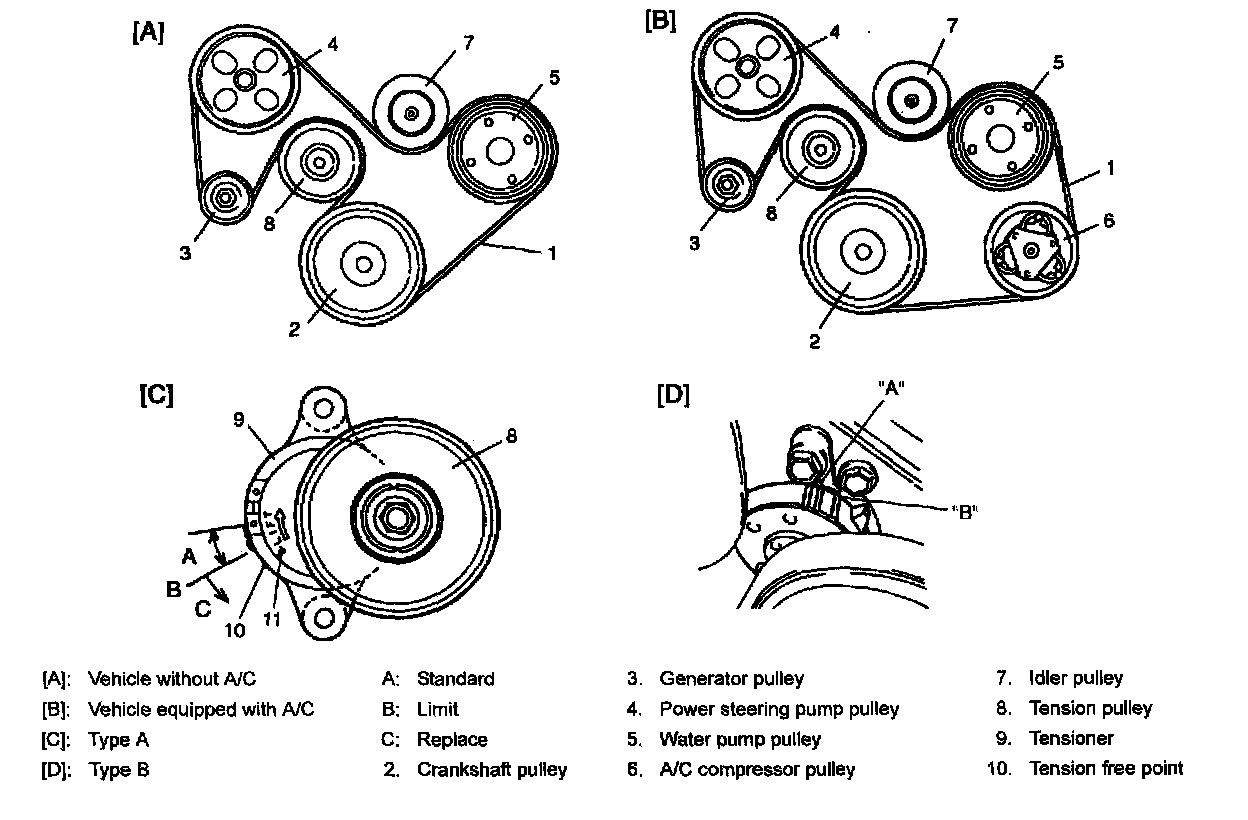

Check to make sure that tension indicator (11) points within (A) of the figure by using mirror. If the indicator comes to (C) out of (A) passing (B), replace generator belt (1).

[Type B]
Tension indicator "B" should be the right of indicator "A" as shown in the figure. If indicator "B" is found to the left of indicator "A", replace generator belt.
