Instrument Panel

E: Main Harness:



G: Instrument Panel Harness, B: A/C Harness:

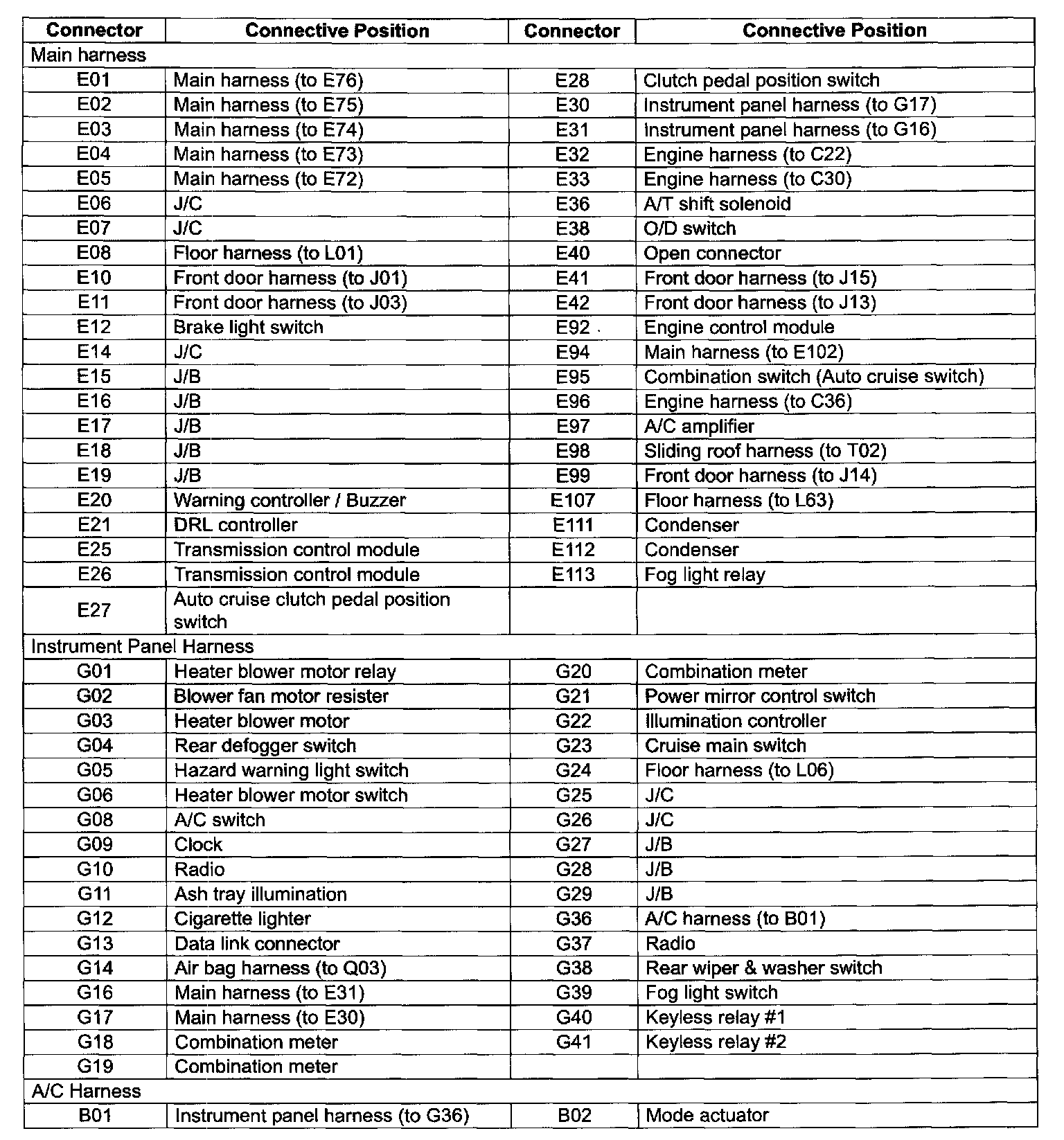

E: Main Harness, G: Instrument Panel Harness, B: A/C Harness Connective Position:

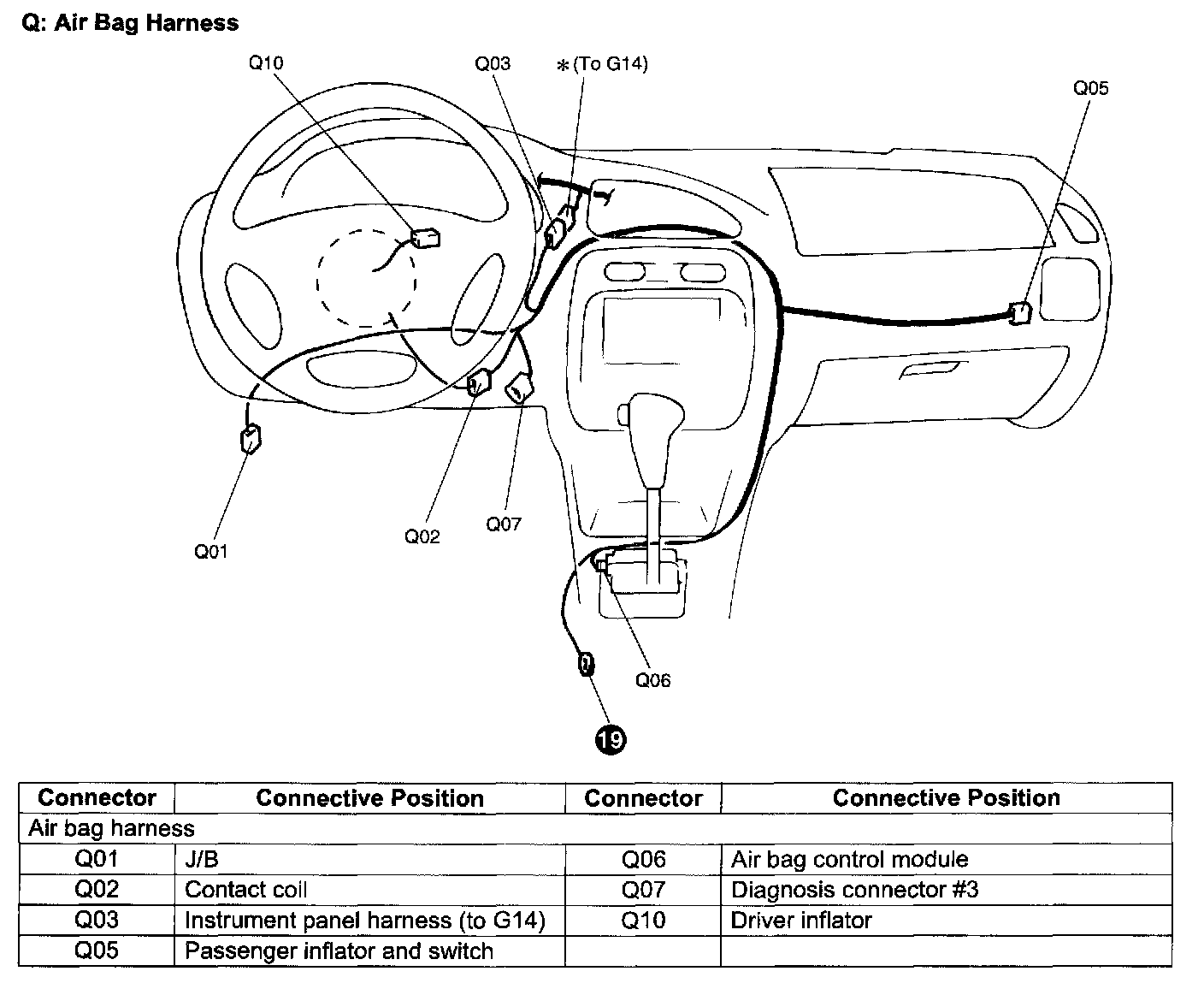

Q: Air Bag Harness Connective Position:
