Engine Room

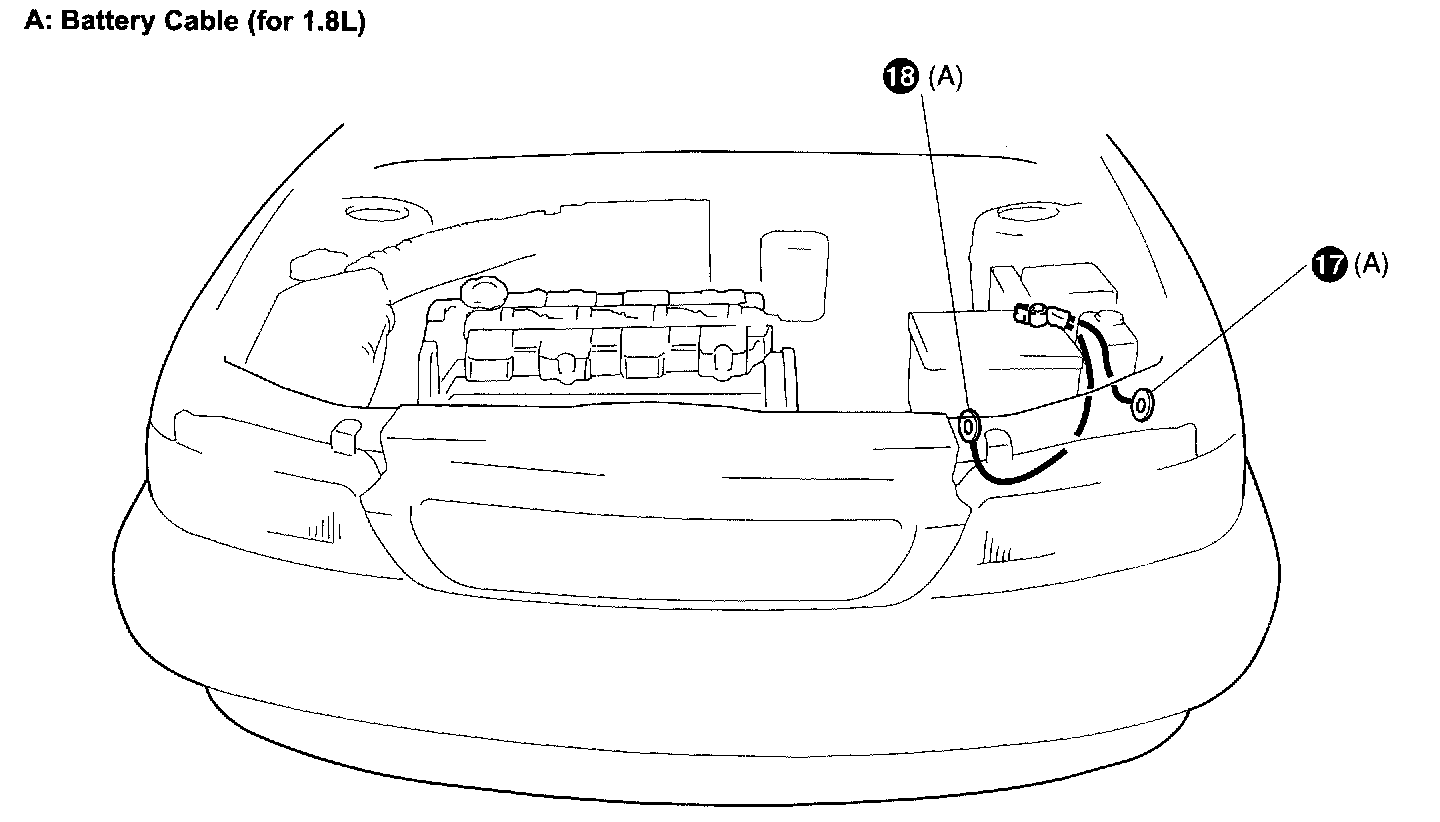

A: Battery Cable (1.8L):

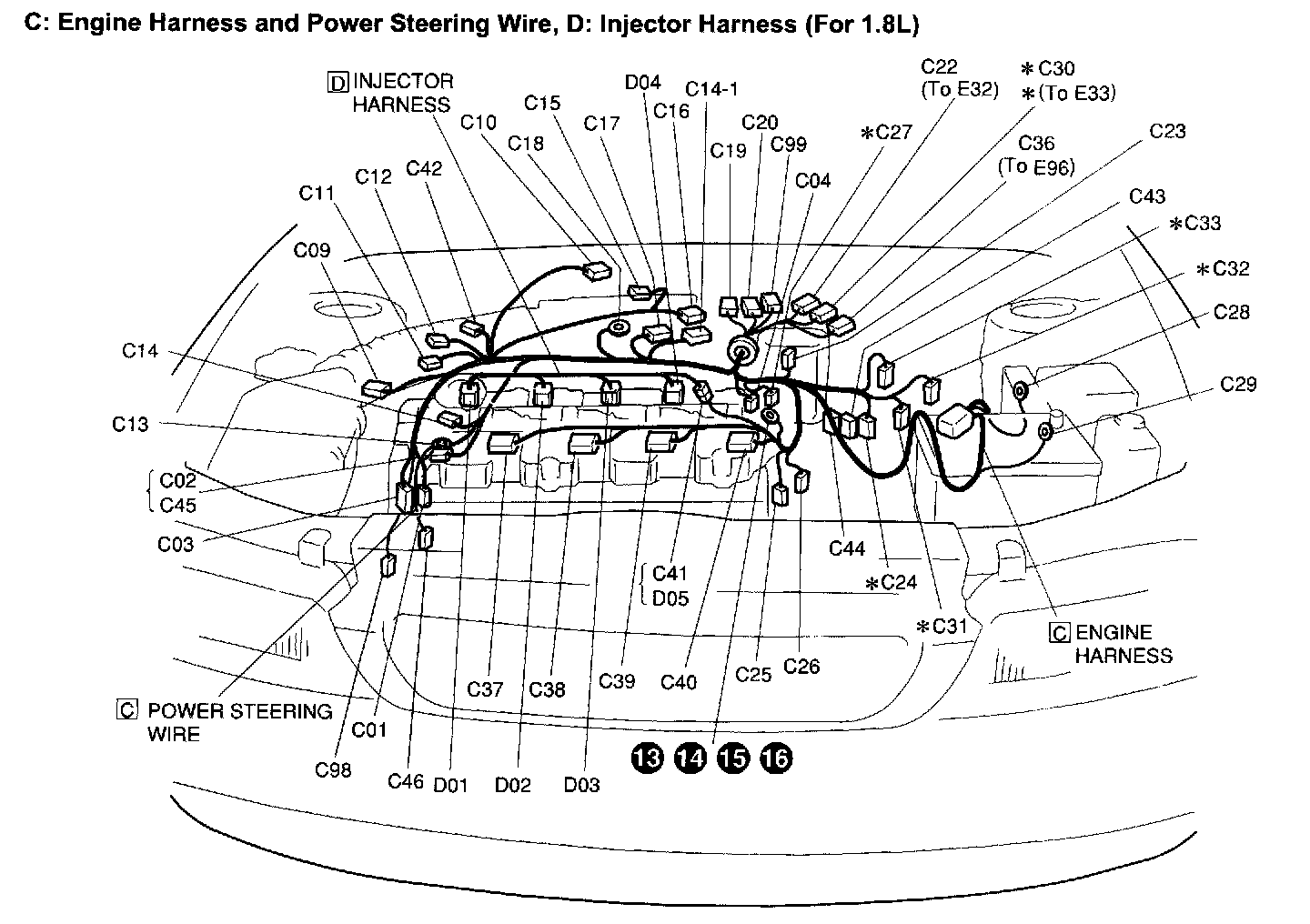

C: Engine Harness And Power Steering Wire, D: Injector Harness (1.8L):

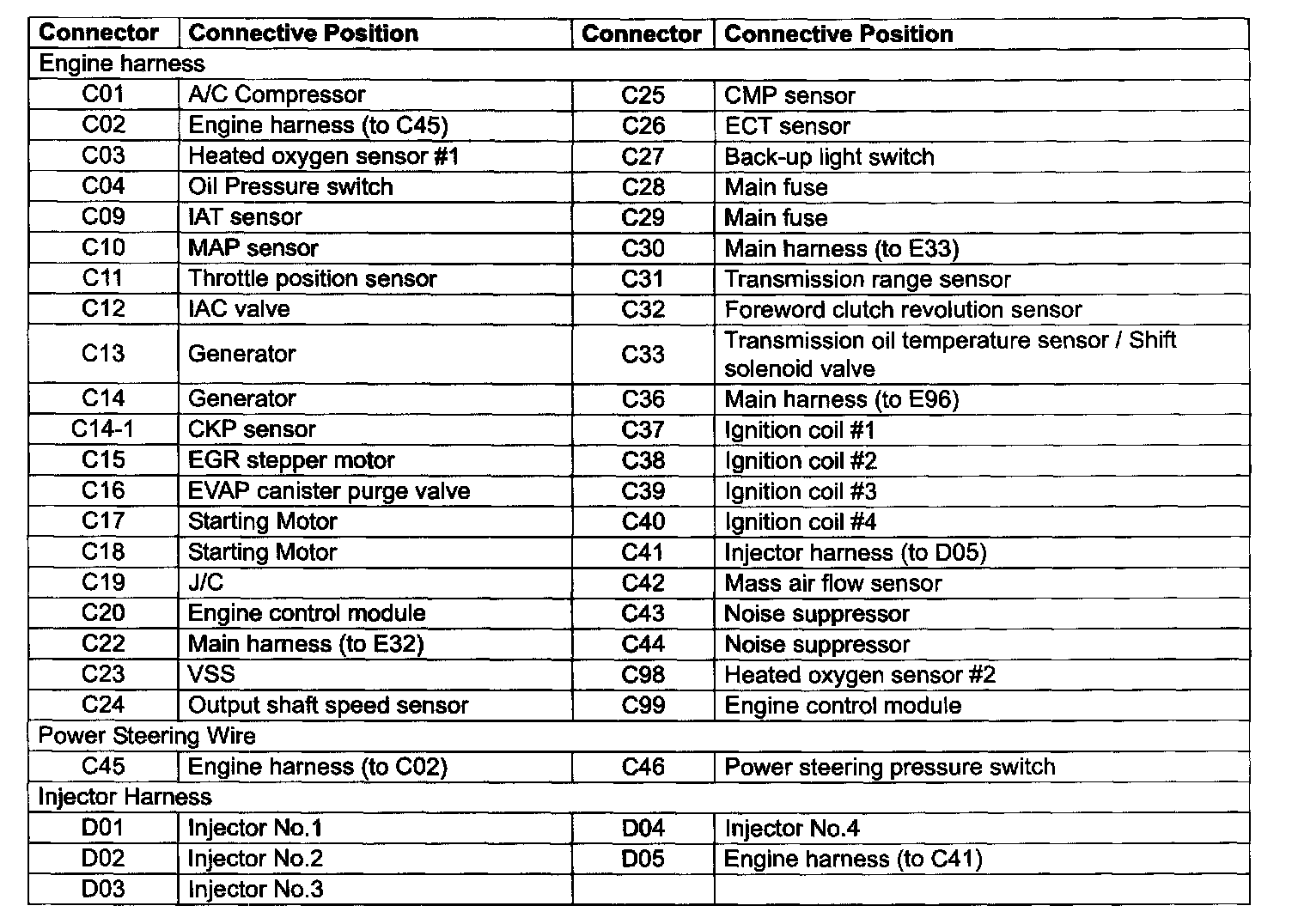

C: Engine Harness And Power Steering Wire, D: Injector Harness Connective Position:

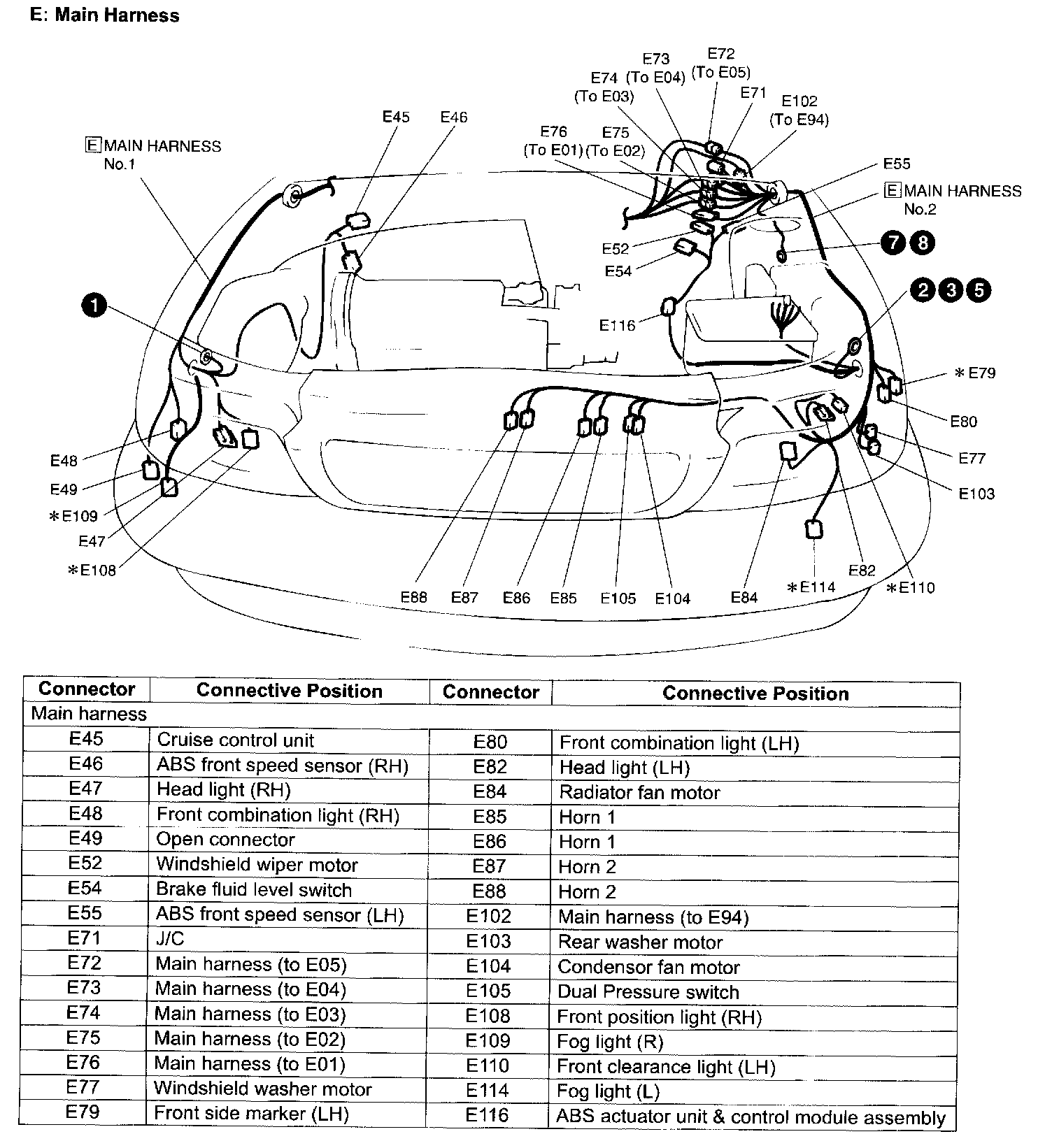

E: Main Harness Connective Position:

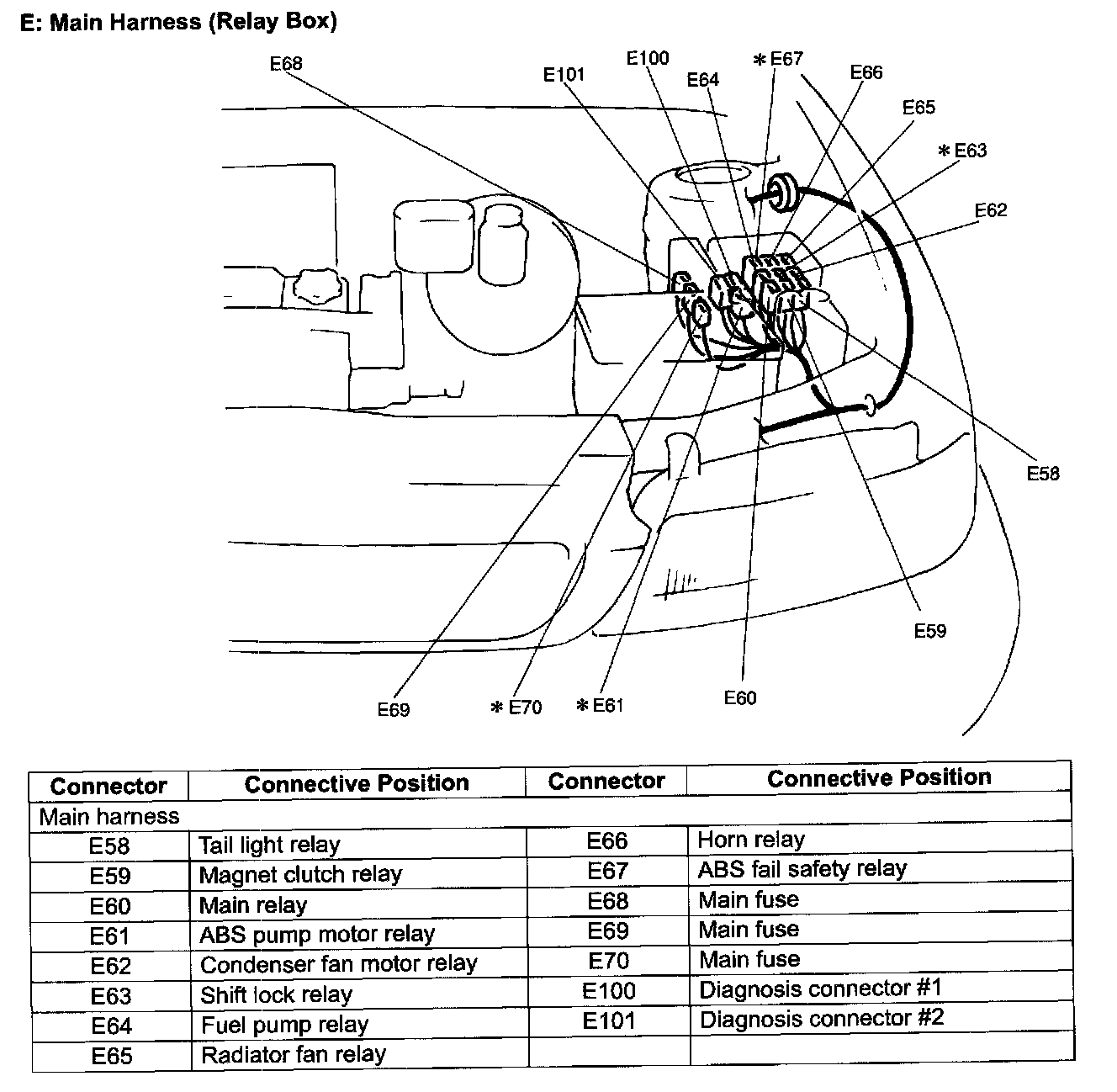

E: Main Harnes (Relay Box) Connective Position:
