A/C Compressor and/or P/S Pump Drive Belt

A/C Compressor and/or P/S Pump Drive Belt
1. Detach air cleaner assembly from vehicle body and shift its position.




2. Inspect belt for wear, deterioration and tension. Replace or adjust, if necessary.

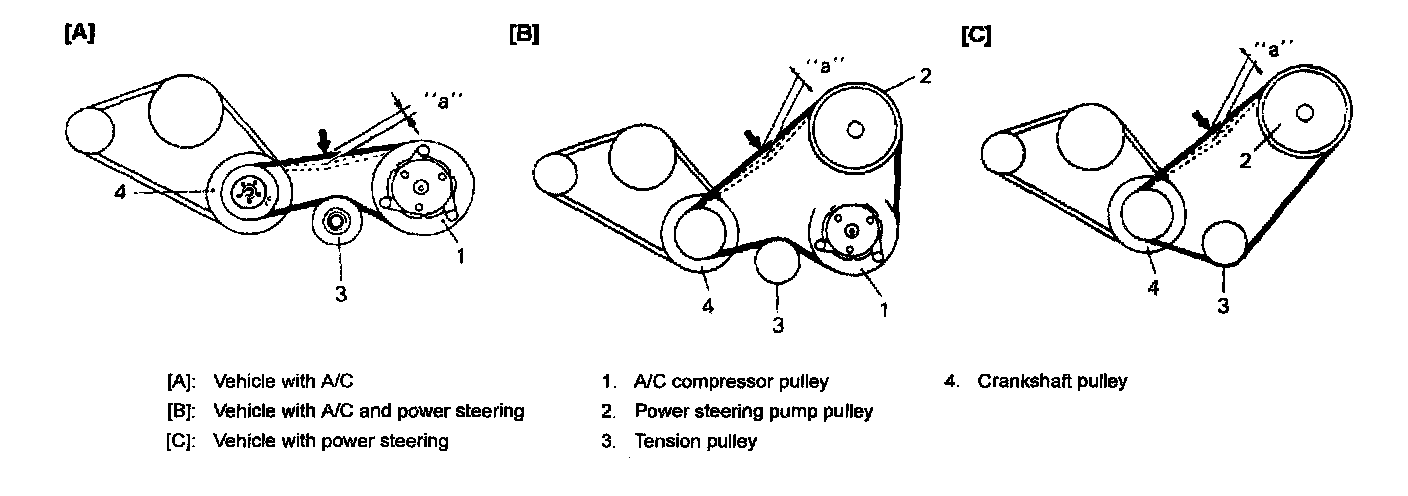

A/C compressor and/or P/S pump drive belt tension
"a": 8 - 10 mm (0.32 - 0.39 in.) deflection under 10 kg or 22 lbs pressure
