Turn Signals

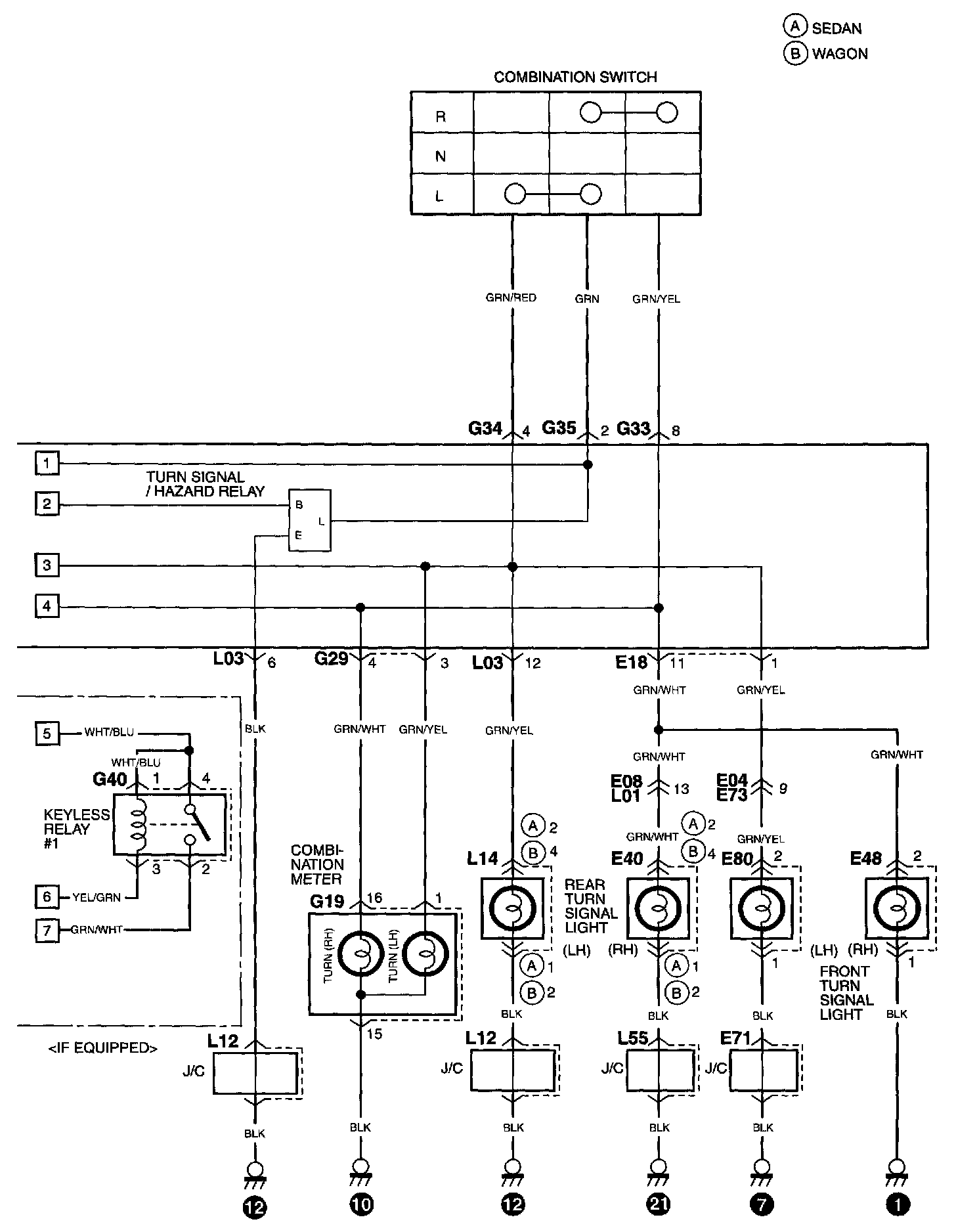

Turn Signal And Hazard Warning Light Circuit Diagram Part - 1:

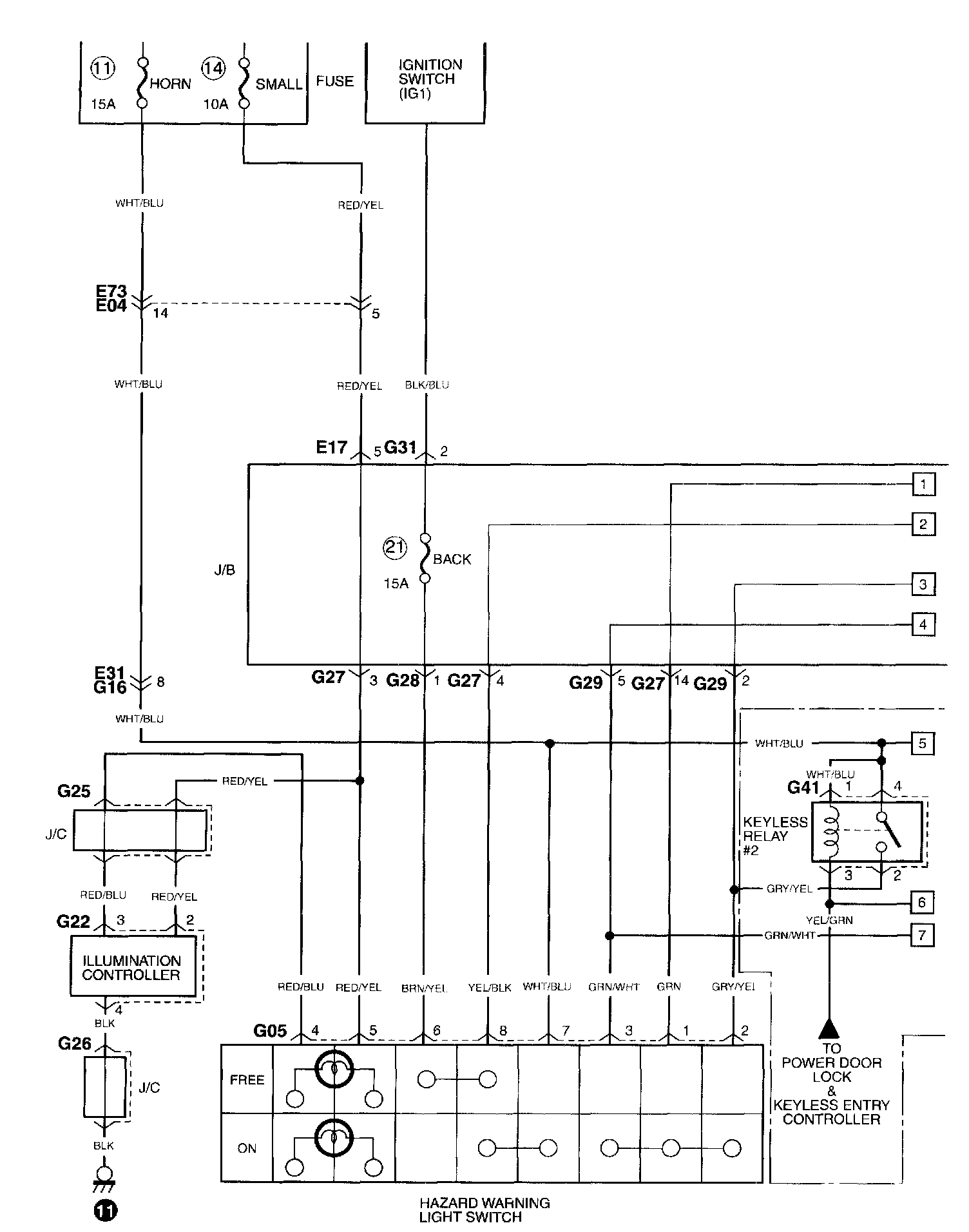

Turn Signal And Hazard Warning Light Circuit Diagram Part - 2:
