Computers and Control Systems

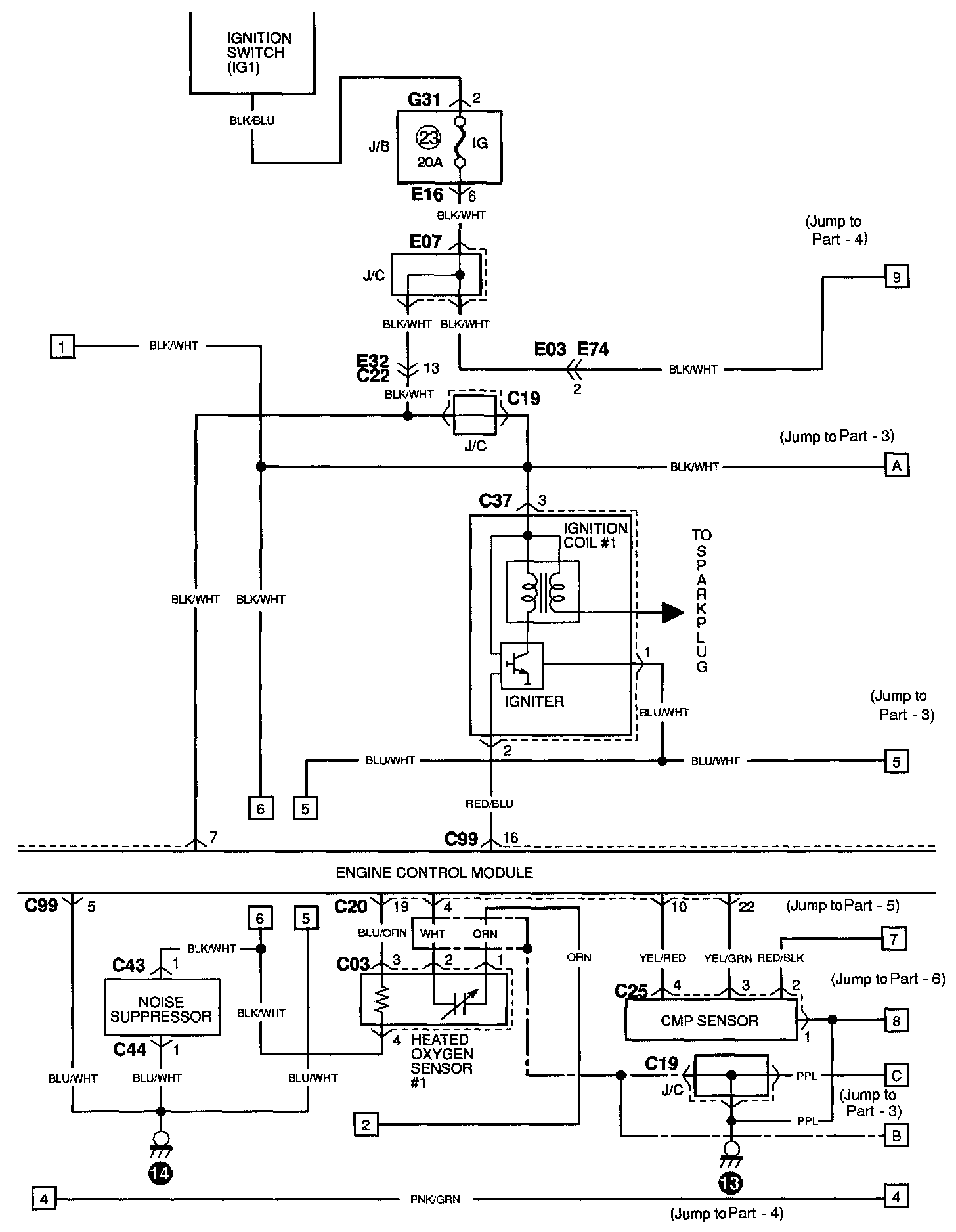

Electronic Fuel Injection System Circuit Diagram Part - 1:

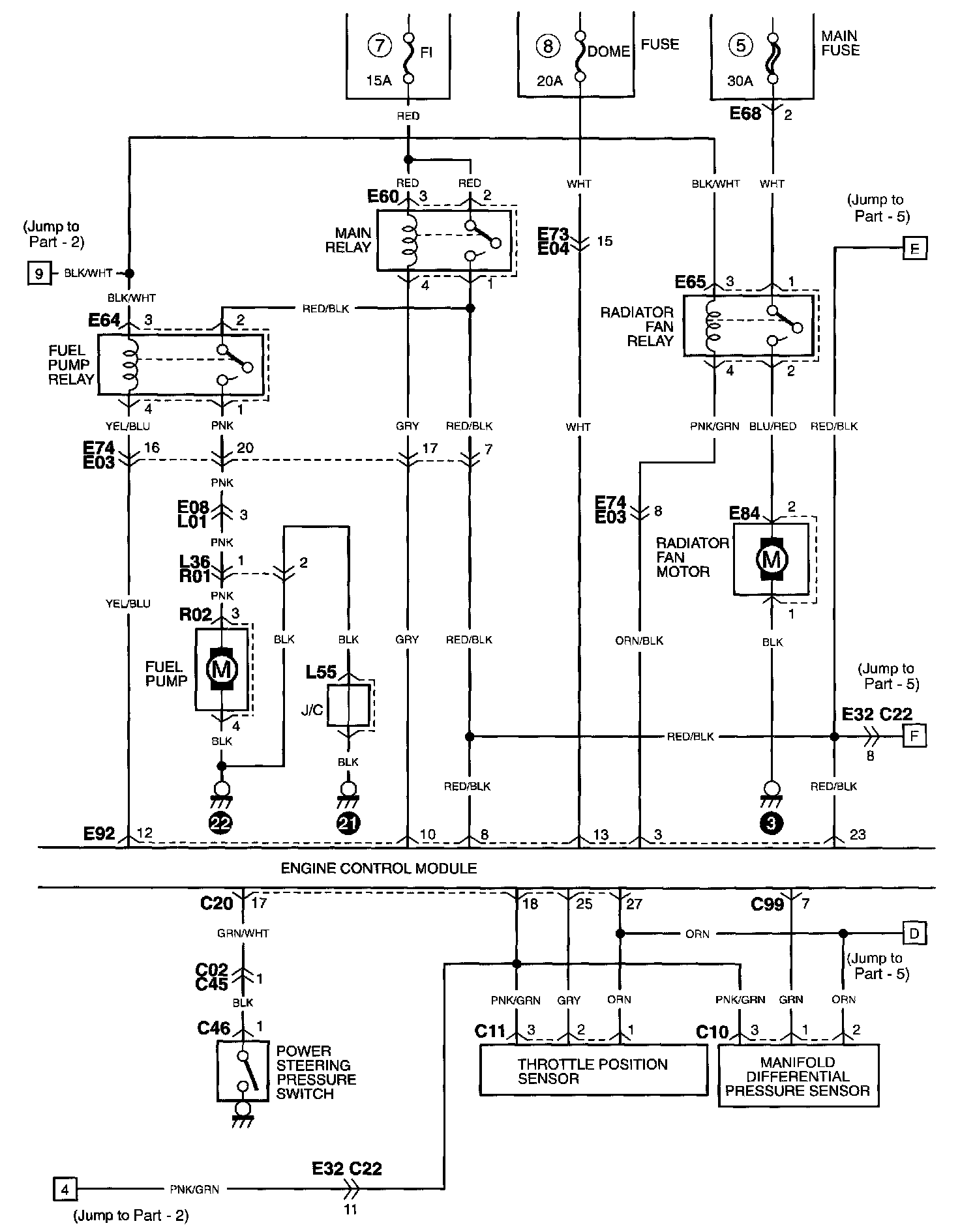

Electronic Fuel Injection System Circuit Diagram Part - 2:

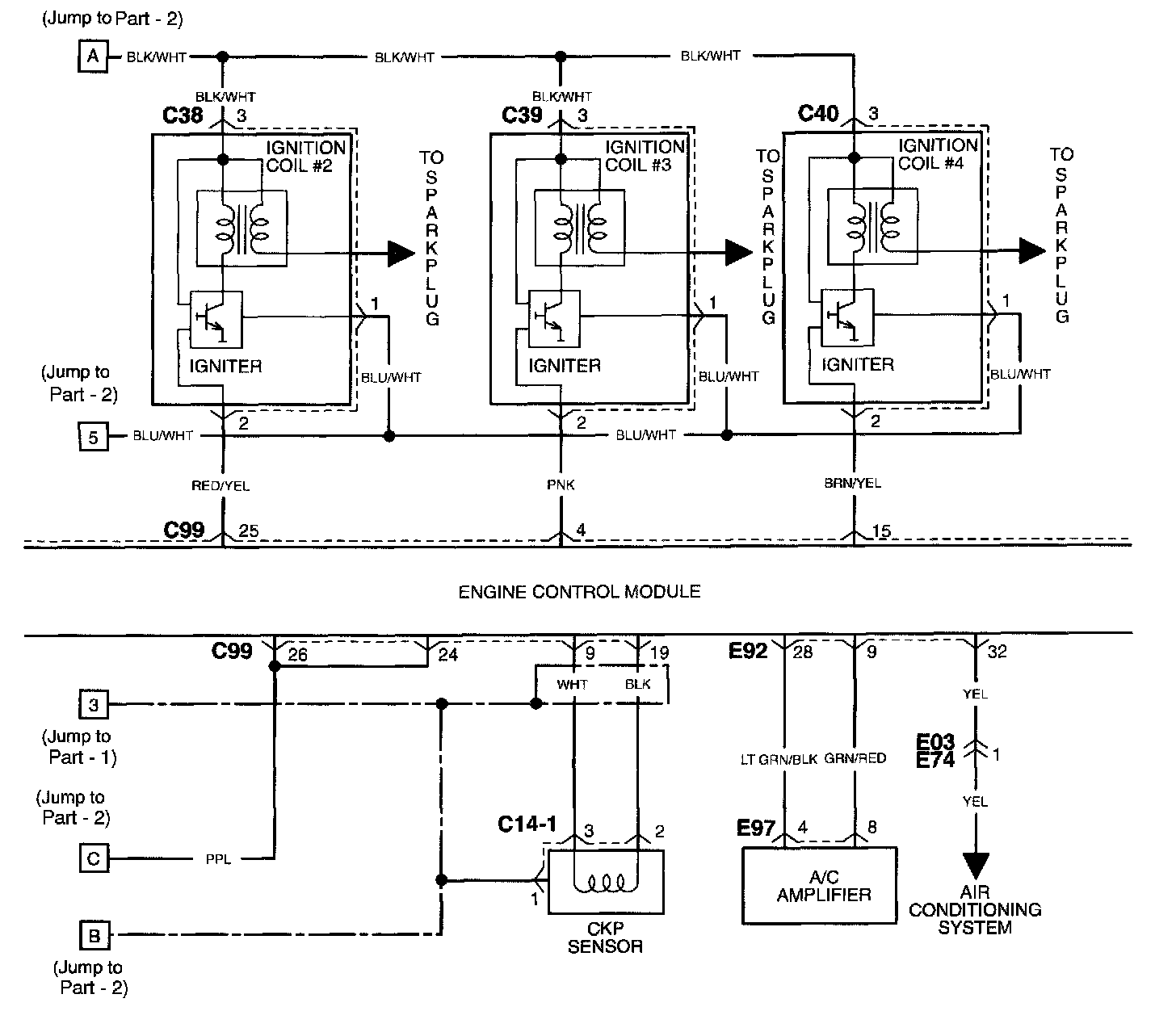

Electronic Fuel Injection System Circuit Diagram Part - 3:

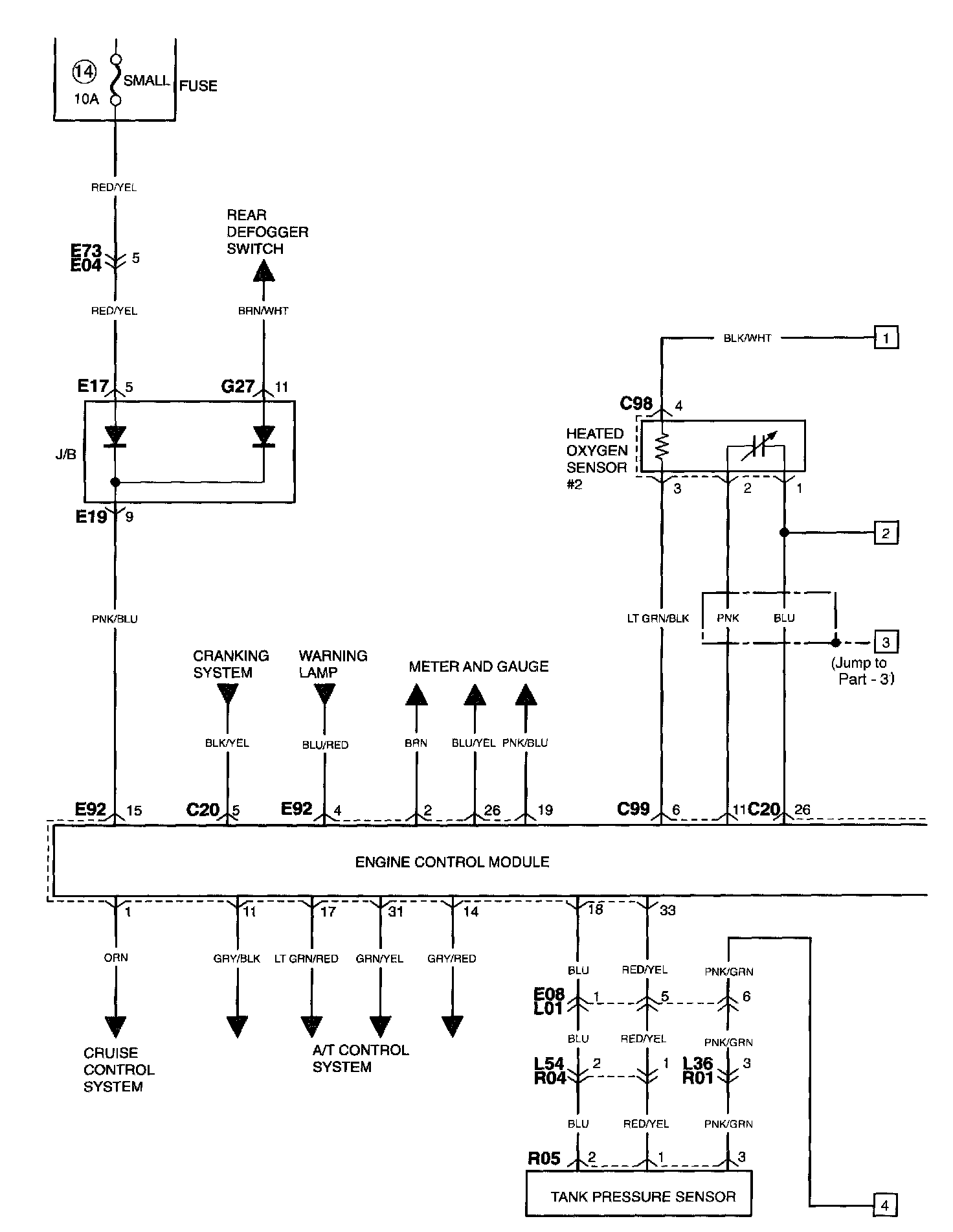

Electronic Fuel Injection System Circuit Diagram Part - 4:

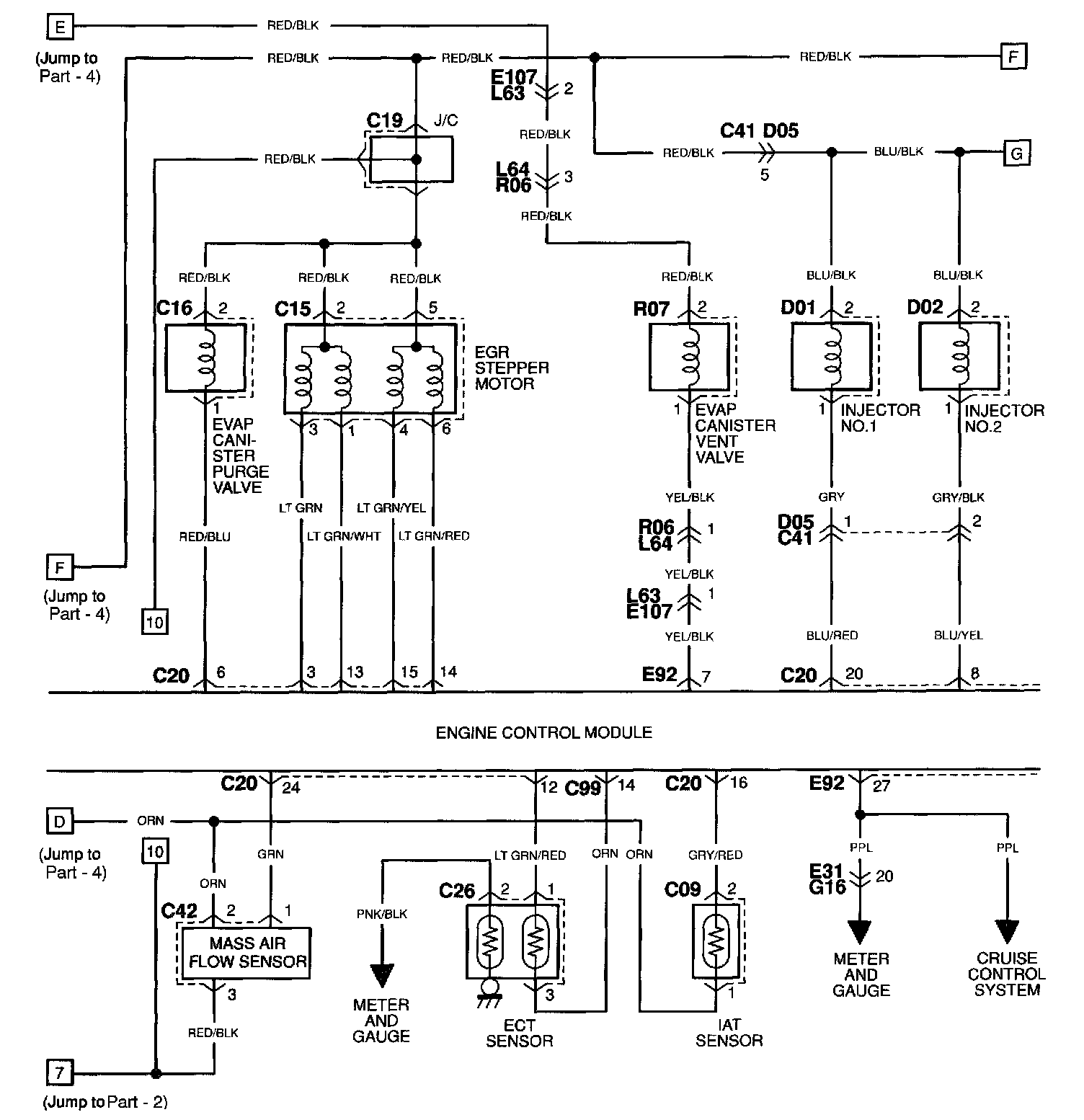

Electronic Fuel Injection System Circuit Diagram Part - 5:

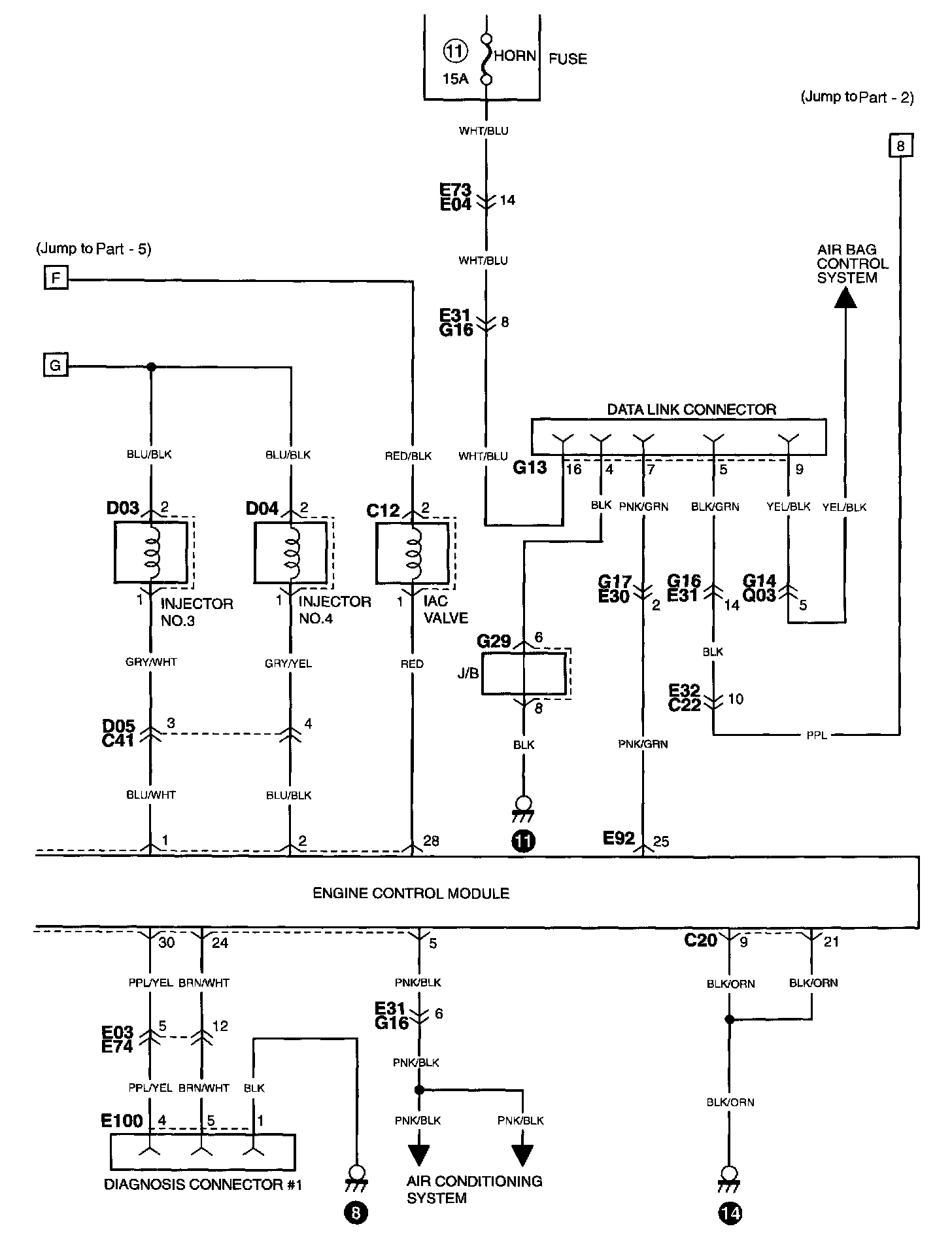

Electronic Fuel Injection System Circuit Diagram Part - 6:
