Power Locks

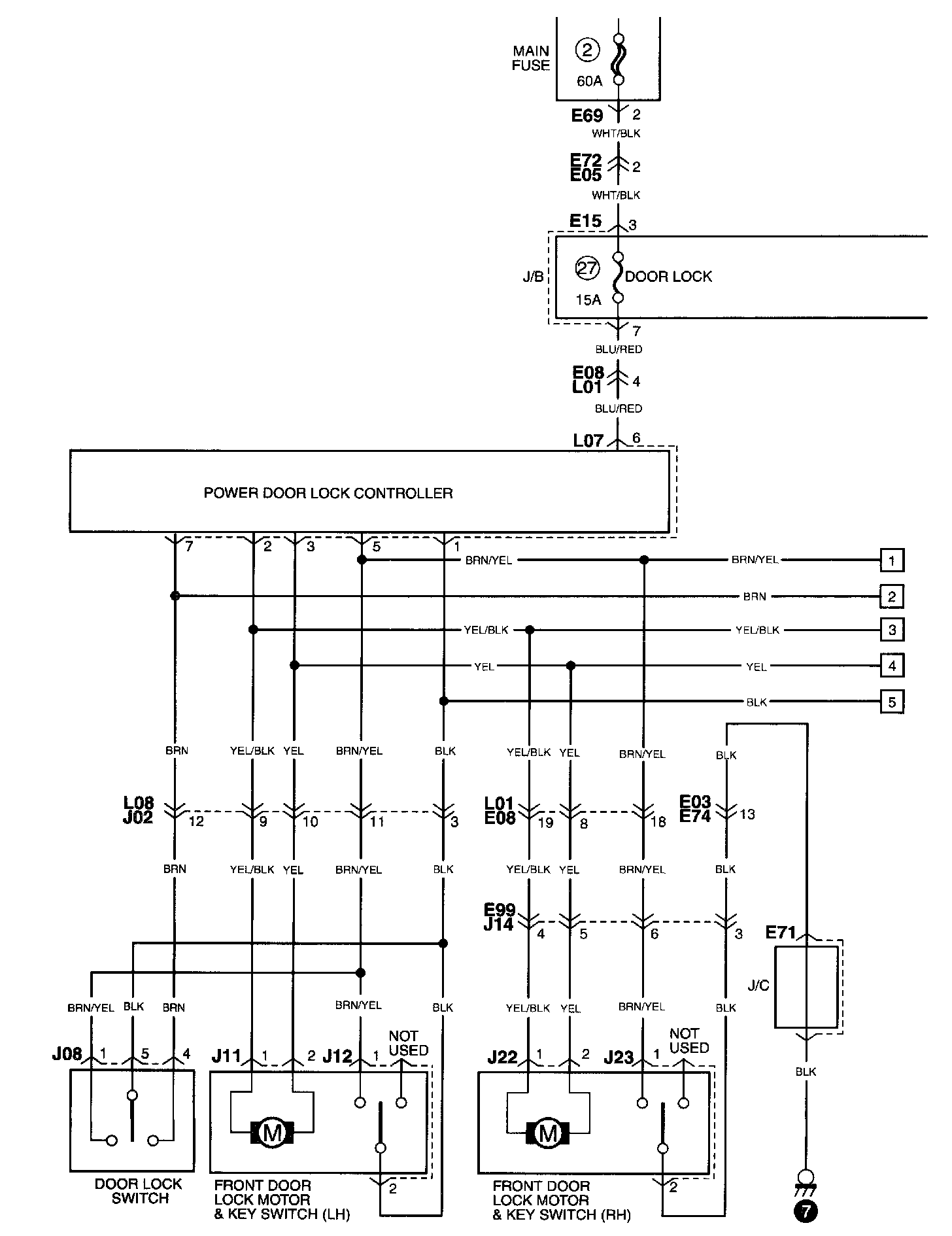

Power Door Lock Circuit Diagram Without Keyless Entry Or With The Optional Keyless Entry Part - 1:

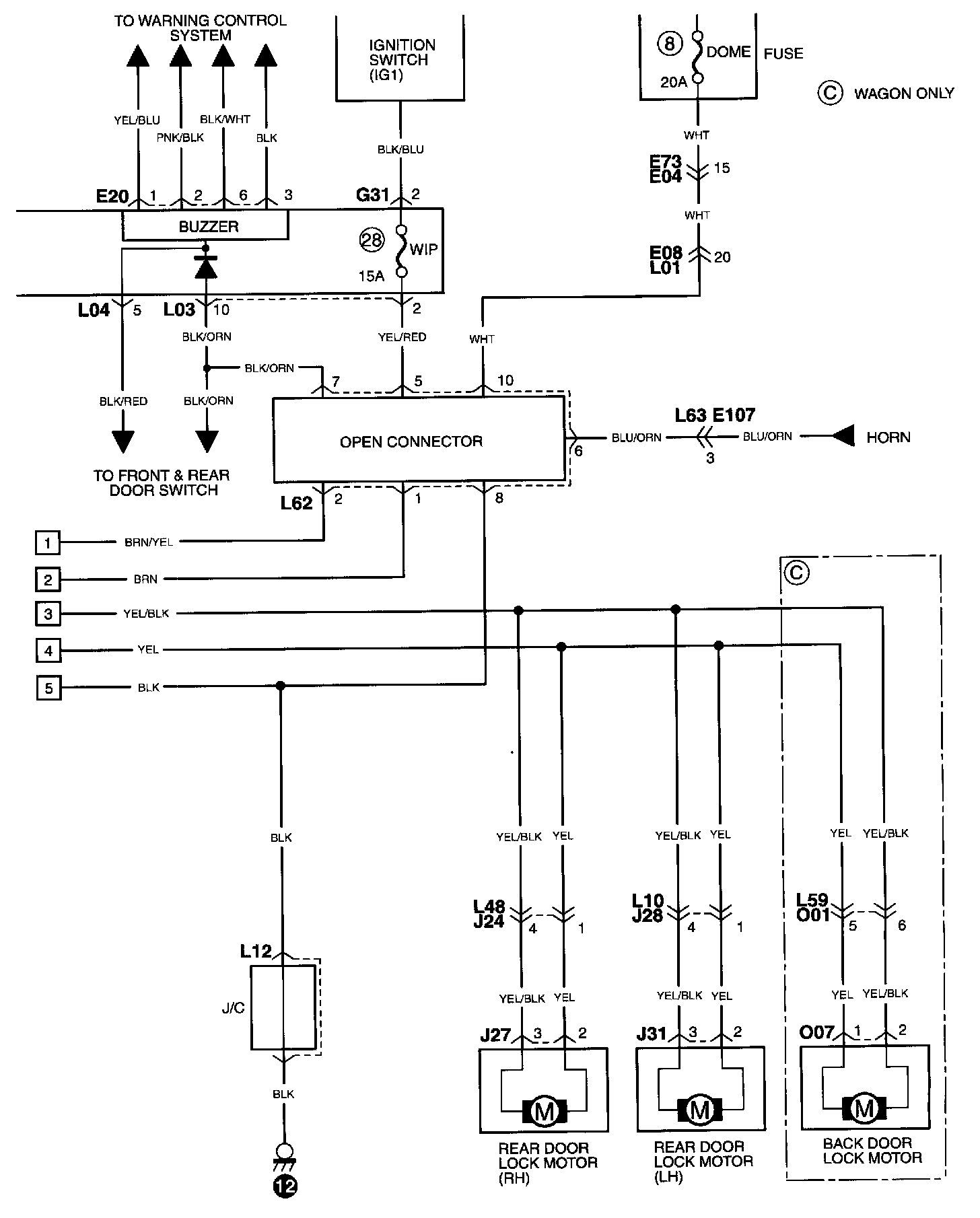

Power Door Lock Circuit Diagram Without Keyless Entry Or With The Optional Keyless Entry Part - 2:

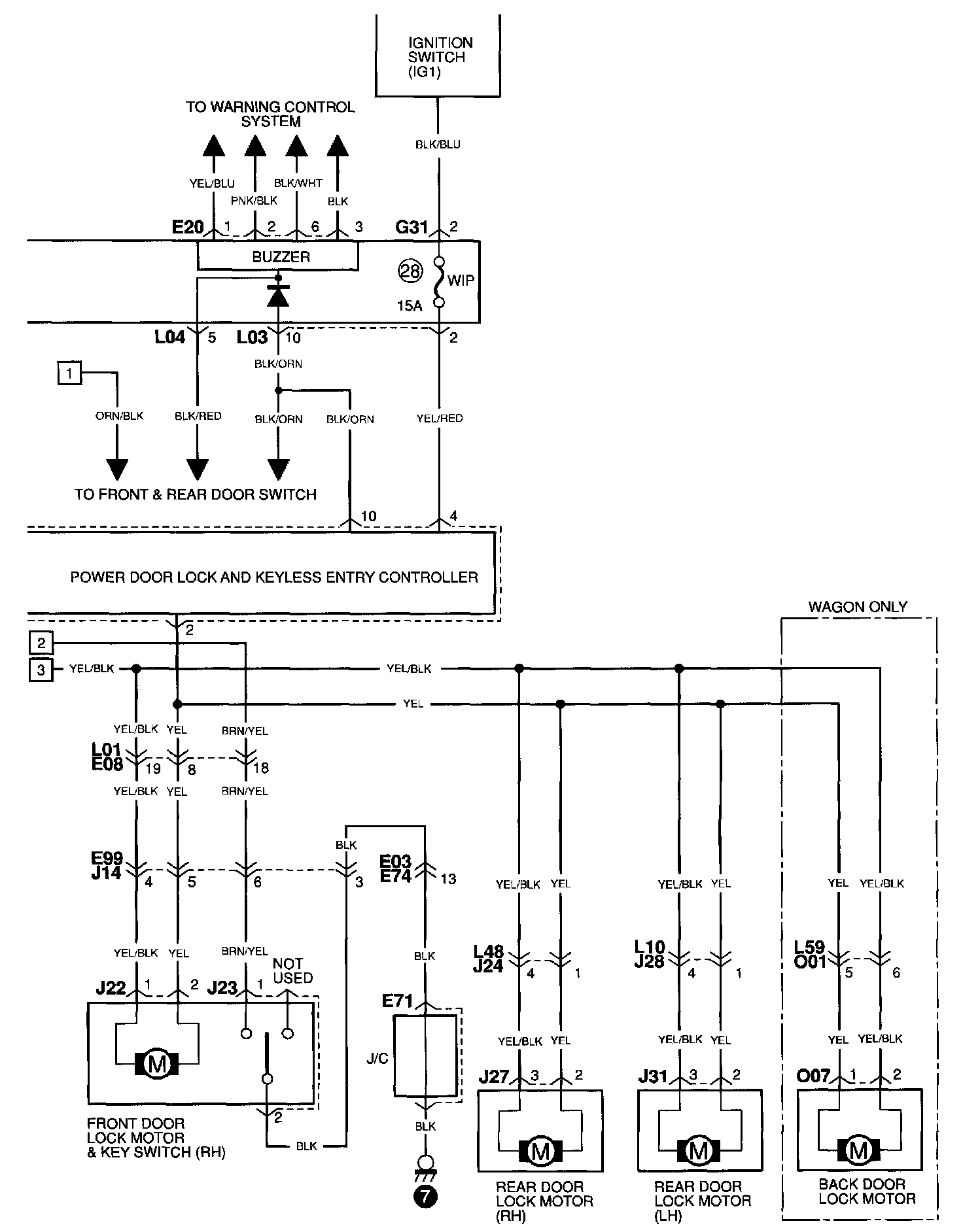

Power Door Lock Circuit Diagram With Keyless Entry As The Standard Equipment Part - 1:

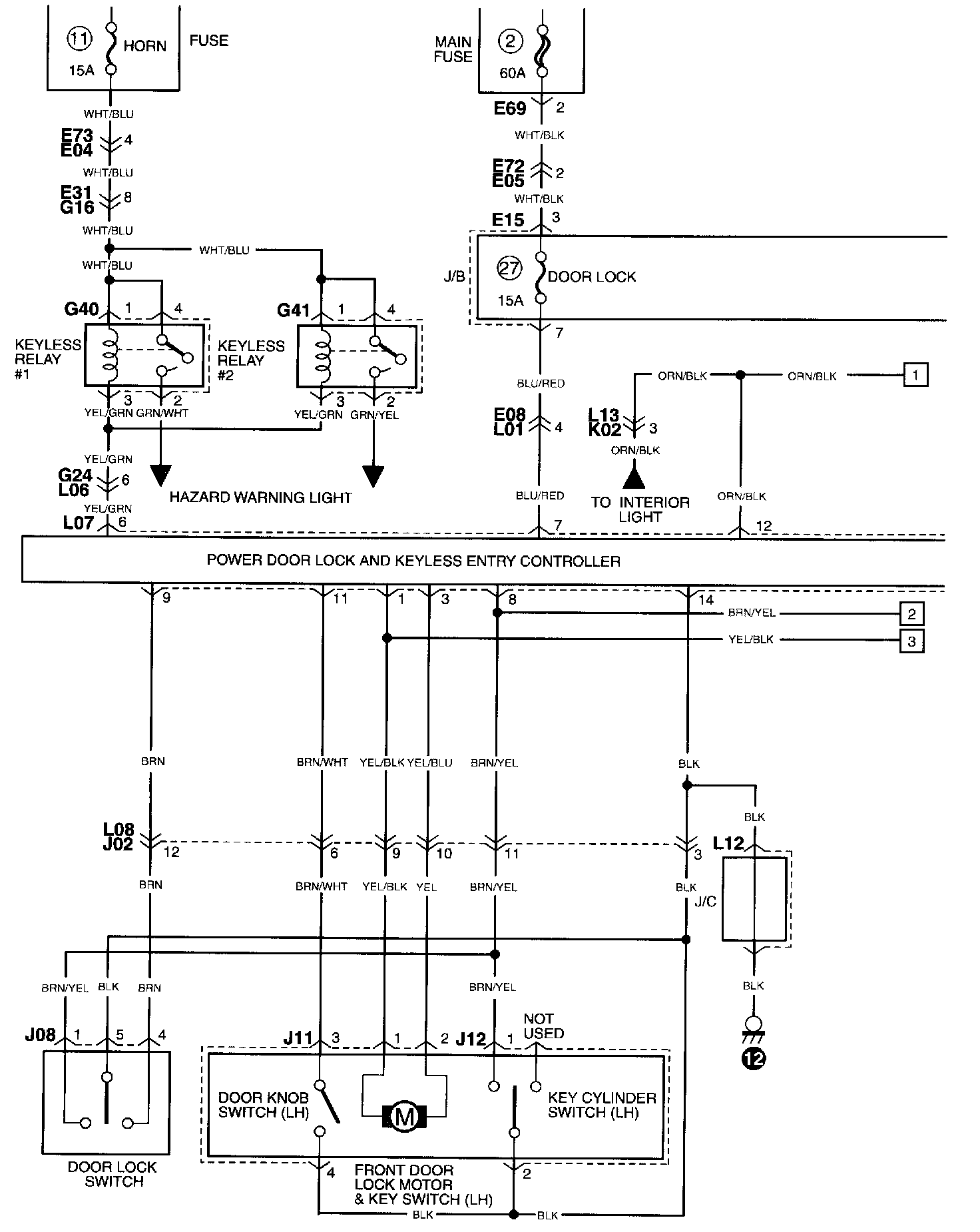

Power Door Lock Circuit Diagram With Keyless Entry As The Standard Equipment Part - 2:
