Heating and Air Conditioning

Wiring Circuit diagram:

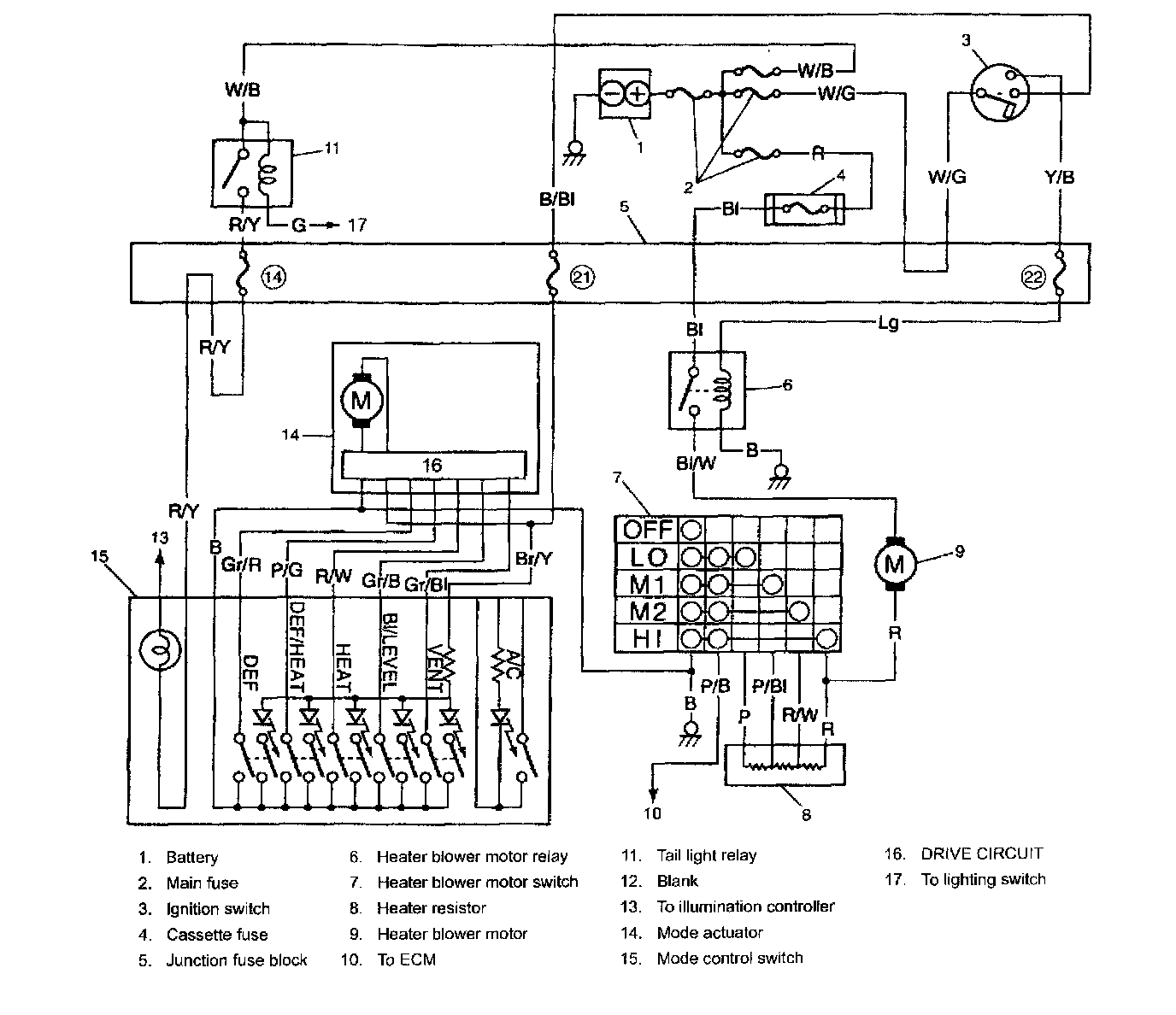

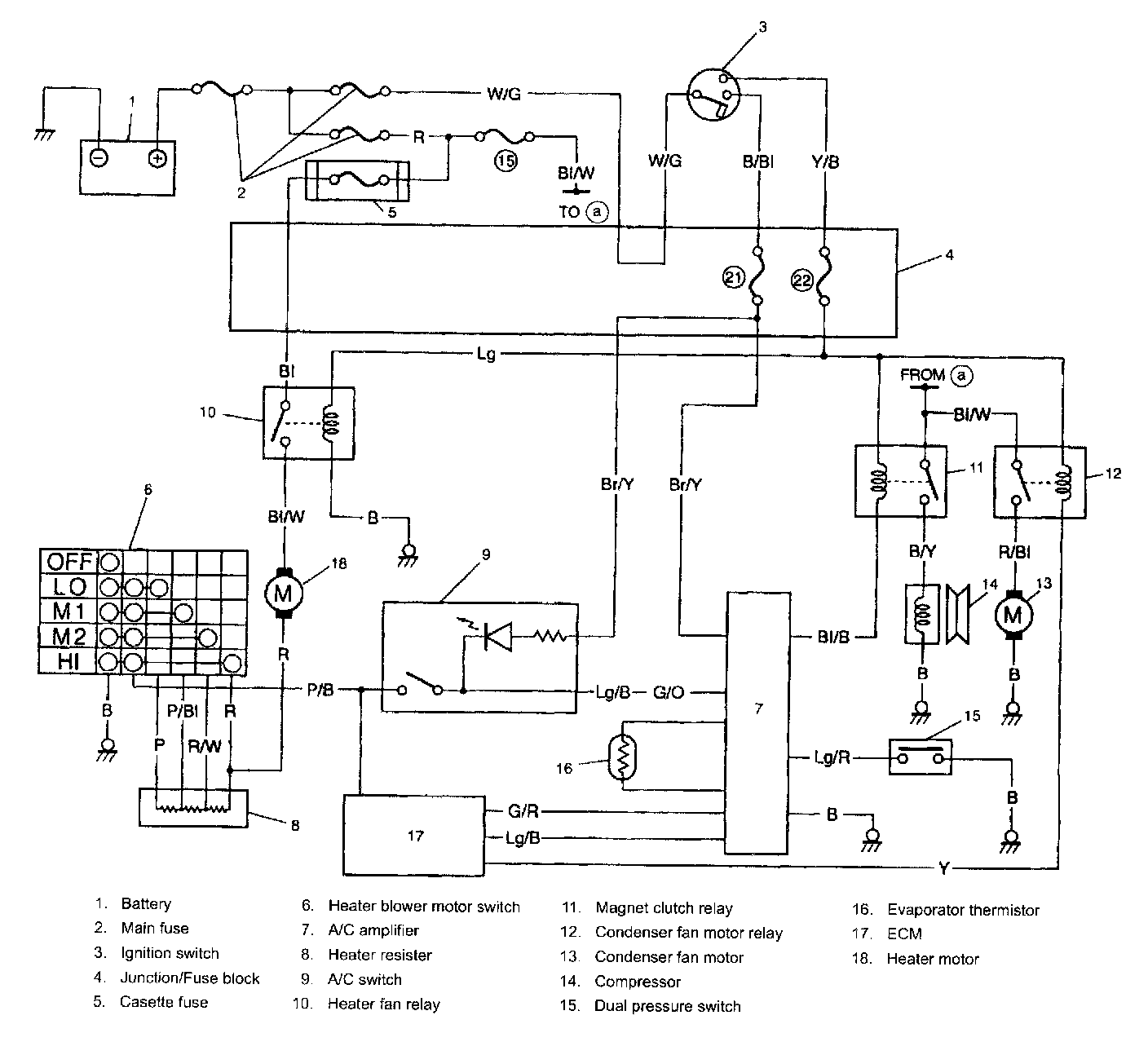

Wiring Circuit System:

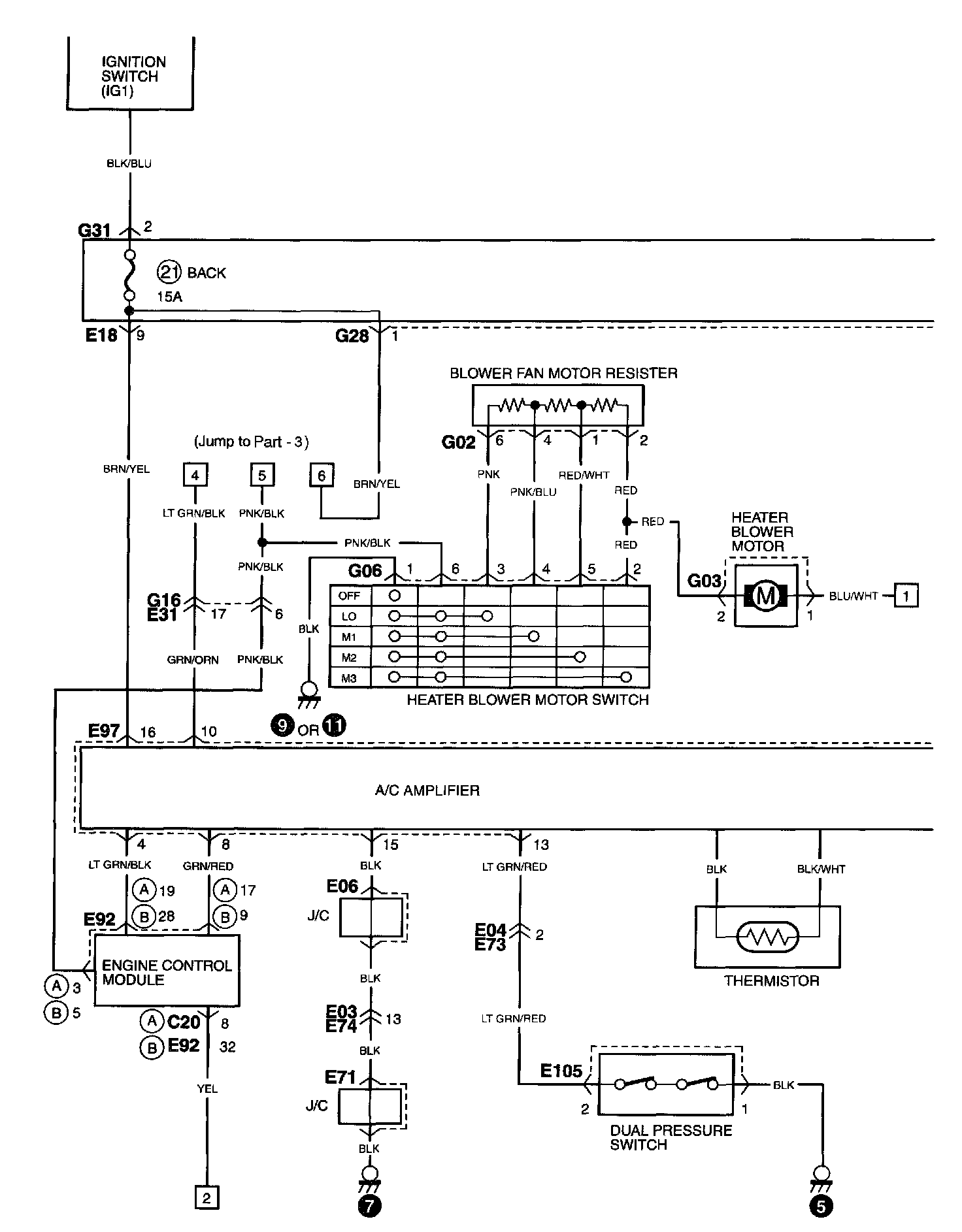

Heater Circuit Diagram Part - 1:

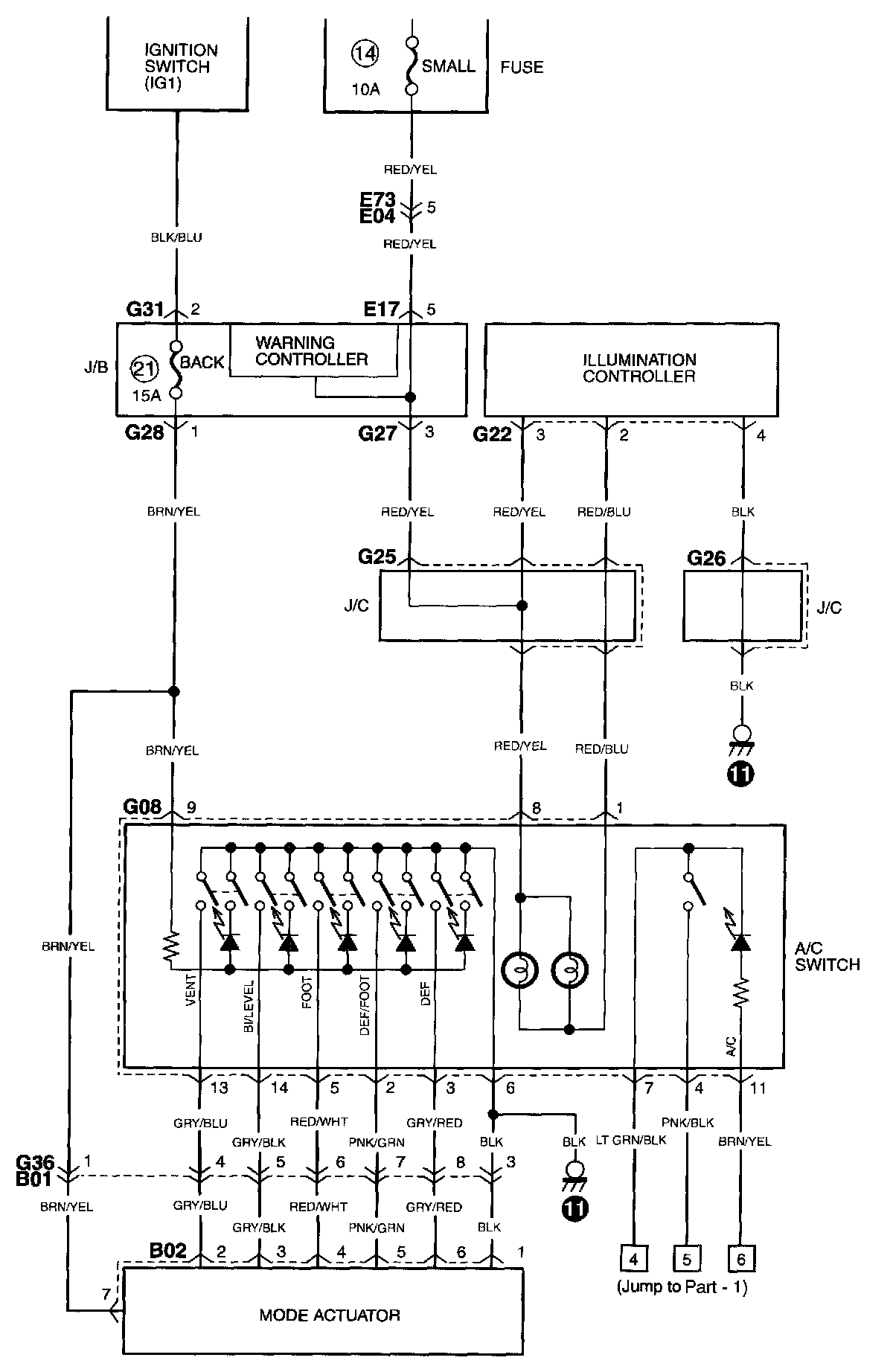

Heater Circuit Diagram Part - 2:

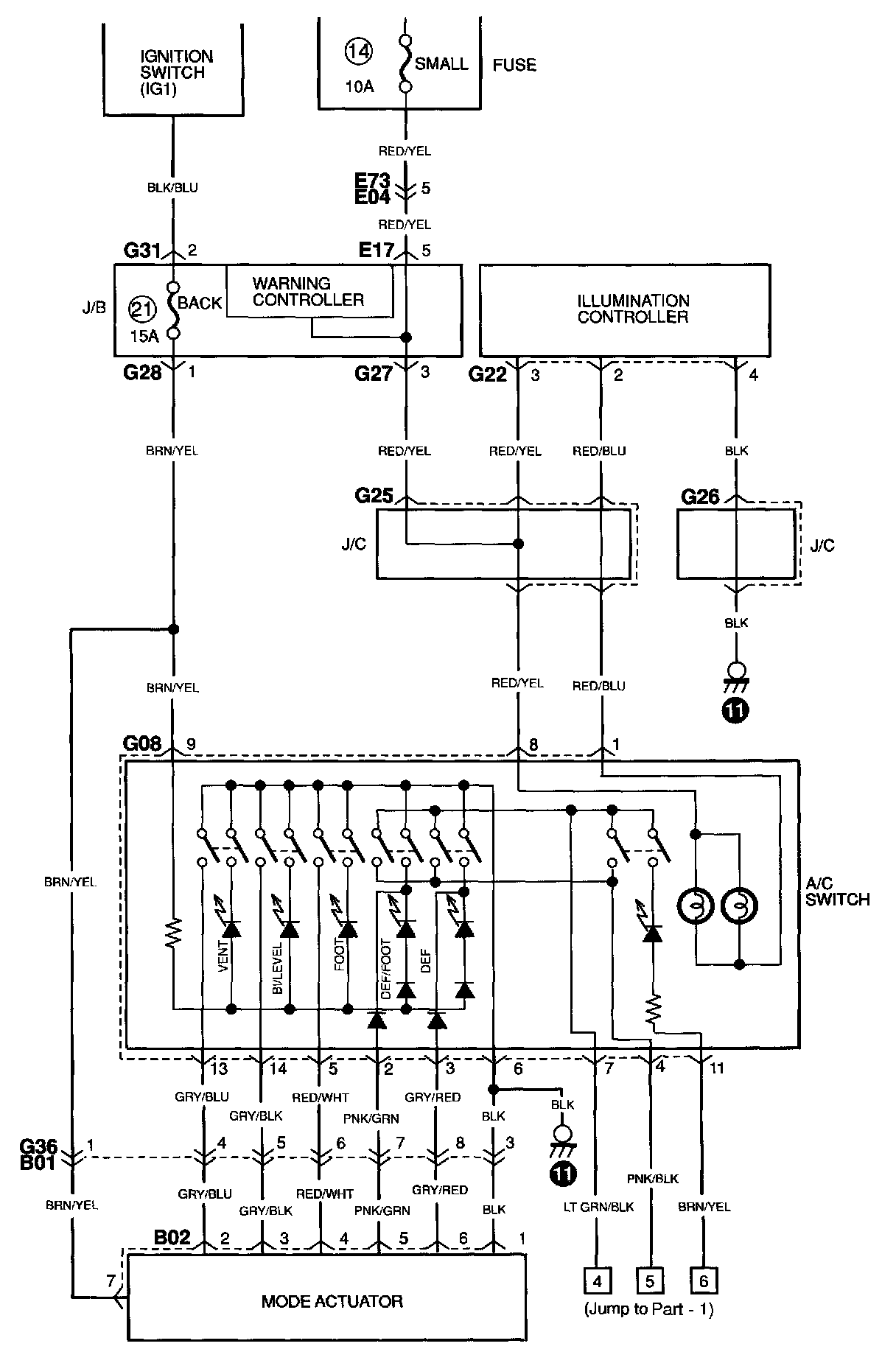

Heater Circuit Diagram Early Type:

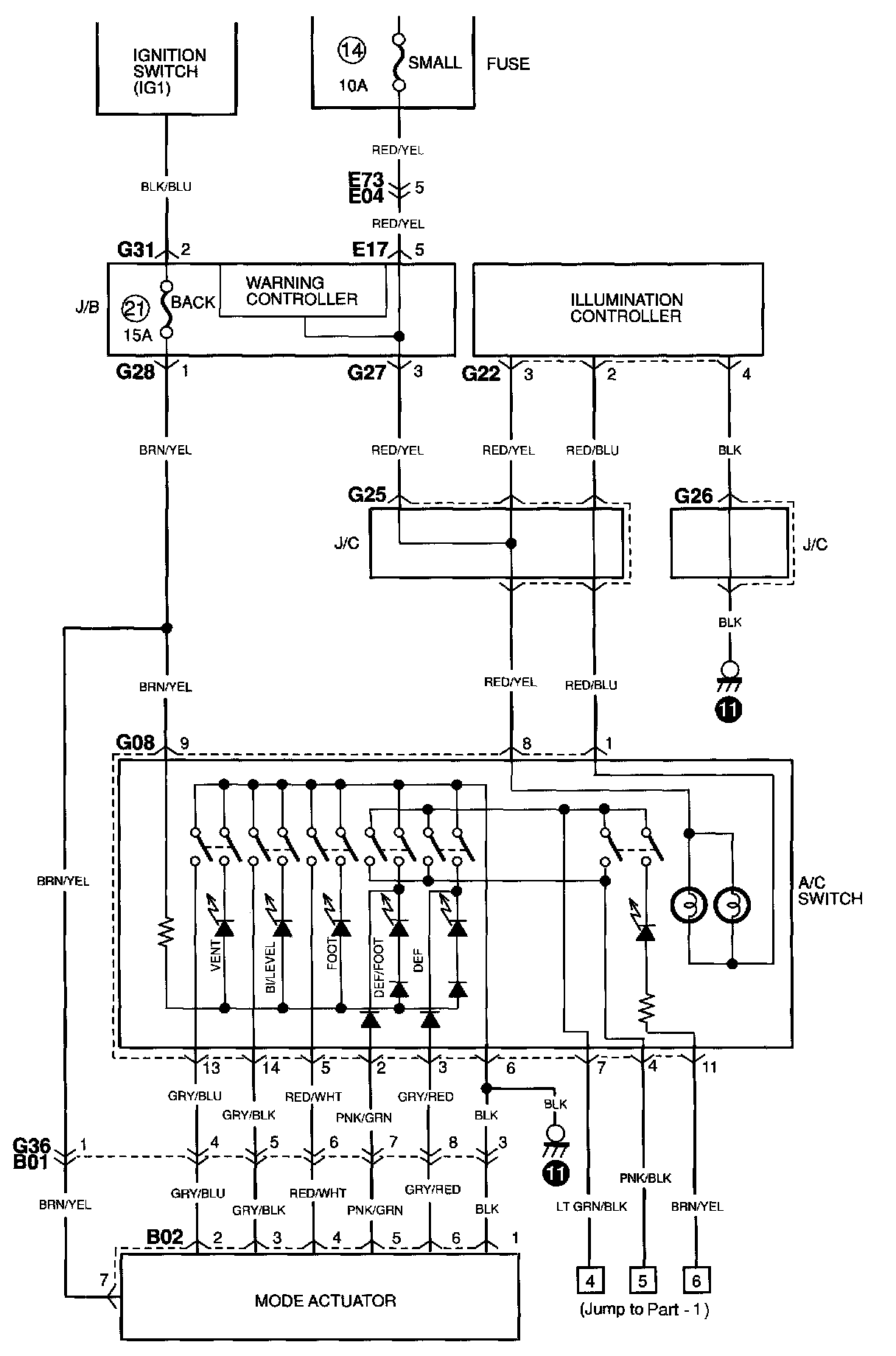

Heater Circuit Diagram Late Type:

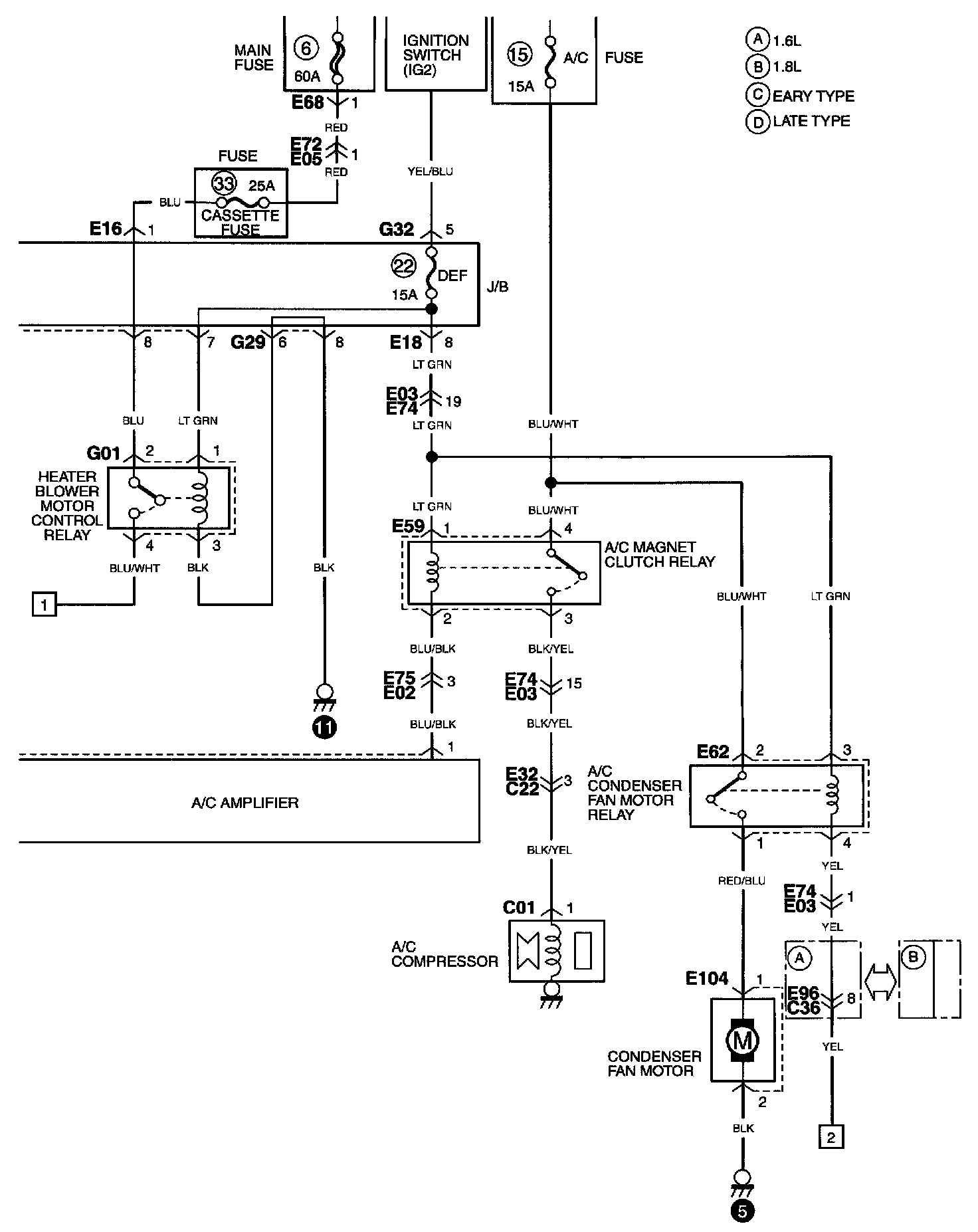

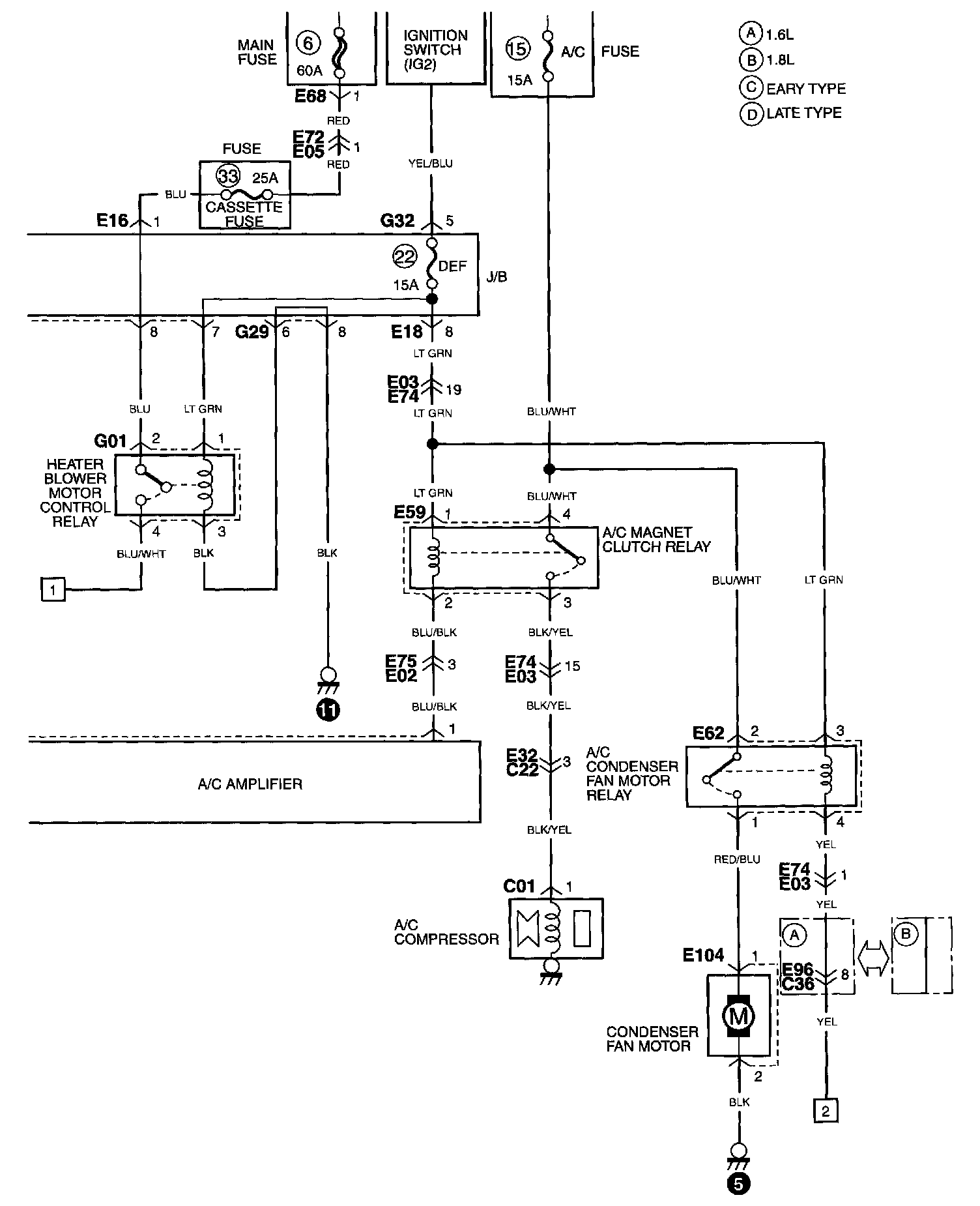

Air Conditioning Circuit Diagram Part - 1:

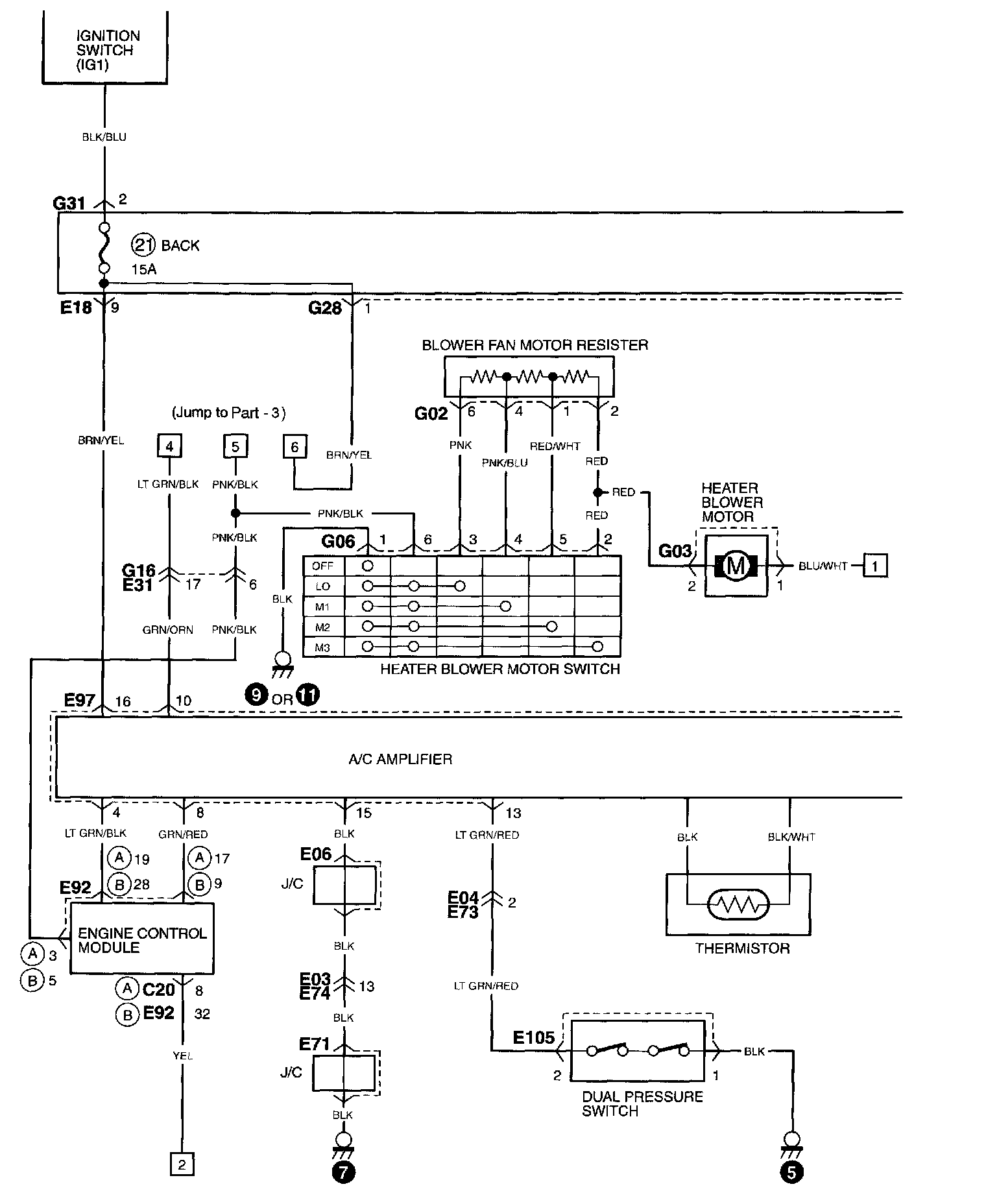

Air Conditioning Circuit Diagram Part - 2:

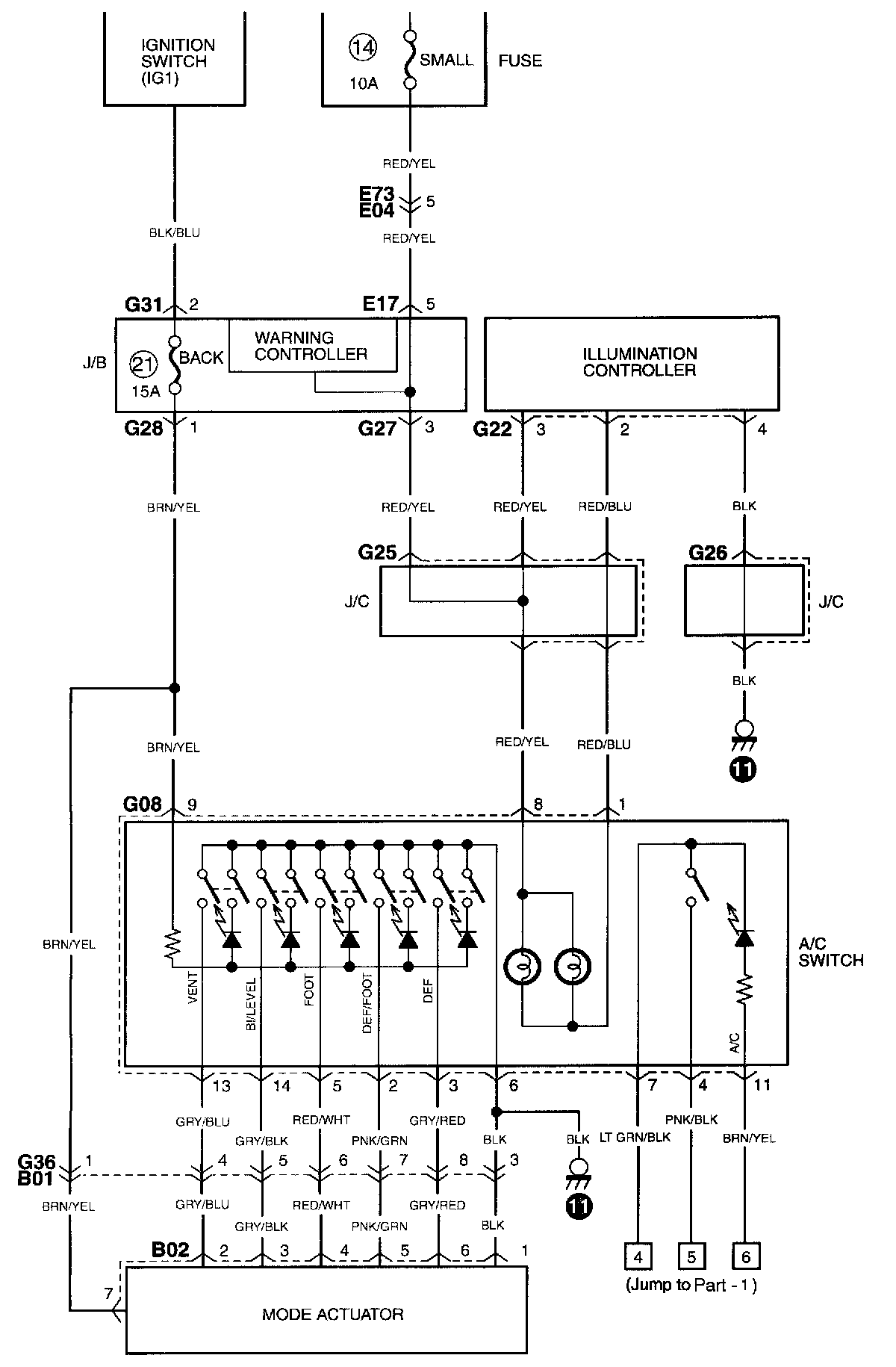

Air Conditioning Circuit Diagram Early Type:

Air Conditioning Circuit Diagram Late Type:
