Dome Lamp

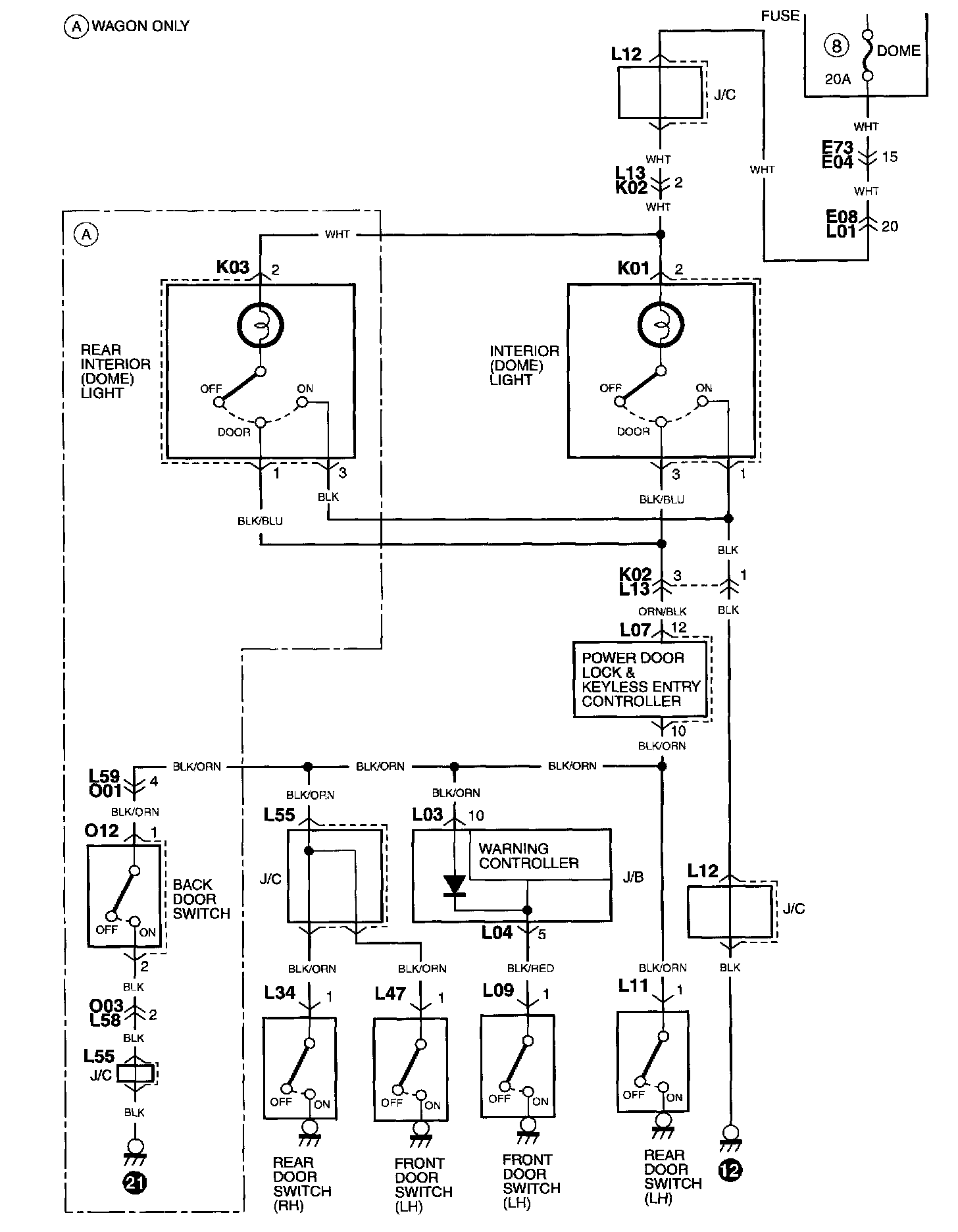

Interior Light Circuit Diagram Without Keyless Entry Or With Optional Keyless:

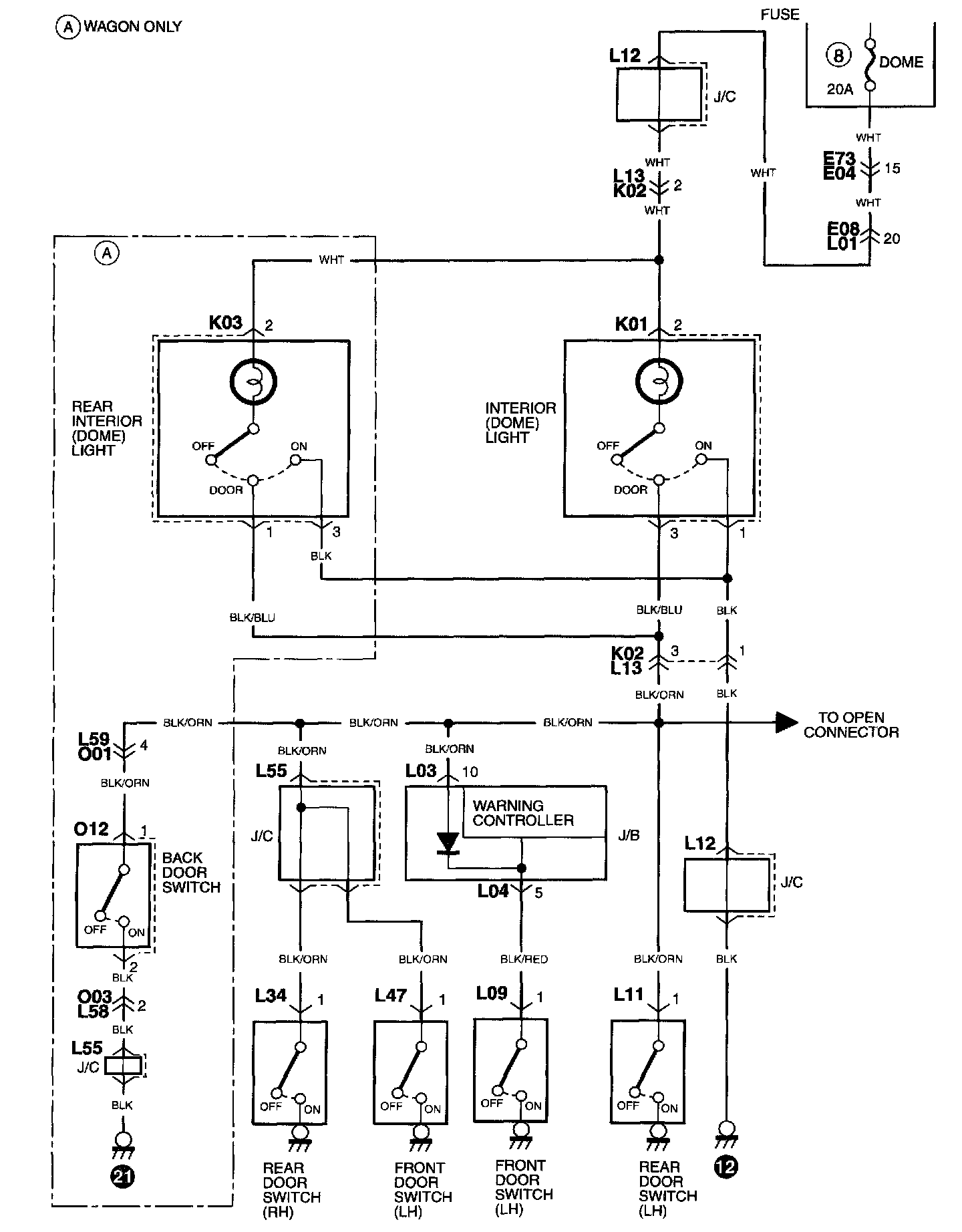

Interior Light Circuit Diagram With Keyless Entry As Standard Equipment:
