Brake Lamp
Brake Light Circuit Diagram (For Sedan) Without Cruise Control:

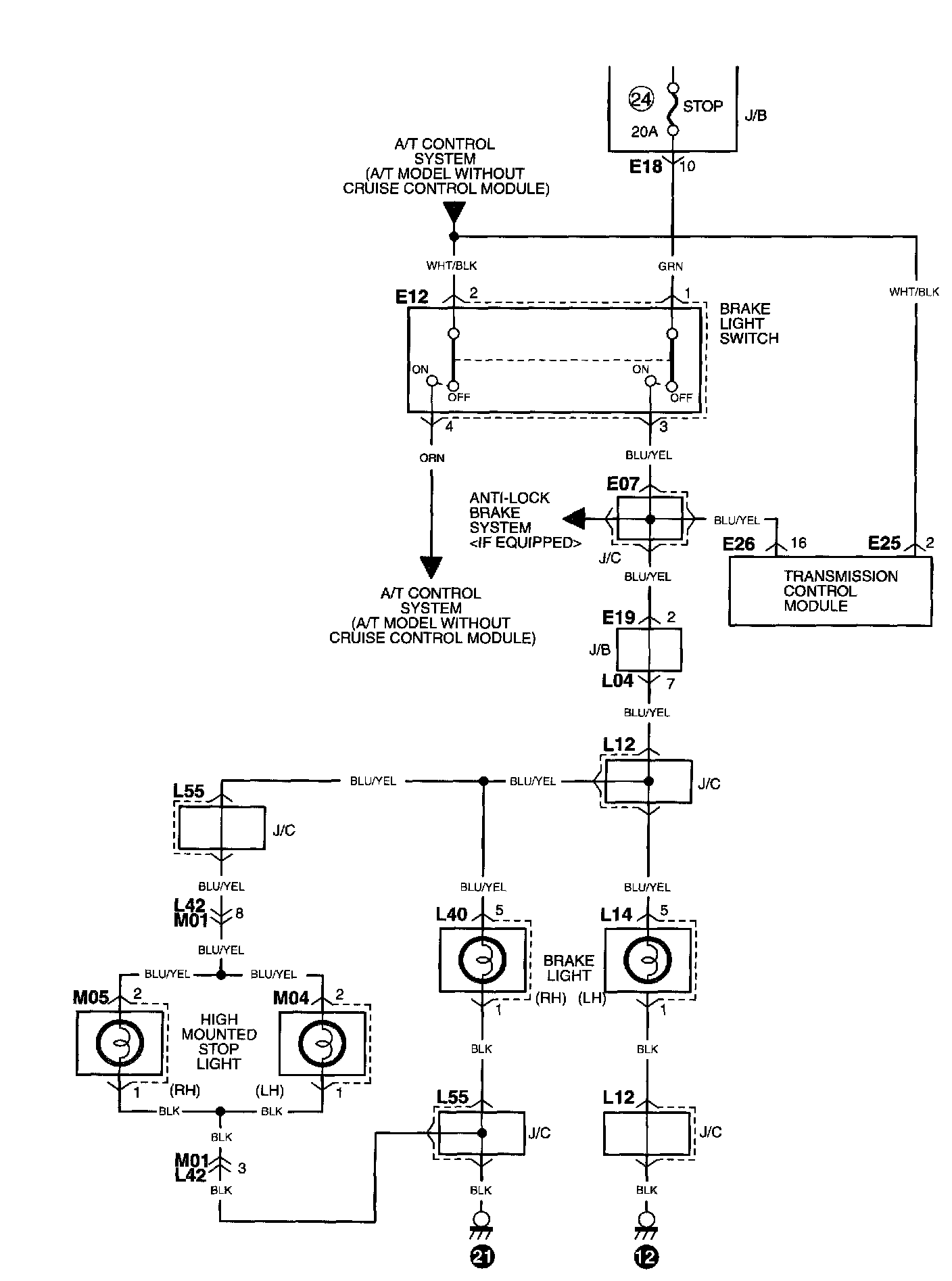

Brake Light Circuit Diagram (For Sedan) With Cruise Control:
