Automatic Transmission/Transaxle

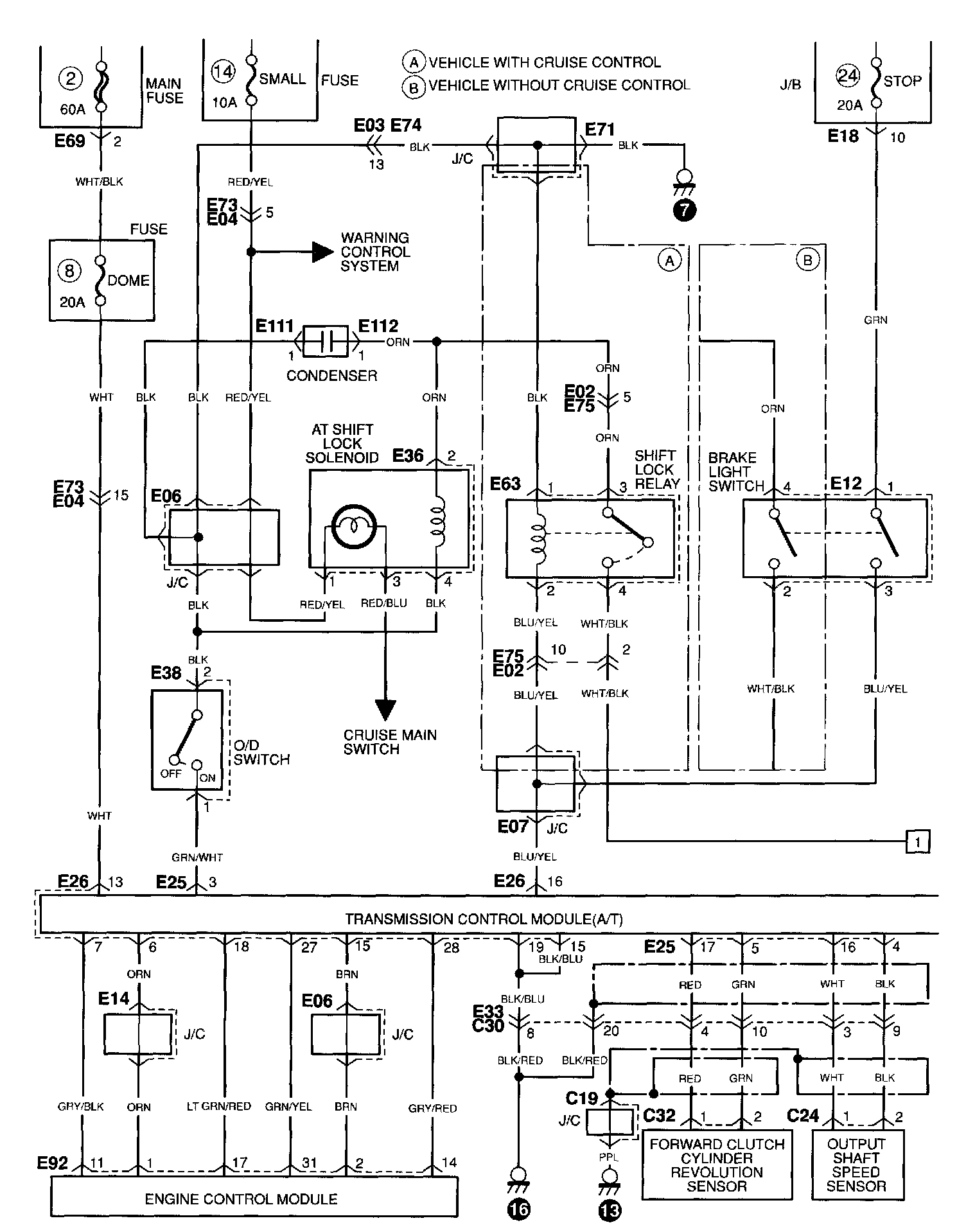

A/T Control System Circuit Diagram Part - 1:

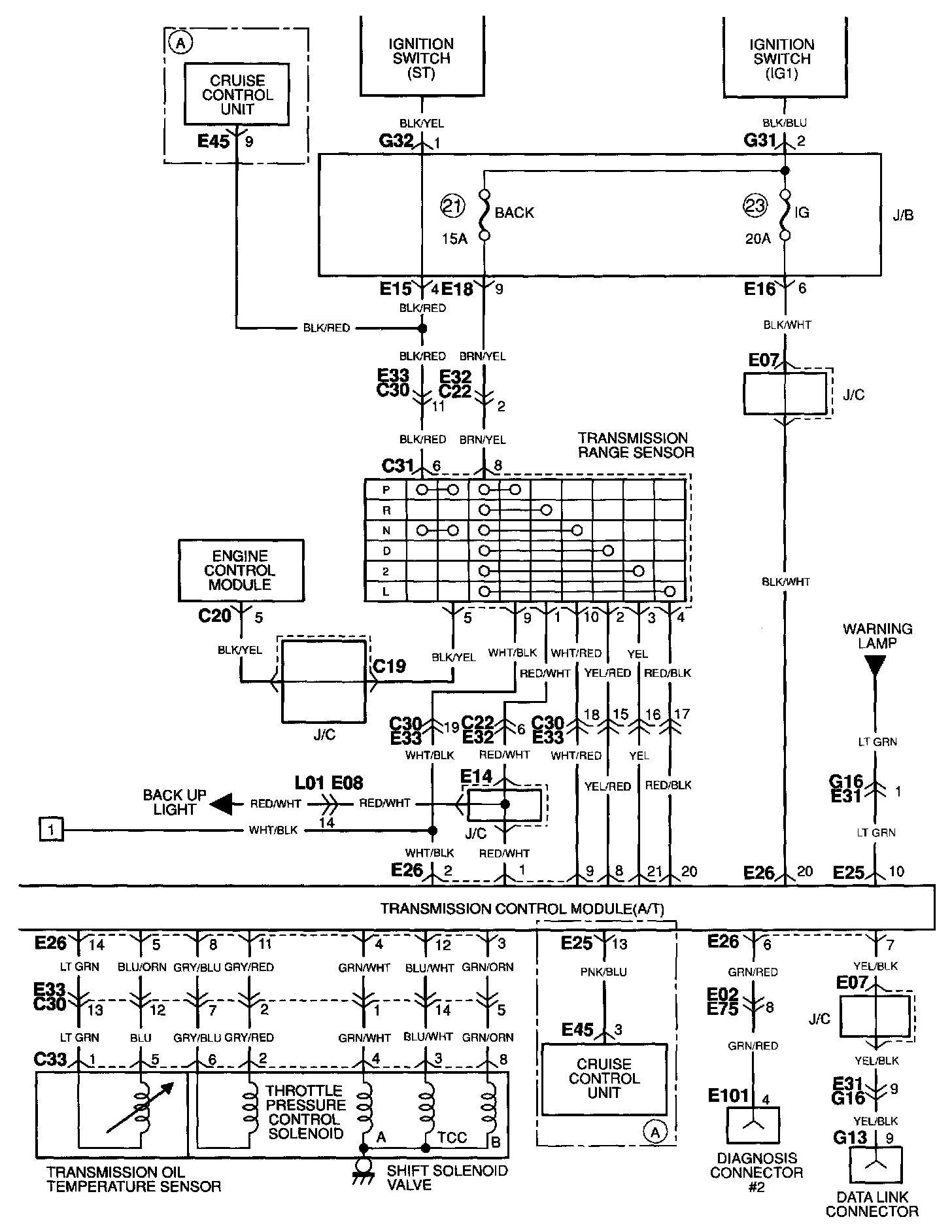

A/T Control System Circuit Diagram Part - 2:
