Lamp Flashes Continuously While Ignition Switch ON

"ABS" Warning Lamp Flashes Continuously while Ignition Switch Is ON

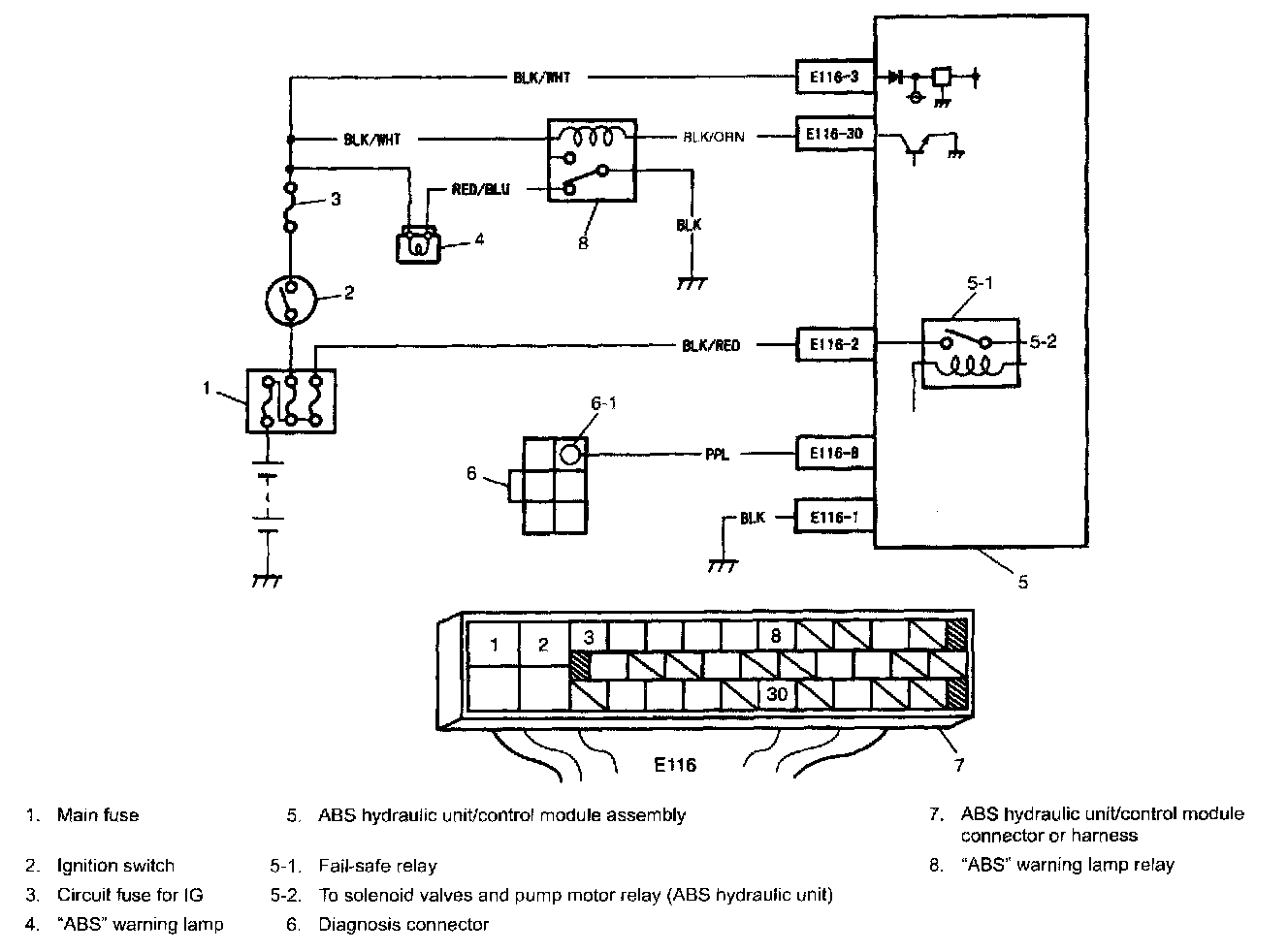

Wiring Diagram

Circuit Description
When the diagnosis switch terminal is shorted or connected to the ground with the ignition switch ON position, the DTC is indicated by flashing of the "ABS" warning lamp only in the following cases.
^ Normal DTC (12) is indicated if no malfunction DTC is detected in the ABS.
^ A history malfunction DTC is indicated by flashing of the lamp if a current malfunction DTC is not detected at that point although a history malfunction DTC is stored in memory.

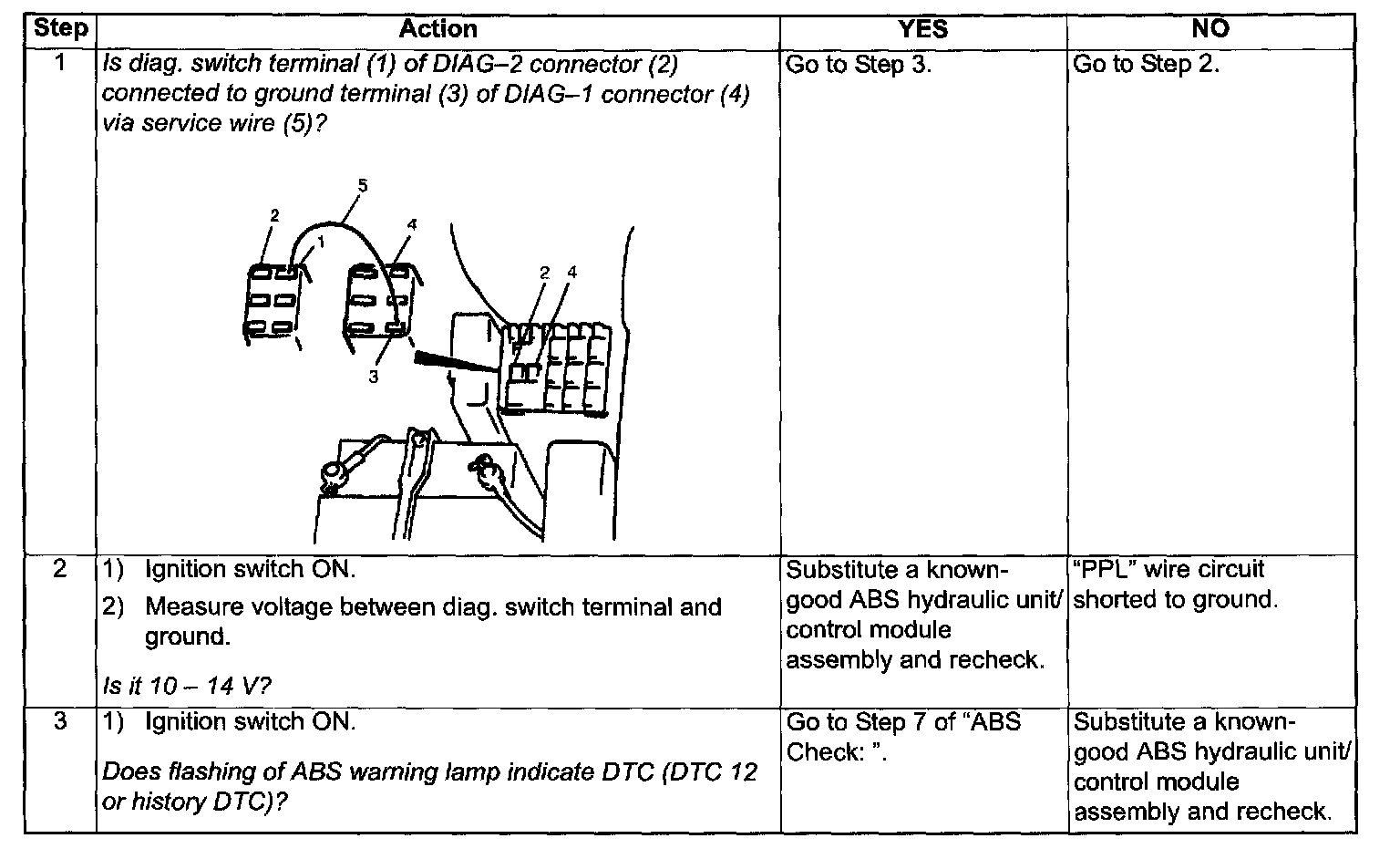

Troubleshooting
