DTC Not Outputted W/ Diagnosis Switch Connected to Ground

Code (DTC) Is Not Outputted even with Diagnosis Switch Terminal Connected to Ground

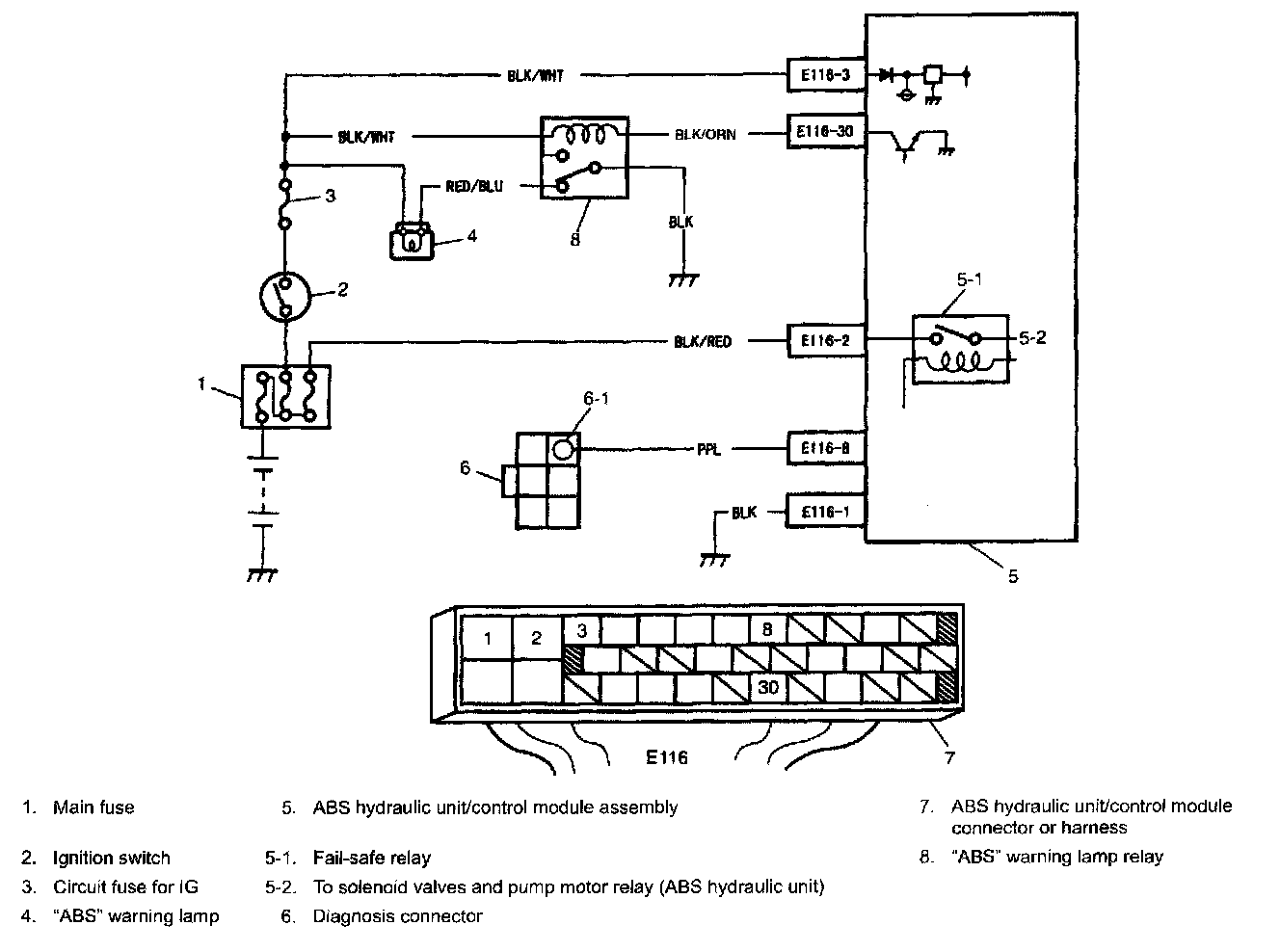

Wiring Diagram

Circuit Description
When the diag. switch terminal is connected to the ground with the ignition switch turned ON, the ABS control module outputs a DTC by flashing "ABS" warning lamp.

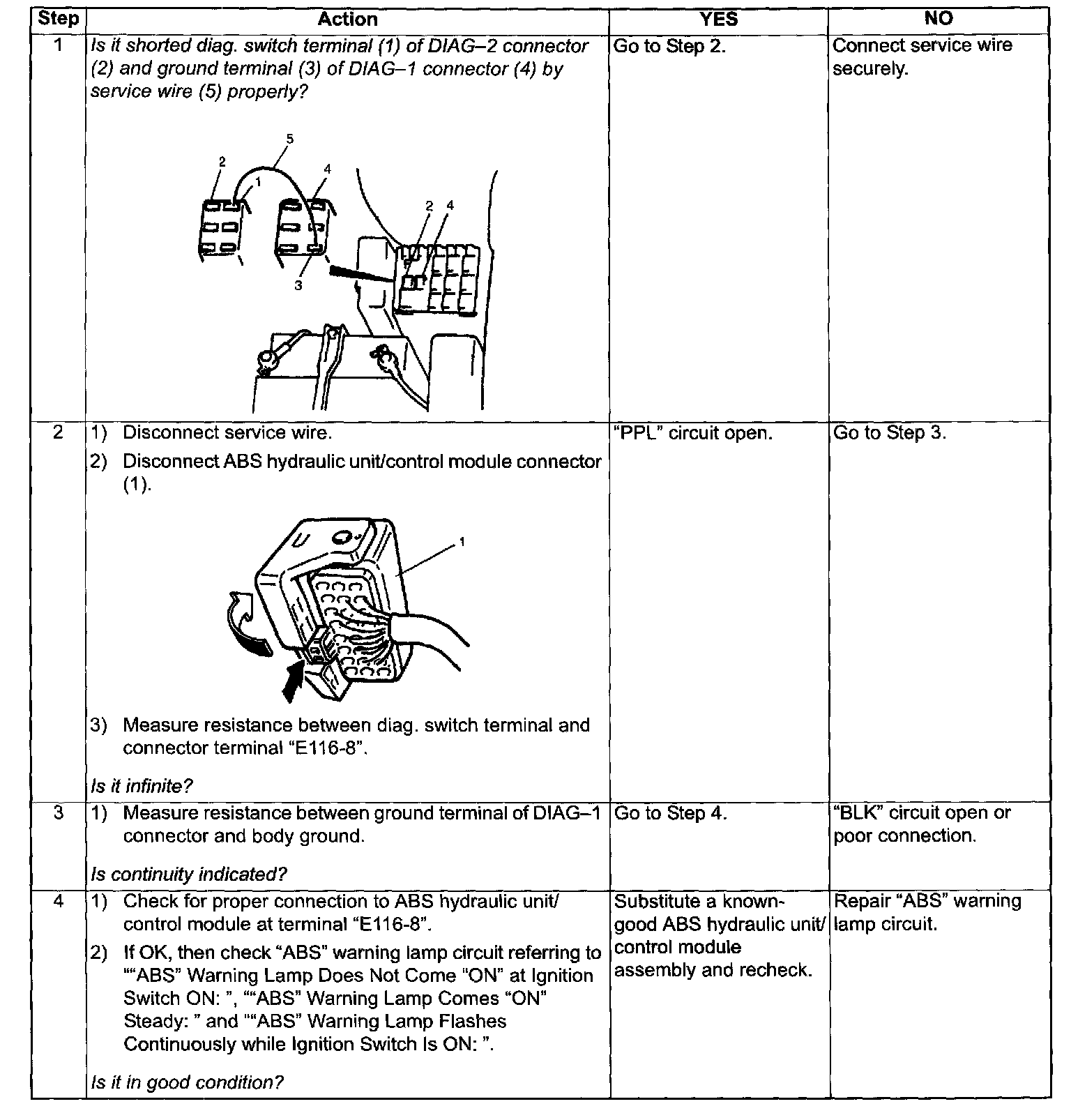

Troubleshooting
