Inspection

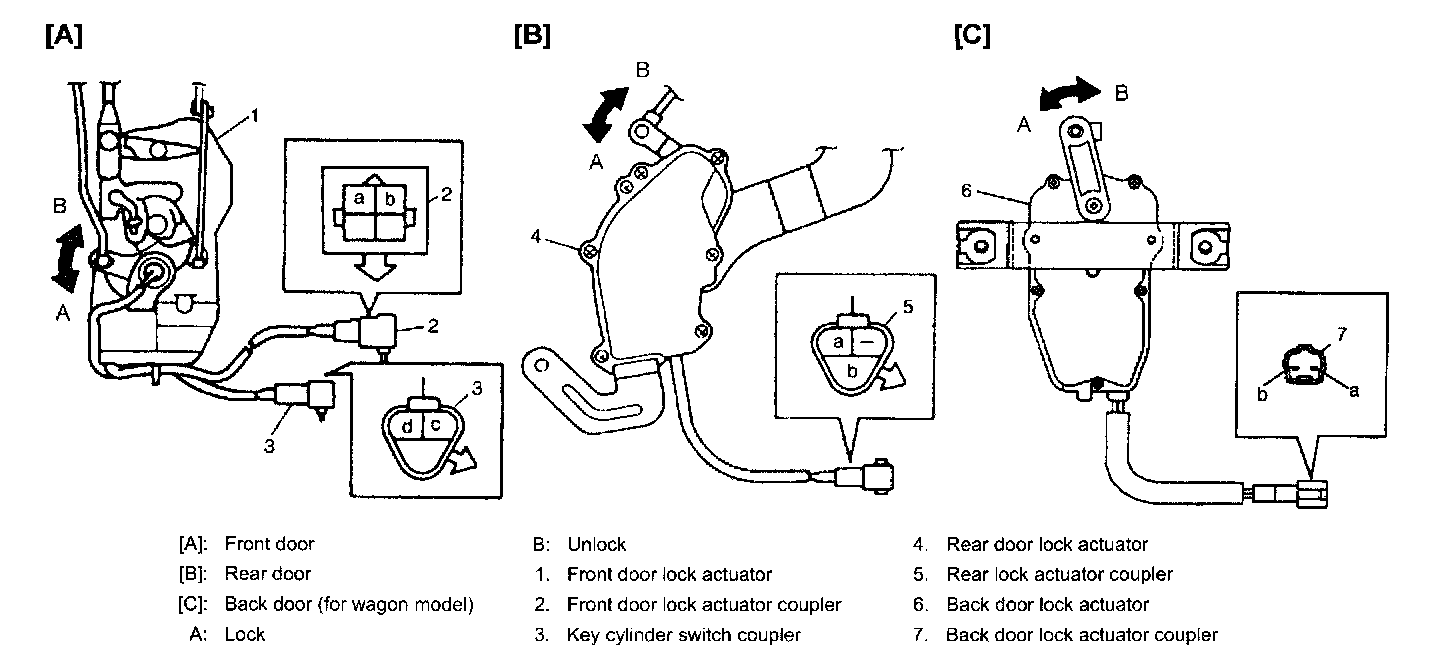

1. Disconnect power door lock actuator coupler.
2. Connect (+) cord and (-) cord of 12 V battery to coupler terminal "a" and "b".




3. Actuator is proved to be operating properly if (-) cord connection to terminal "a" results in "Lock" and its connection to terminal "b" results in "Unlock".
