P1132

DTC P1132: Manifold Differential Pressure (MDP) Sensor High Input

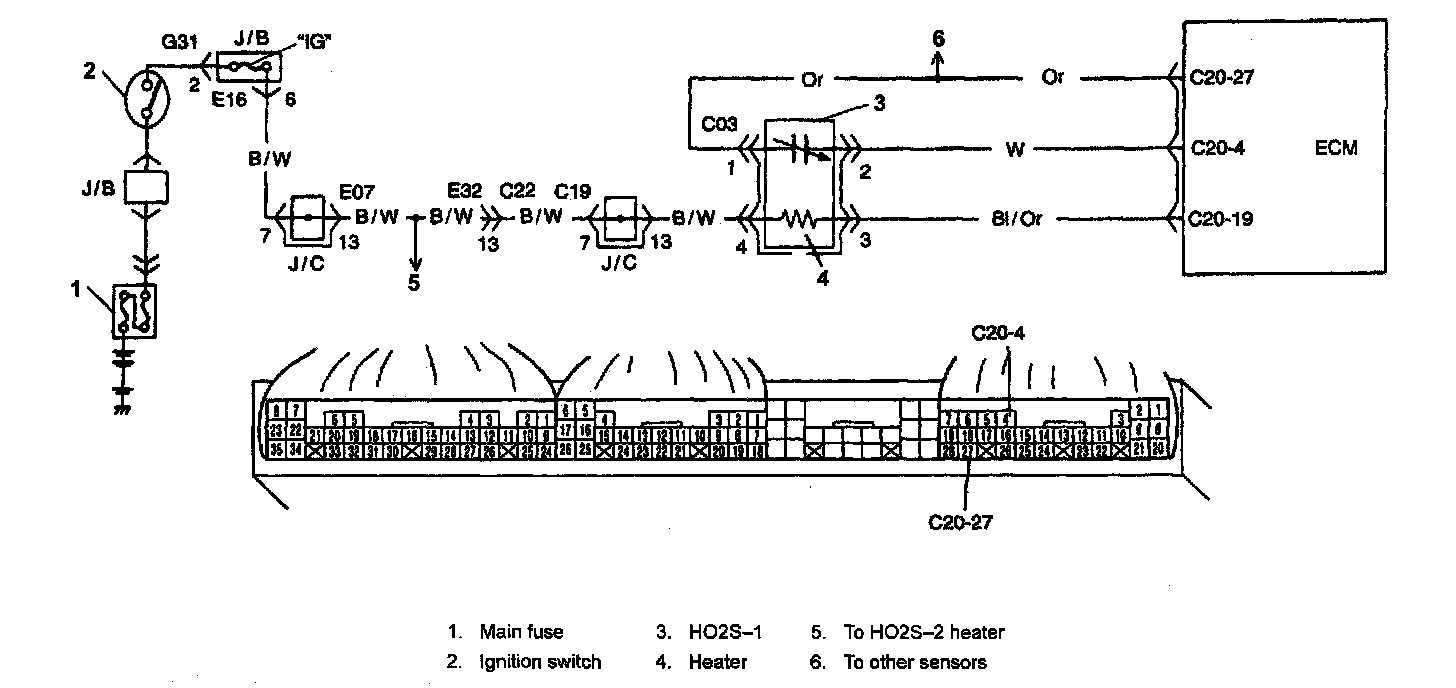

Wiring Diagram:

Wiring Diagram

Detecting Condition / Trouble Area:

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure
1. With ignition switch OFF, connect scan tool.
2. Turn ON ignition switch and clear DTC using scan tool.
3. Start engine and run engine at idle speed for 5 min.
4. Check DTC and pending DTC.

Steps 1 - 2:

DTC Troubleshooting
